Suspension

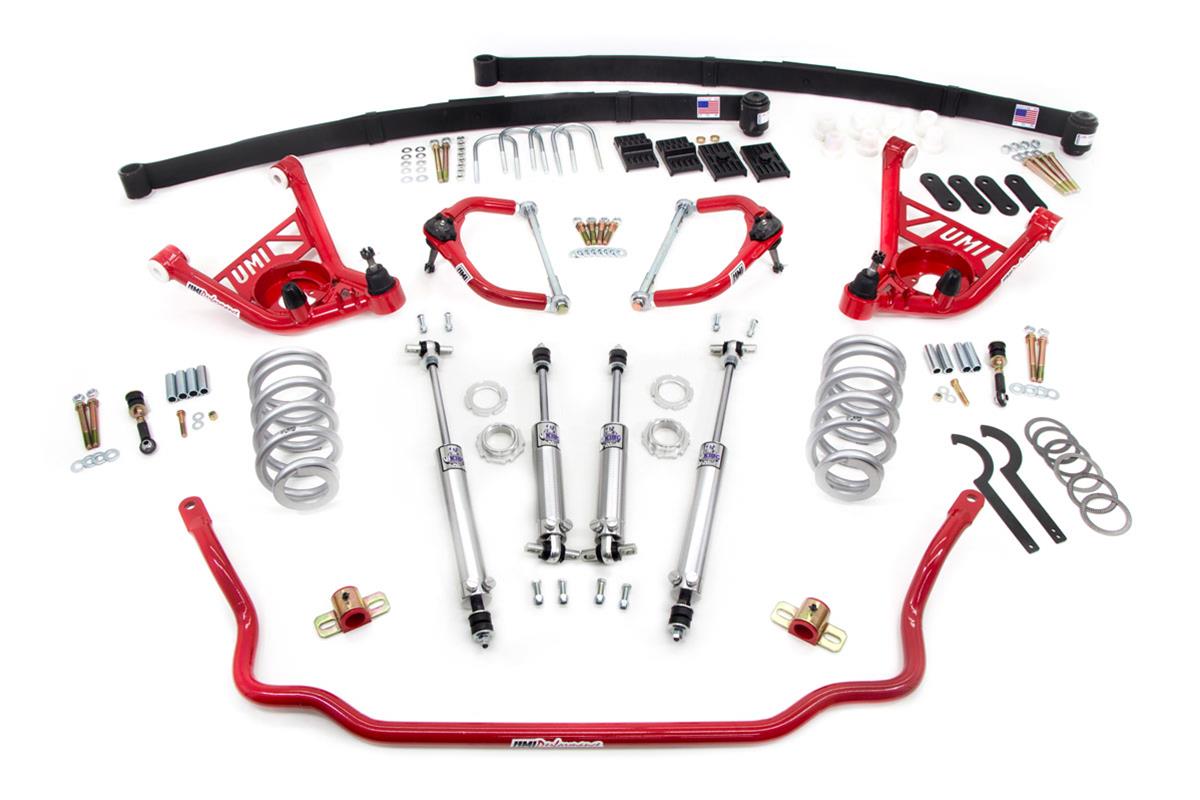

UMI Performance Stage 3.5 Handling Kits FBF035-R
€1,638.52
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,727.52 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
FBF035-R is UMI's Stage 3.5 package built for A-Body muscle cars, pairing a 1" front lowering spring with a 1.313" front sway bar, the largest diameter in this lineup, and a tubular, adjustable rear sway bar. Front shocks are RideTech HQ adjustable coilovers, while the rear runs a gas-charged adjustable monotube shock instead of a matching coilover.
What's in the kit
Front control arms and the rear lower control arm are tubular steel on Delrin bushings, and the rear upper control arm adds a roto-joint for adjustability, with tubular frame braces and Grade 8 hardware rounding out the package. UMI's notes pair 650 lbs. front coilover springs with a 2 in. drop, 175 lbs. rear leaf spring, so the front and rear ends are tuned differently by design.
Common questions
Does the rear keep leaf springs? Yes, this kit pairs a front coilover conversion with a rear leaf spring rated for a 2 in. drop.
Is the rear sway bar adjustable? Yes, UMI lists it as a tubular, adjustable rear sway bar.
Specifications
| Feature | Details |
|---|---|
| MFG. Part # | FBF035-R |
| Brand | UMI Performance |
| Vehicle Compatibility | A-Body Muscle Cars |
| Lowering Springs | Yes (1″ drop) |
| Front Shocks Included | Yes (RideTech HQ Adjustable Coilovers) |
| Rear Shocks Included | Yes (Gas-Charged Adjustable Monotube) |
| Front Sway Bar Diameter | 1.313″ (33.34mm) |
| Rear Sway Bar Included | Yes (Tubular, Adjustable) |
| Front & Rear Control Arms | Tubular Steel with Delrin Bushings |
| Frame Braces | Yes (Tubular, with Hardware) |
| Adjustable Upper Control Arms | Yes (Rear, Roto-Joint) |
| Lower Control Arms | Yes (Rear, Tubular) |
| Bushing Material | Delrin & Roto-Joint |
| Hardware Included | Yes (Grade 8) |
| Installation Type | Direct Bolt-On |
| Quantity | Sold as a Kit |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
