Suspension
RideTech RidePro E5 Air Ride Suspension Control Dual Compressor Systems 30534100
€1,414.12
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,503.12 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
The dual-compressor version of RideTech's RidePro E5 doubles up on Thomas compressors and steps up to a 5-gallon aluminum tank, aimed at heavier vehicles; RideTech lists it for vehicles over 3,500 pounds, where a single compressor would take longer to recover pressure. Each compressor is rated at 19.6 amps and 0.50 CFM at a 150 PSI maximum.
What it does
A 3.5-inch full-color touchscreen and a Bluetooth smartphone app both control ride height, with three ride-height presets stored for quick recall, and the system self-levels to compensate for load changes automatically once set up.
What comes with it

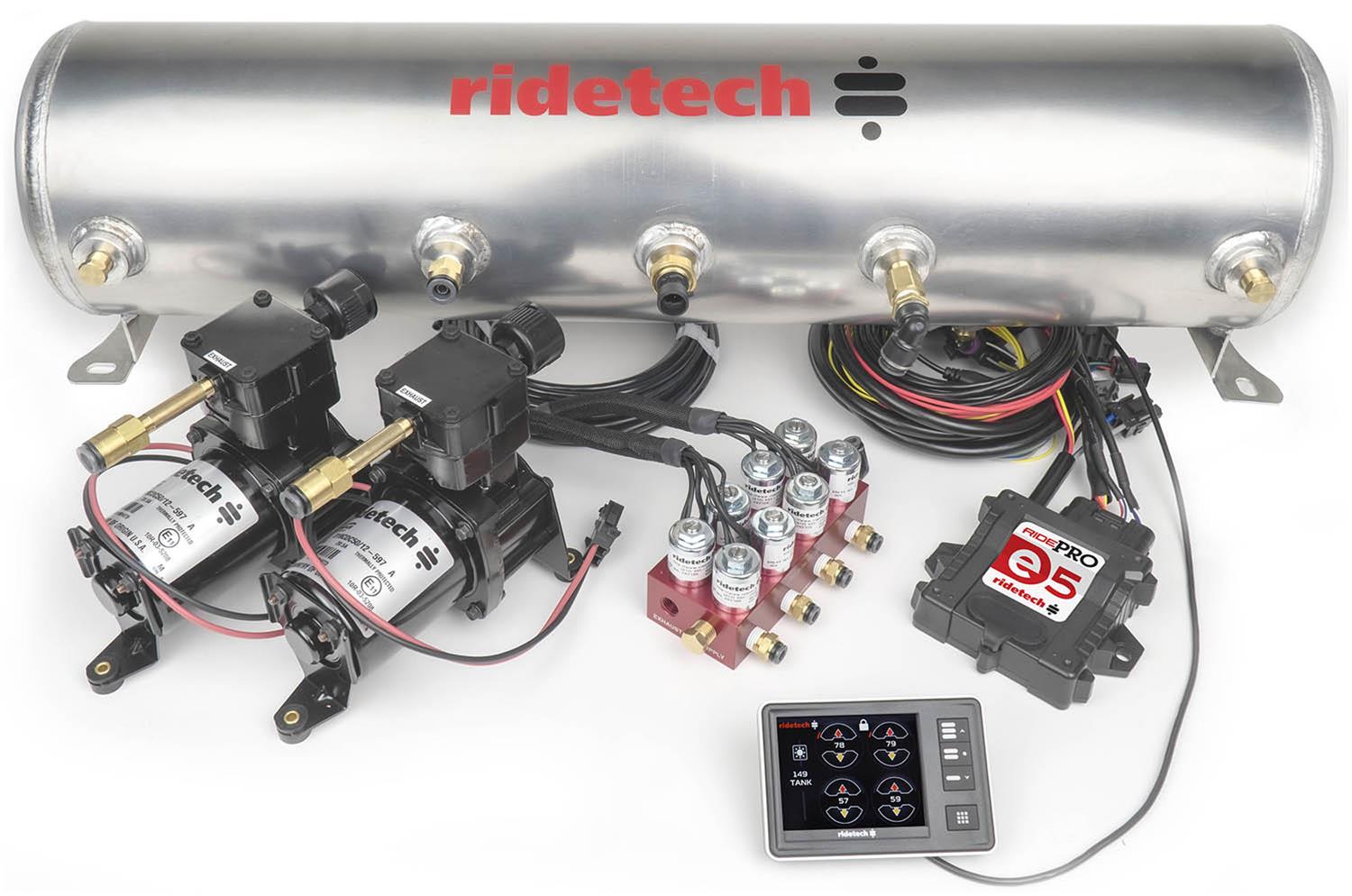

Both compressors, the 5-gallon tank, 1/4-inch air lines and fittings, and a complete pre-wired harness ship as one package, with weatherproof connectors on the control module for durability. Installation bolts in without fabrication.
Before you order
Confirm your air suspension setup and vehicle weight match this dual-compressor system rather than the lighter single-compressor AirPod, since the extra compressor and larger tank add weight a lighter vehicle may not need.
How many ride-height presets does it store? Three, recalled from either the touchscreen or the app.
Is this the single or dual compressor version? Dual; two Thomas compressors feed the 5-gallon tank.
Specifications
| Feature | Details |
|---|---|
| Brand | RideTech |
| MFG. Part # | 30534100 |
| Product Type | Air Ride Suspension Control System |
| Dash Panel Included? | Yes, 3.5” Full-Color Touchscreen |
| Bluetooth Connectivity? | Yes, Wireless App Control |
| Tank Capacity | 5 Gallons, Aluminum |
| Compressor Type | Dual Thomas Compressors |
| Max Pressure (PSI) | 150 PSI |
| CFM Output | 0.50 @ 150 PSI |
| Voltage | 12V DC |
| Amps per Compressor | 19.6A |
| Self-Leveling Feature? | Yes |
| Air Lines Included? | Yes, 1/4″ |
| Wiring Harness Included? | Yes, Pre-Wired |
| Installation | Bolt-On, No Fabrication Required |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
