Suspension
RideTech RidePro E5 Air Ride Suspension Control AirPod Single Compressor Systems 30514000
€1,325.06
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,414.06 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

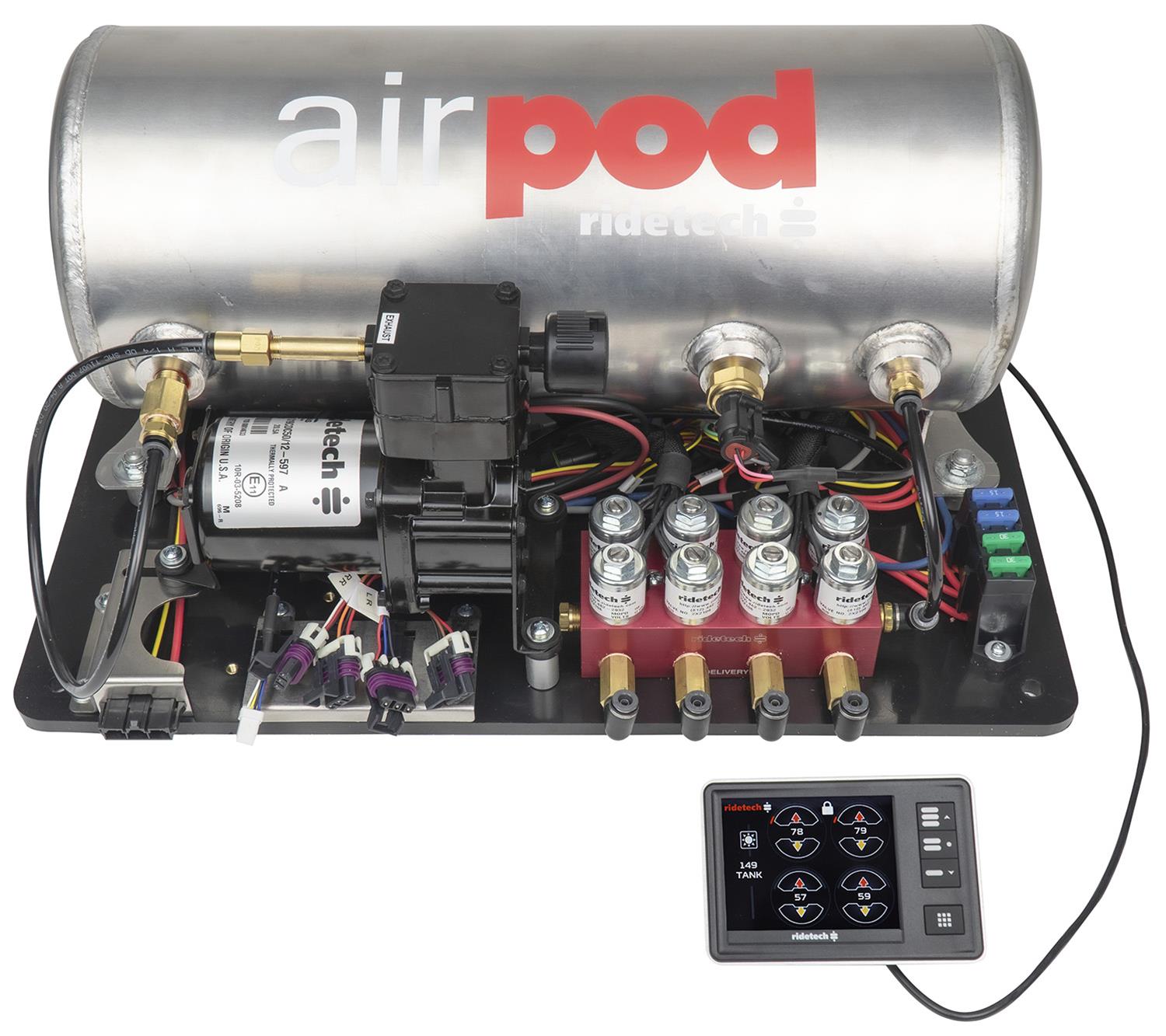

RideTech's RidePro E5 AirPod is a pre-wired air management system built around a single Thomas compressor, a 3-gallon aluminum tank, and a 3.5-inch color touchscreen, sized for a single vehicle's air suspension rather than a heavier-duty dual-compressor setup. Maximum system pressure is 150 PSI, with the compressor rated at 0.50 CFM at that pressure.
What it does
The controller self-levels automatically, compensating for load changes so ride height stays consistent, and it connects over Bluetooth so ride height can be adjusted from a smartphone app instead of only the dash touchscreen. Pressure sensors feed that self-leveling function.
What comes with it
The compressor, tank, 1/4-inch air lines and fittings, and the wiring harness all ship together pre-wired as one AirPod unit, which cuts down on the individual wiring and plumbing a from-scratch air system usually needs. Installation bolts in rather than requiring custom fabrication.
Before you order
Check that your air suspension components are compatible with a 150 PSI, single-compressor system before ordering, since a larger vehicle or a dual-line setup may call for the dual-compressor version instead.
Can I control it from my phone? Yes, over Bluetooth, in addition to the dash touchscreen.
Does it include the tank? Yes, a 3-gallon aluminum tank is part of the AirPod unit.
Specifications
| Feature | Details |
|---|---|
| Brand | RideTech |
| MFG. Part # | 30514000 |
| Product Type | Air Suspension Control System |
| Dash Panel Included? | Yes, Digital 4-Corner Readout |
| Display Type | 3.5” Full-Color LCD Touchscreen |
| Compressor Included? | Yes, Thomas Single Compressor (12V DC) |
| Air Tank Included? | Yes, 3-Gallon Aluminum Tank |
| Maximum Pressure | 150 PSI |
| CFM (Cubic Feet per Minute) | 0.50 @ 150 PSI |
| Self-Leveling Feature? | Yes, Automatic Load Compensation |
| Bluetooth Connectivity? | Yes, Control via Smartphone App |
| Pressure Sensors? | Yes |
| Air Lines Included? | Yes, 1/4” Valves |
| Fittings Included? | Yes |
| Wiring Harness Included? | Yes |
| Installation Type | Pre-Wired, Bolt-On |
| Quantity | Sold as a complete kit |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
