Suspension

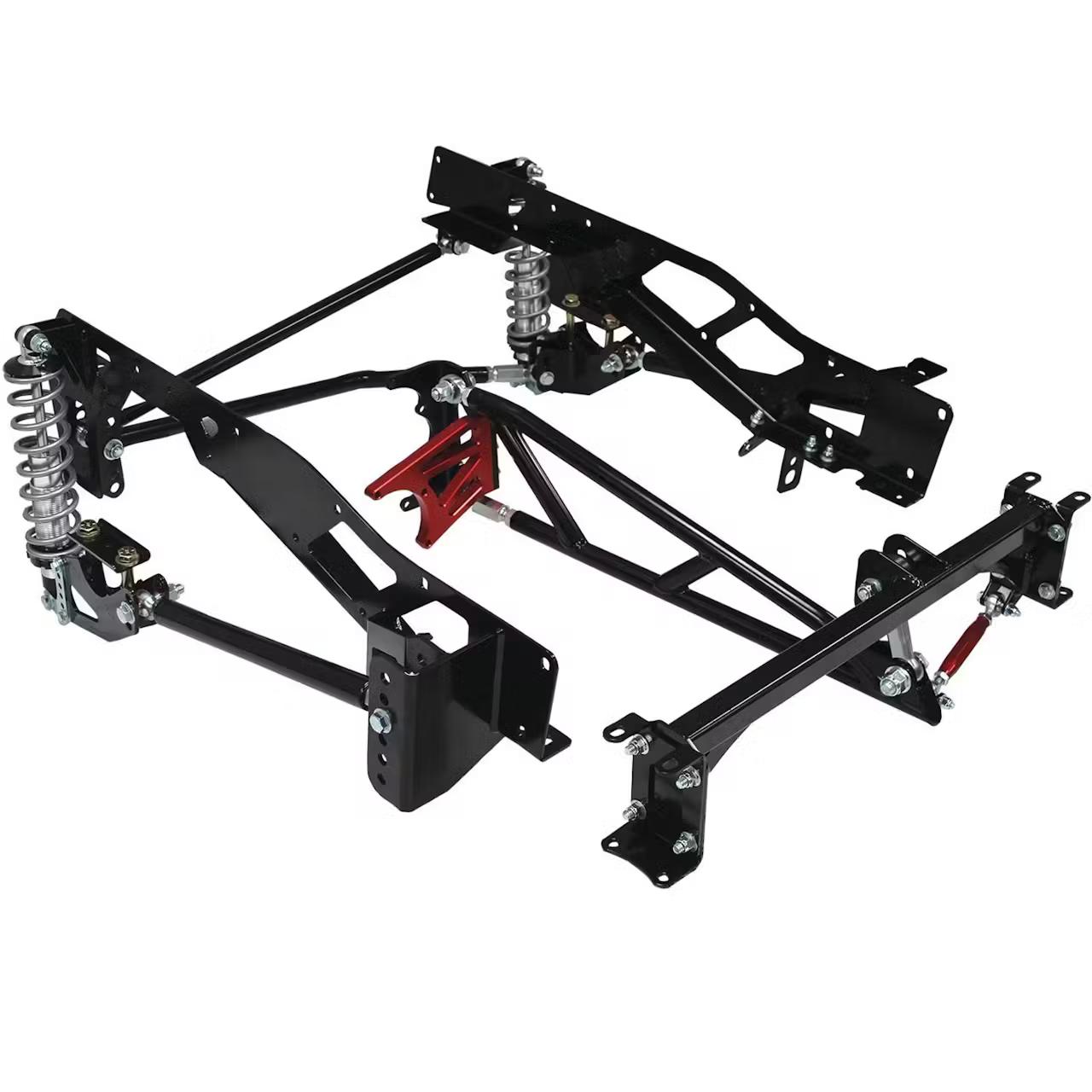

QA1 R232-170 Rear Suspension Conversion Kit, 73-87 C10 GM Trucks
€2,226.25
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €2,375.25 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
QA1 built the R232-170 around a torque arm rather than a plain trailing-arm layout, pairing a 170-lb. coilover spring with a double adjustable shock for a 73-87 C10 or other GM truck on a Ford 9-inch solid rear axle. Frame brackets and all the mounting hardware ship with the kit, and the whole conversion bolts in with no welding called for.
What to check before buying
Confirm your truck is running that Ford 9-inch solid axle before ordering, since the kit does not include an axle housing of its own. Lowered ride height runs from 4.0 to 7.0 inches, adjustable through the coilover and the panhard bar.
What comes with it
A single-adjustable panhard bar and a torque arm give the rear end its geometry, backed by a lower trailing arm on each side with mount braces included, finished black with a gray-and-silver spring; upper trailing arms and any control arms are left off this particular kit. Bushings are spherical bearings rather than rubber.
Does it include a torque arm? Yes, a torque arm is part of this conversion kit.
Is the shock single or double adjustable? Double adjustable, tuned independently for compression and rebound.
Specifications
KEY SPECS | |
|---|---|
| MFG. Part # | R232-170 |
| Brand | QA1 |
| Rear Suspension Type | Solid Axle |
| Trailing Arm Style | Torque Arm |
| Suspension Kit Type | Conversion |
| Suspension Height Adjustment | 4.0-7.0 Inch Lowered |
| Rear Coil Springs Included | Yes |
| Spring Type | Coilover |
| Spring Rate | 170 lbs. |
| Shocks Included | Yes |
| Shock Adjustability | Double Adjustable |
| Bolt-On | Yes |
| Axle Housing Included | No |
| Material Type | Steel |
| Rear Leaf Springs Included | No |
| Bushing Material | Spherical bearing |
| Lower Trailing Arms Included | Yes |
| Upper Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | Yes |
| Hardware Included | Yes |
| Air Springs Included | No |
| Crossmember Included | No |
| Frame Brackets Included | Yes |
| Welding Required | No |
| Rear Sway Bar Included | No |
| Panhard Bar Included | Yes |
| Torque Arm Included | Yes |
| Upper Control Arms Included | No |
| Lower Control Arms Included | No |
| Control Arm Style | Tubular |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
GENERAL | |
| Color | Black |
| Sold in Quantity | Kit |
| Spring Finish | Gray/Silver |
| Adjustable Lower Trailing Arms Type | Double adjustable |
| Adjustable Panhard Bar Type | Single Adjustable |
| Adjustable Upper Trailing Arms Included | No |
| Adjustable Panhard Bar Included | Yes |
| Adjustable Lower Trailing Arms Included | Yes |
| Trailing Arm Hardware Included | Yes |
| Coilover Springs Included | Yes |
| Rear Shocks/Struts Included | Yes |
| Suspension Package Finish | Black powdercoated |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
