In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Suspension
McGaughy's Suspension Lift Kits 50721
€1,423.91
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,512.91 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

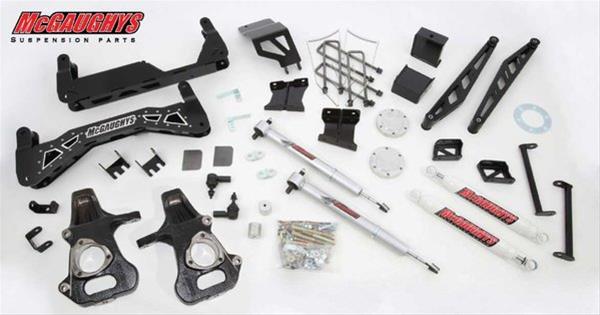

McGaughy's part 50721 pairs a steering-knuckle front lift with a rear leaf spring block, and unlike several other McGaughy's kits, ships gas-charged twin-tube shocks at both the front and the rear rather than non-adjustable units.
What it is for
Installation is meant to be bolt-on, and the box includes CNC-designed steering knuckles, lower A-frame support rods, and compression struts aimed at resisting chassis flex, along with the hardware needed to put it together. McGaughy's does not publish a specific lift-height figure for this kit, so pull up vehicle-specific fitment notes for the actual ride-height change before buying.
What to check before buying
Brake line extensions are not part of this package, and it carries no FMVSS 126 certification, so plan ahead if your intended ride height needs longer lines. Make sure your wheel and tire combination will clear the lifted suspension once it is installed.
Common questions
What kind of shocks ship with this kit? Gas-charged, twin-tube units, front and rear.
Will I need to cut or weld anything? No, McGaughy's designs this as a bolt-on kit.
Does the box include brake line extensions? It does not.
Specifications
| Feature | Details |
|---|---|
| Brand | McGaughy’s Suspension Parts |
| MFG. Part # | 50721 |
| Product Type | Suspension Lift Kit |
| Primary Front Lift Component | Steering Knuckle |
| Primary Rear Lift Component | Leaf Spring Block |
| Front Shocks Included? | Yes, Gas-Charged Twin-Tube |
| Rear Shocks Included? | Yes, Gas-Charged Twin-Tube |
| Brake Lines Included? | No |
| Hardware Included? | Yes |
| Installation Type | Bolt-On, No Major Modifications Required |
| FMVSS 126 Certification | No |
| Quantity | Sold as a Kit |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
