In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Suspension
Helix CornerKiller IFS Suspension Packages HEXIFSCUFCYD01PLSA
€2,047.26
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €2,196.26 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

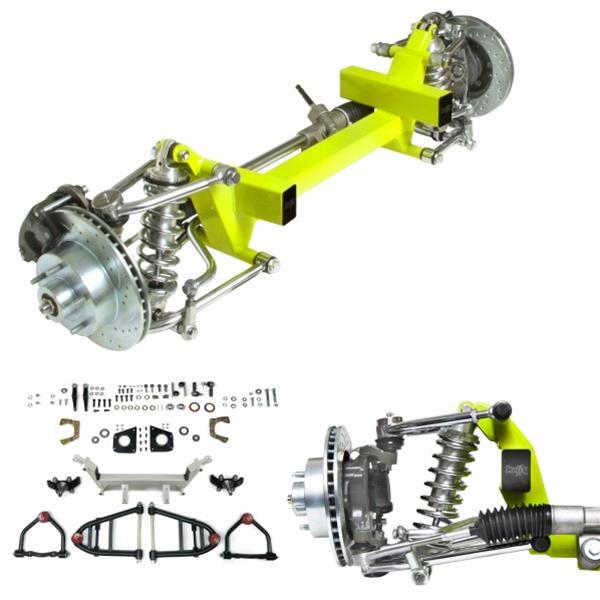

The Helix CornerKiller IFS suspension package, part HEXIFSCUFCYD01PLSA, is a universal front-end swap built around a 60-inch wheelbase rather than one named car, so expect to modify your chassis to fit it rather than bolt it straight in.
What comes with the package
A steel crossmember that needs welding to install carries cast-iron spindles at stock height, with an optional 2-inch drop available, plus hydraulic power-assist rack-and-pinion steering and coilover shocks with gray/silver-finish springs. Braking is an 11-inch cross-drilled and slotted rotor with a cast-iron, single-piston caliper; the bolt pattern comes in at 5 x 4 3/4 in., so cross-check that against your wheels. A front sway bar and king pins are left out of this package, while tie rod ends and mounting hardware are included.
What to check before ordering
Because this is a universal 60-inch-wheelbase kit, measure your chassis against that figure before ordering, and plan on welding and other fabrication to get the crossmember to fit your specific car; this is not a direct bolt-on package. Decide between the stock-height and 2-inch-drop spindles based on the stance you want before you weld anything in place.
Is this a bolt-on kit? No, it is a universal kit that needs welding and modification to fit a given chassis.
Can I get a lowered stance with this kit? Yes, a 2-inch drop spindle option is available alongside the stock-height spindle.
Specifications
| Feature | Details |
|---|---|
| Brand | Helix |
| MFG. Part # | HEXIFSCUFCYD01PLSA |
| Product Type | Front Suspension Package |
| Wheel Bolt Pattern | 5 x 4 3/4 in. |
| Crossmember Included? | Yes |
| Crossmember Material | Steel |
| Welding Required? | Yes |
| Front Spindles Included? | Yes |
| Spindle Type | Stock Height (Optional 2 in. Drop Available) |
| Spindle Material | Cast Iron |
| Rack & Pinion Steering? | Yes, Hydraulic Power Assist |
| Shock Type | Coilover |
| Brake Type | Disc Brakes, 11 in. Cross-Drilled & Slotted Rotors |
| Caliper Material | Cast Iron |
| Caliper Piston Quantity | One |
| Spring Finish | Gray/Silver |
| Front Sway Bar? | No |
| King Pins Included? | No |
| Tie Rod Ends Included? | Yes |
| Mounting Hardware Included? | Yes |
| Installation | Requires Modification, Universal Fitment |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
