Suspension

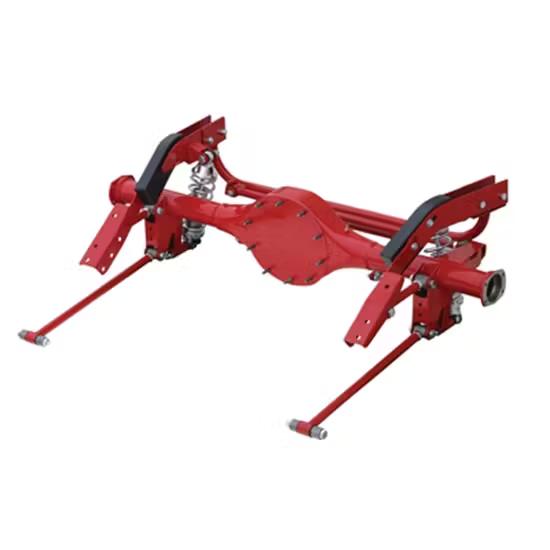

Heidts RC-101-WT Rear 4-Link Base Kit, 1967-69 Camaro/Firebird
€2,226.25
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €2,375.25 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
This is the base version of Heidts' RC-101-WT parallel 4-link kit for the 1967-69 Camaro and Firebird: a solid-axle conversion that replaces leaf springs with a bolt-on 4-link and coilover setup, with no floor cutting involved.
What's included in the base kit
Chassis and axle brackets, adjustable links, a full upper coilover crossmember, a panhard bar, and Heidts' own adjustable coilover shocks all ship in natural-finish steel, along with all mounting hardware; some assembly is required once the parts arrive. Axle housing is not part of this kit.
What to check before ordering
Expect a stance roughly 2 inches lower than stock once the coilovers are dialed in, and Heidts built this base kit to suit either a standard body or a mini-tubbed one, so it doesn't lock you into either route. Because this is the entry-level RC-101-WT package, check whether your build calls for any of Heidts' add-on link or spring options before ordering just this piece on its own.
Will this work with a mini-tubbed car? Yes, it fits both standard and mini-tubbed 1967-69 Camaro and Firebird bodies.
Is axle housing included? No, axle housing is not part of this kit.
Specifications
KEY SPECS | |
|---|---|
| MFG. Part # | RC-101-WT |
| Brand | Heidts |
| Rear Suspension Type | Solid Axle |
| Trailing Arm Style | Parallel 4-Link |
| Suspension Kit Type | Conversion |
| Suspension Height Adjustment | 2 Inch Lowered |
| Spring Type | Coilover |
| Shocks Included | Yes |
| Bolt-On | Yes |
| Axle Housing Included | No |
| Material Type | Steel |
GENERAL | |
| Finish | Natural |
| Sold in Quantity | Kit |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
