Suspension

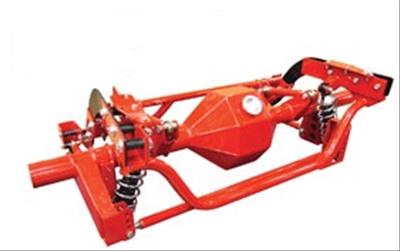

Heidts Pro-G Rear Suspension Packages RM-101-PG
€1,352.66
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,441.66 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
The Heidts Pro-G rear suspension package, part RM-101-PG, is an independent rear suspension (IRS) kit that bolts in without cutting the floor, built around single-adjustable upper and lower trailing arms, spherical-bearing bushings, and a panhard bar.
What's included
Coilover shocks and springs, finished gray/silver on a bare package, come with the trailing arms, along with trailing-arm mount braces and all mounting hardware. The panhard bar here is fixed rather than adjustable, and this package leaves out a sway bar, watts link, third member, axle shafts, rotors, and calipers, so those remain separate purchases.
What to check before ordering
Because this is an IRS package rather than a solid-axle 4-link, it goes in without the cutting or welding that some other Heidts rear kits need, but you will still need a third member, axle shafts, and brakes to finish the rear end. Plan your alignment and ride-height setup after install, since the trailing arms are adjustable but ship in a neutral position.
Is the panhard bar on this kit adjustable? No, it is included but not the adjustable version.
Does this package include the differential? No, the third member, axle shafts, rotors, and calipers are not included.
Specifications
| Feature | Details |
|---|---|
| Brand | Heidts |
| Manufacturer Part # | RM-101-PG |
| Product Type | Rear Suspension Package |
| Rear Shock Type | Coilover |
| Coilover Springs Included? | Yes |
| Spring Finish | Gray/Silver |
| Suspension Package Finish | Bare |
| Bushings Included? | Yes |
| Bushing Material | Spherical Bearing |
| Sway Bar Included? | No |
| Watts Link Included? | No |
| Panhard Bar Included? | Yes |
| Adjustable Panhard Bar? | No |
| Upper Trailing Arms Included? | Yes |
| Adjustable Upper Trailing Arms? | Yes (Single Adjustable) |
| Lower Trailing Arms Included? | Yes |
| Adjustable Lower Trailing Arms? | Yes (Single Adjustable) |
| Trailing Arm Mount Braces Included? | Yes |
| Trailing Arm Hardware Included? | Yes |
| Third Member Included? | No |
| Axle Shafts Included? | No |
| Rotors & Calipers Included? | No |
| Quantity | Sold as a kit |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
