Suspension
BMR Level 4 Suspension Handling Packages HPP021R
€1,405.21
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,494.21 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

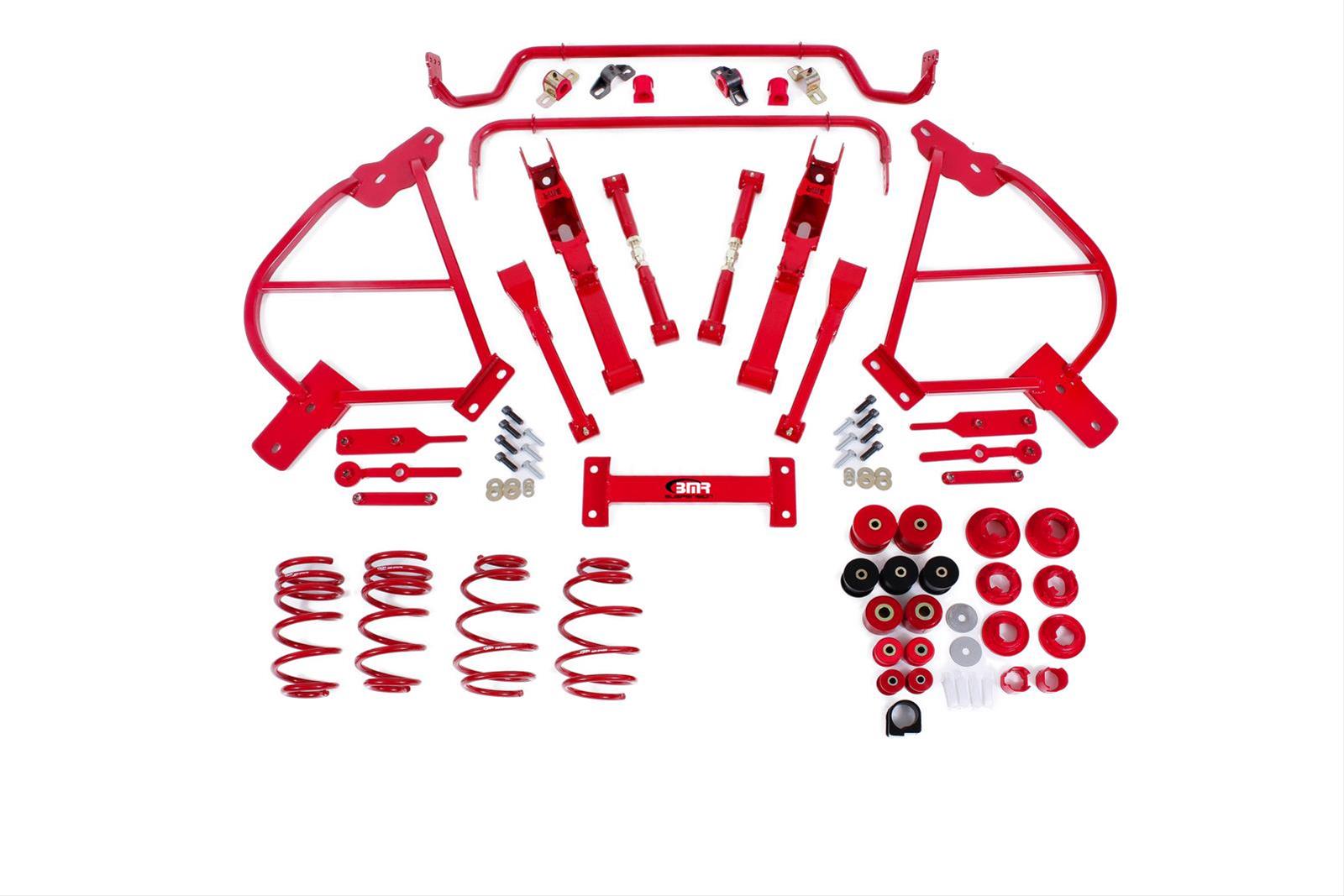

The BMR Level 4 Suspension Handling Package (HPP021R) is built around chassis stiffening and lowering rather than shock upgrades: it adds front and rear lowering springs, hollow sway bars, a full suspension bushing kit, bolt-on subframe connectors, and a driveshaft tunnel brace, but it does not include shocks or struts.
What's in the box
- Front and rear coil springs, lowering the car 1.00-1.50 inches depending on the vehicle
- Hollow front sway bar, 1.125 in. (29.00 mm), and hollow rear sway bar, 1.000 in. (25.00 mm)
- Front and rear suspension bushing kit
- Bolt-on subframe connectors and a driveshaft tunnel brace
- Adjustable trailing arms and adjustable toe rods, plus mounting hardware
What it leaves out
Shocks and struts aren't part of this package, so pair it with dampers suited to the new ride height. Control arms also aren't included here; the trailing arms and toe rods handle rear alignment instead. Installation is bolt-on, and an alignment afterward is necessary to keep geometry and tire wear in check.
Will this lower my car? Yes, by roughly 1.00-1.50 inches, depending on the vehicle.
Are shocks included? No, shocks and struts are left out of this package.
Specifications
| Feature | Details |
|---|---|
| MFG. Part # | HPP021R |
| Brand | BMR Suspension |
| Vehicle Compatibility | Late-Model Muscle Cars |
| Front Coil Springs | Yes |
| Rear Coil Springs | Yes |
| Lowering Amount | 1.00-1.50 inches (varies by vehicle) |
| Front Sway Bar | Hollow, 1.125 in. (29.00 mm) diameter |
| Rear Sway Bar | Hollow, 1.000 in. (25.00 mm) diameter |
| Suspension Bushing Kit | Yes (Front & Rear) |
| Subframe Connectors | Yes (Bolt-On) |
| Driveshaft Tunnel Brace | Yes |
| Trailing Arms | Yes (Adjustable) |
| Toe Rods | Yes (Adjustable) |
| Chassis Stiffening | Yes |
| Installation Type | Bolt-On |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
