Suspension
BDS Suspension Leveling & Lift Kits BDS745H
€939.48
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,028.48 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

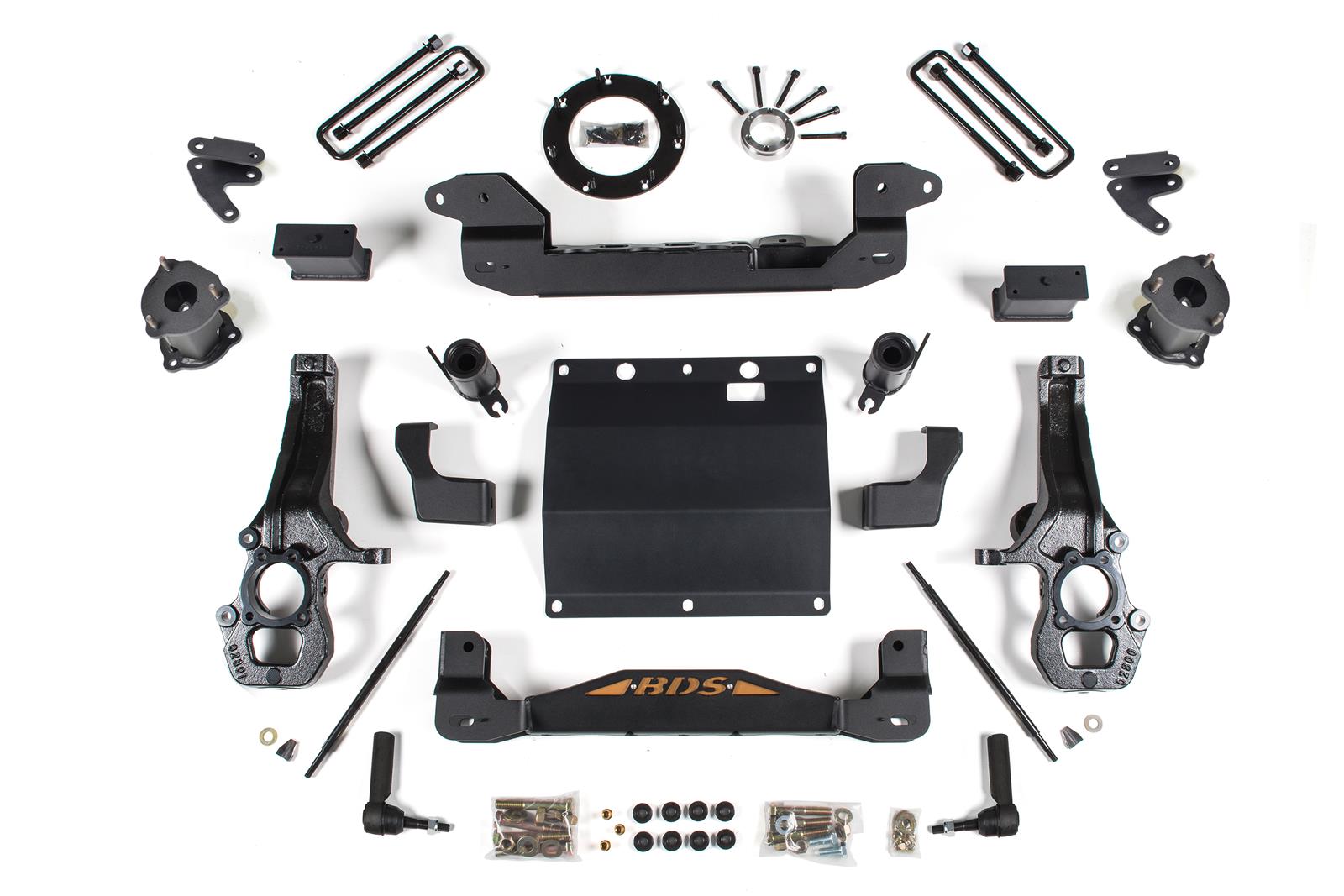

BDS's 745H is a 6-inch bolt-on suspension lift kit for trucks, built around heavy-duty front coil springs and steering knuckles, reinforced front and rear crossmembers, and either FOX 2.0 or BDS NX2 Series shocks, chosen by application. Rear lift comes from leaf spring blocks or a full leaf pack, which varies by vehicle model.
Braking and hardware
Because the lift changes suspension travel, the kit includes extended brake line brackets to keep the lines working safely at the new ride height, along with the mounting hardware needed for installation without welding. A skid plate may be included depending on the specific application, protecting underbody components once the truck is lifted.
Clearance and alignment
This 6-inch lift is meant to open up clearance for larger tires, with figures in the 35 to 37 inch range depending on the vehicle, though exact clearance varies by model. An alignment is recommended after installation to keep steering and suspension geometry correct, and larger tires may call for minor trimming depending on the application.
Common questions
How much lift does this kit provide? 6 inches.
What shocks come with it? FOX 2.0 or BDS NX2 Series units, chosen per application.
Do I need an alignment afterward? Yes, an alignment is recommended after installation.
Specifications
| Feature | Details |
|---|---|
| Brand | BDS Suspension |
| MFG. Part # | BDS745H |
| Product Type | Suspension Lift Kit |
| UPC | 00840416420852 |
| Lift Height | 6 inches |
| Primary Front Lift Component | Coil Springs & Steering Knuckles |
| Primary Rear Lift Component | Leaf Spring Blocks or Full Leaf Pack (Varies by Model) |
| Shocks Included? | Yes, NX2 Series or FOX 2.0 Shocks |
| Front Shocks Type | Gas-Charged Monotube or Twin-Tube |
| Rear Shocks Type | Gas-Charged Monotube or Twin-Tube |
| Brake Lines Included? | Yes, Extended Brackets |
| Hardware Included? | Yes, Complete Mounting Kit |
| Installation Type | Bolt-On, No Welding Required |
| Fitment | Application-Specific (Check Vehicle Compatibility) |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
