Suspension

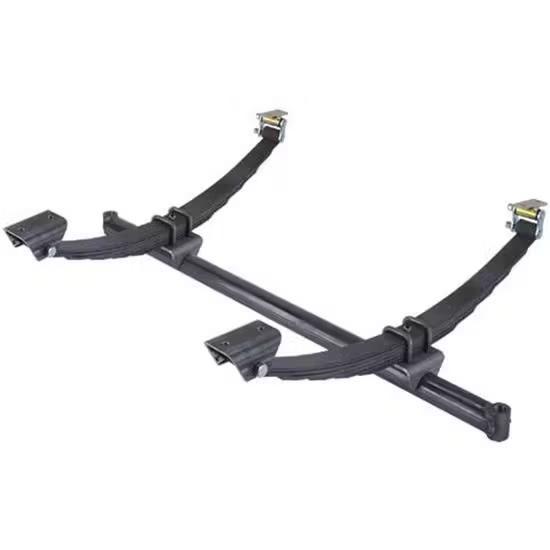

46 Inch Chevy Universal Straight Axle Kit, Semi-Elliptical/Gasser
€356.20
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €445.20 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Centered on 1949-54 Chevy-style passenger car spindles, this 46 inch straight axle kit delivers a semi-elliptical gasser front end built around a plain-steel, welded-end tube axle. With flat plate steering arms, the tie rod length for this width comes to 43.5 inches eye-to-eye.
What ships with it
You get a welded tube axle at 0.250 inch wall thickness, a pair of axle pads with U-bolts, nylon-bushed spring shackles measuring 1-3/4 inch, brackets for mounting to the frame, a matched pair of 32 inch six-leaf springs, and the hardware to assemble it all.
Fit notes
The spring pads can be positioned along the axle and welded to suit your frame width, and lengths other than 46 inches, including custom widths, are also offered. This kit does not include spindles, follows the 1949-54 Chevy-style spindle pattern rather than a specific car's own, and is not built for off-road racing.
What tie rod length does 46 inches need? 43.5 inches eye-to-eye with flat plate steering arms.
Can I get a custom width instead? Yes, custom axle widths are available.
Specifications
KEY SPECS | |
|---|---|
| MFG. Part # | 91639036-46 |
| Brand | Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Bolt Pattern | Not Applicable |
| Rotor Diameter | Not Included |
| Spindle Style | Chevy/GM Stock |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Semi-Elliptical Gasser |
| Spindles Included | No |
| Steering Included | No |
| Welding Required | Yes |
Suspension Setup & Installation Checklist
- Inspect top mounts, damper seals, bushings, and ball joints prior to fitment.
- Set initial spring preload, collar heights, and damper rebound clicks symmetrically left to right.
- Torque all suspension control arm pivot bolts while the vehicle is at resting ride height (loaded suspension).
- Perform a complete 4-wheel laser alignment once ride height has settled to ensure optimal handling and tire wear.
