Power Equipment

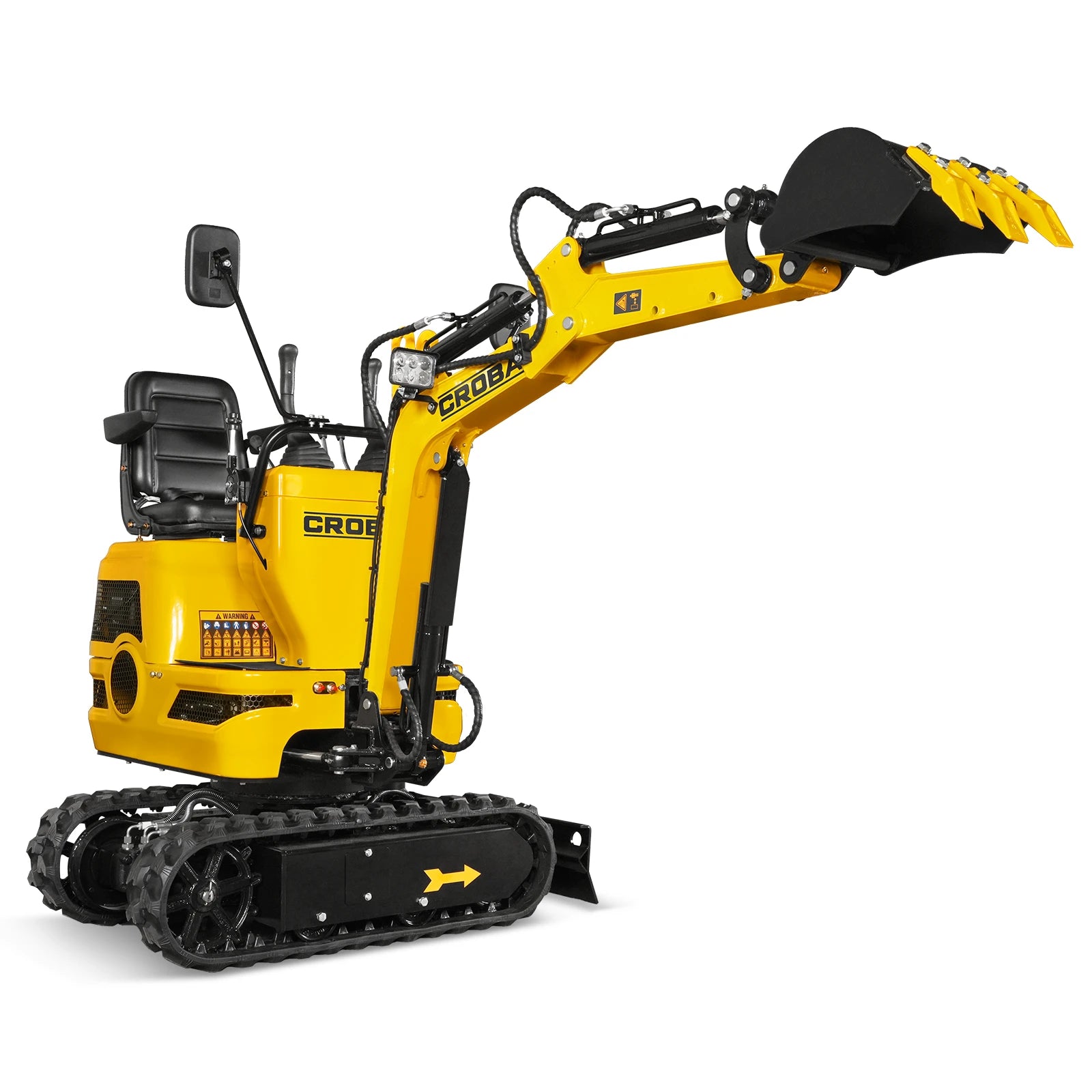

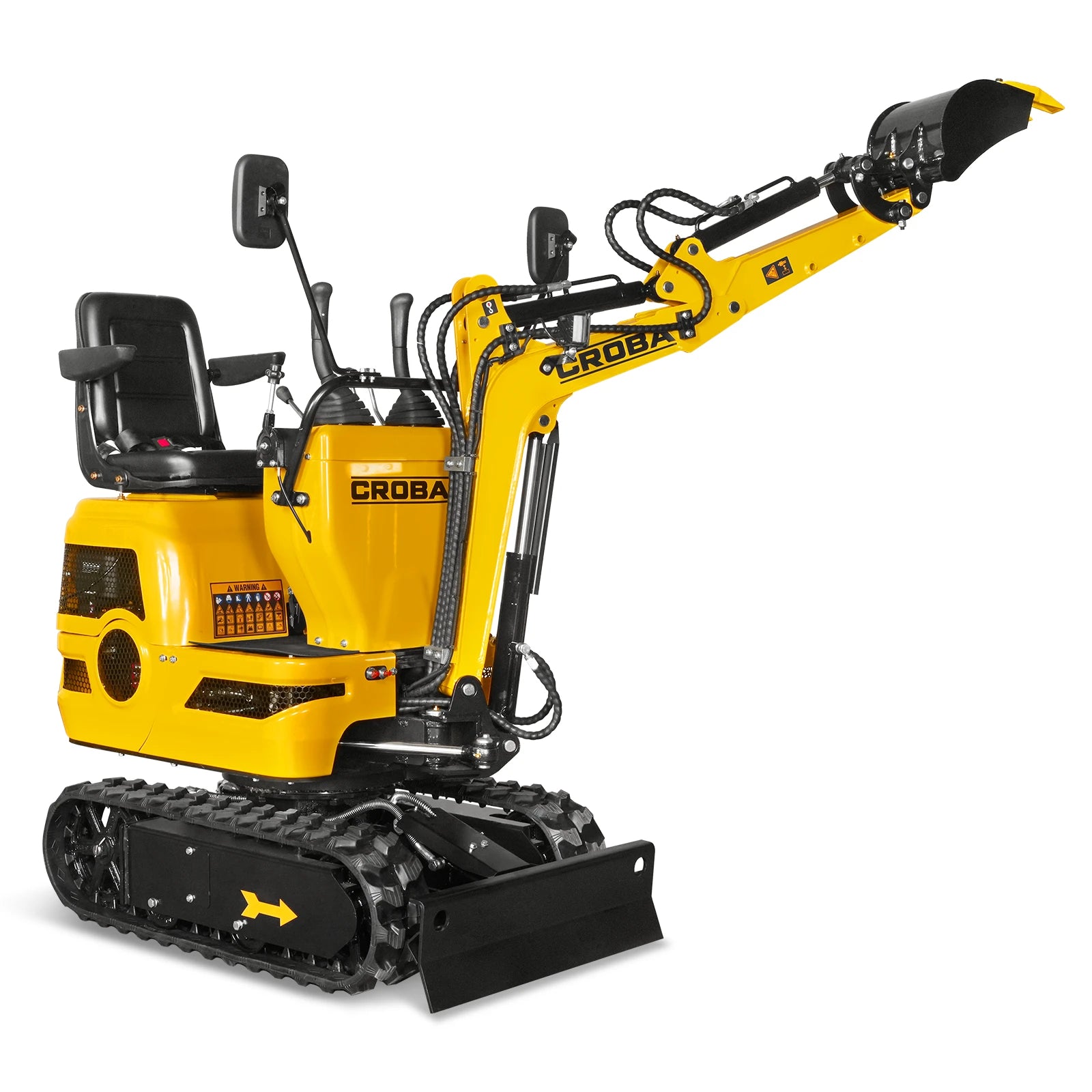

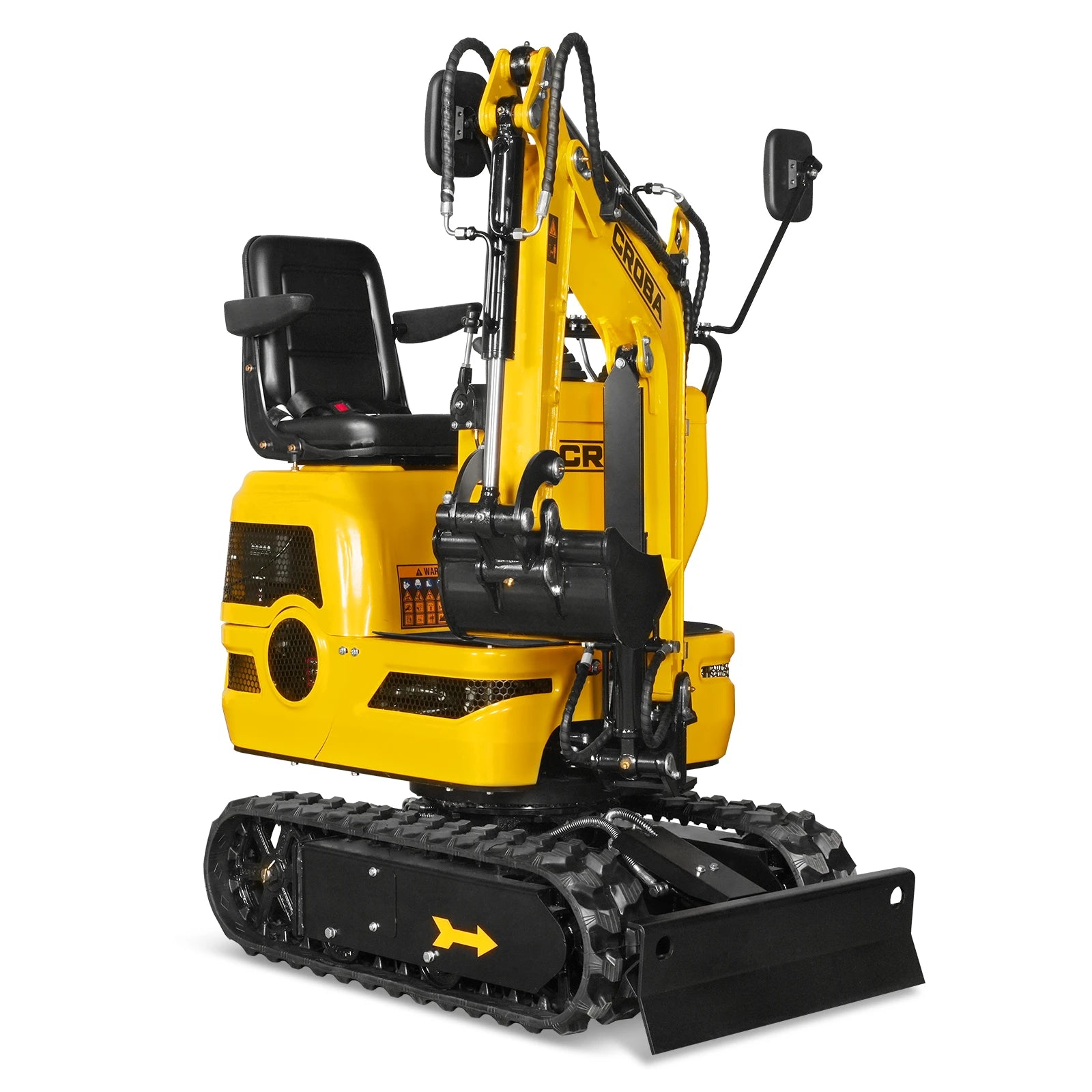

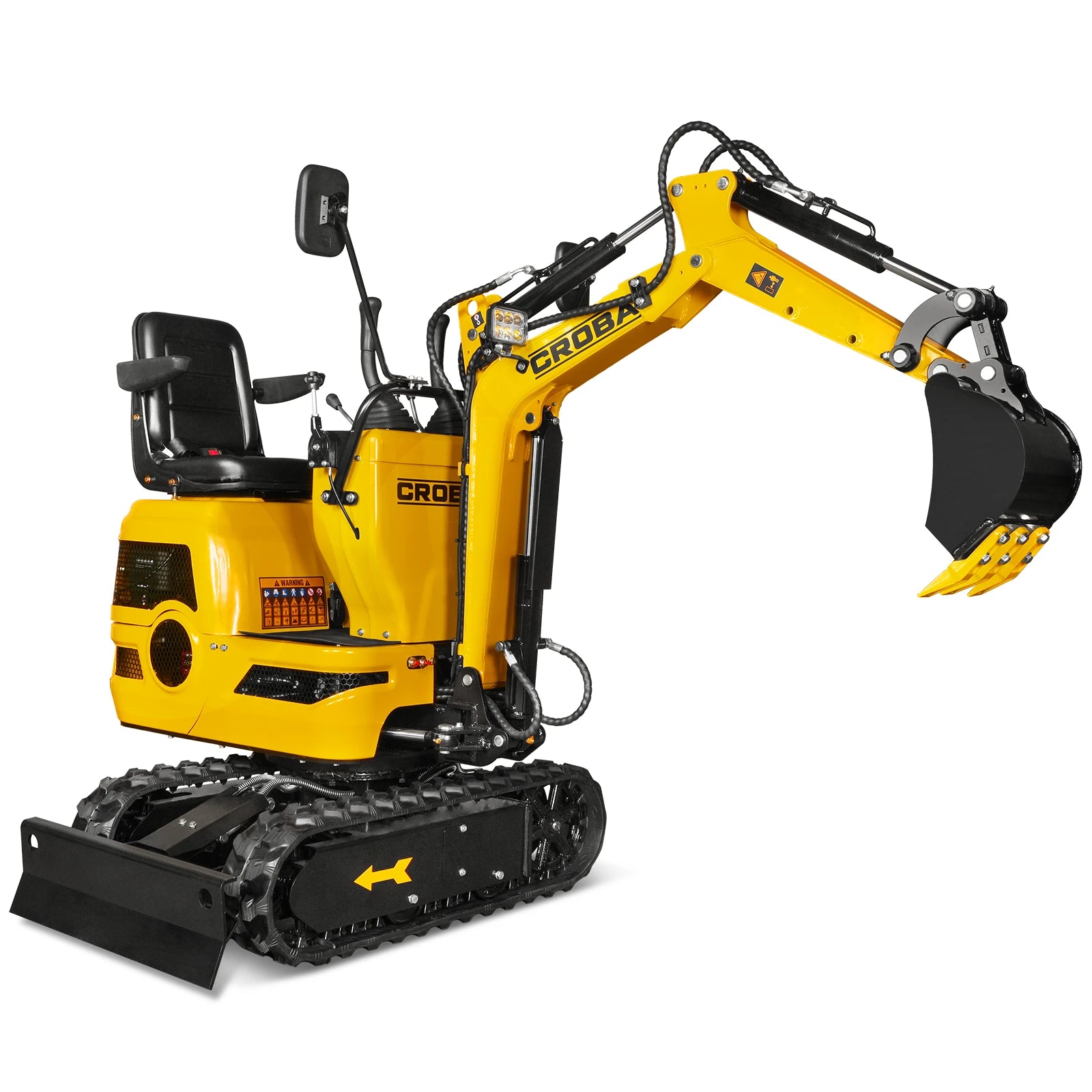

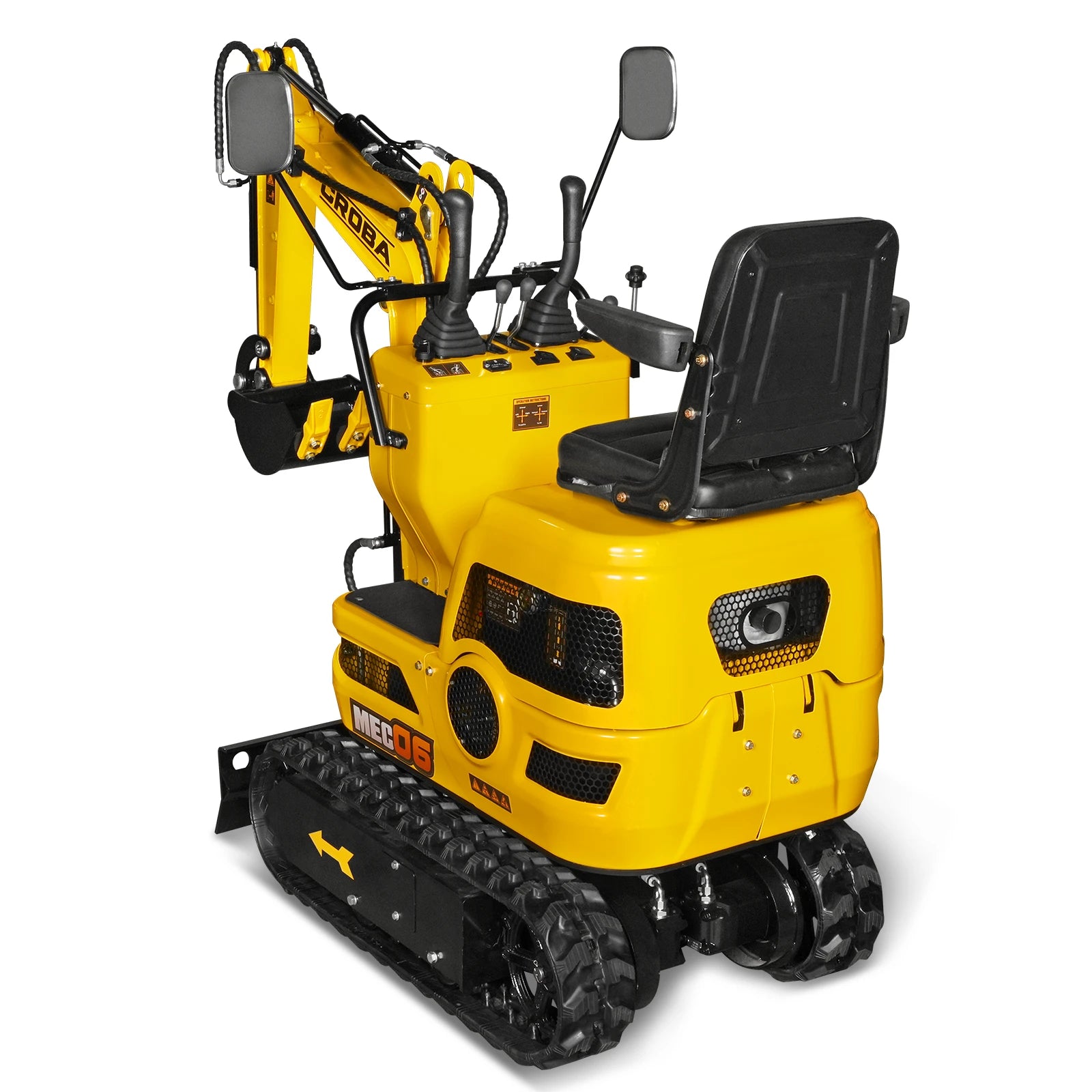

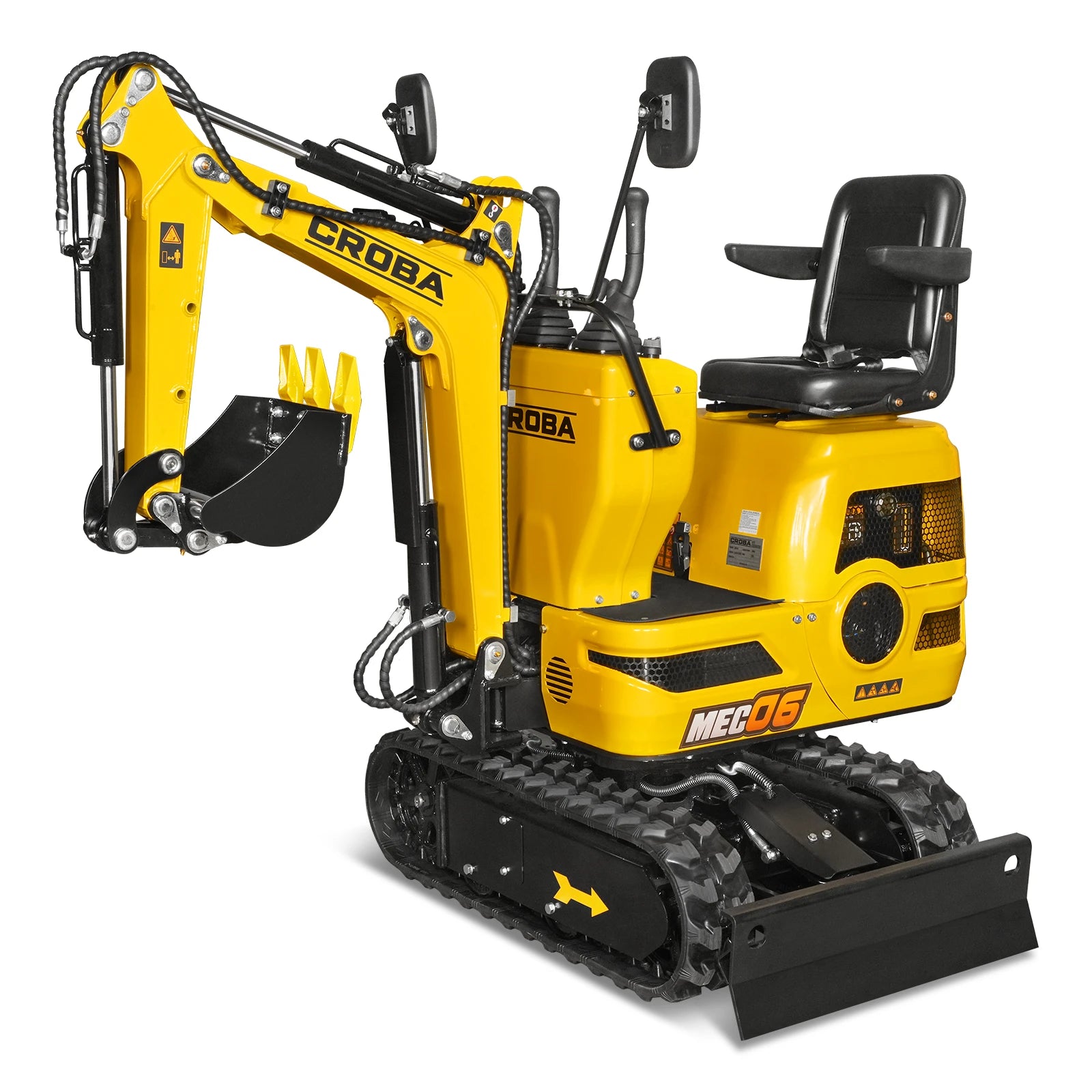

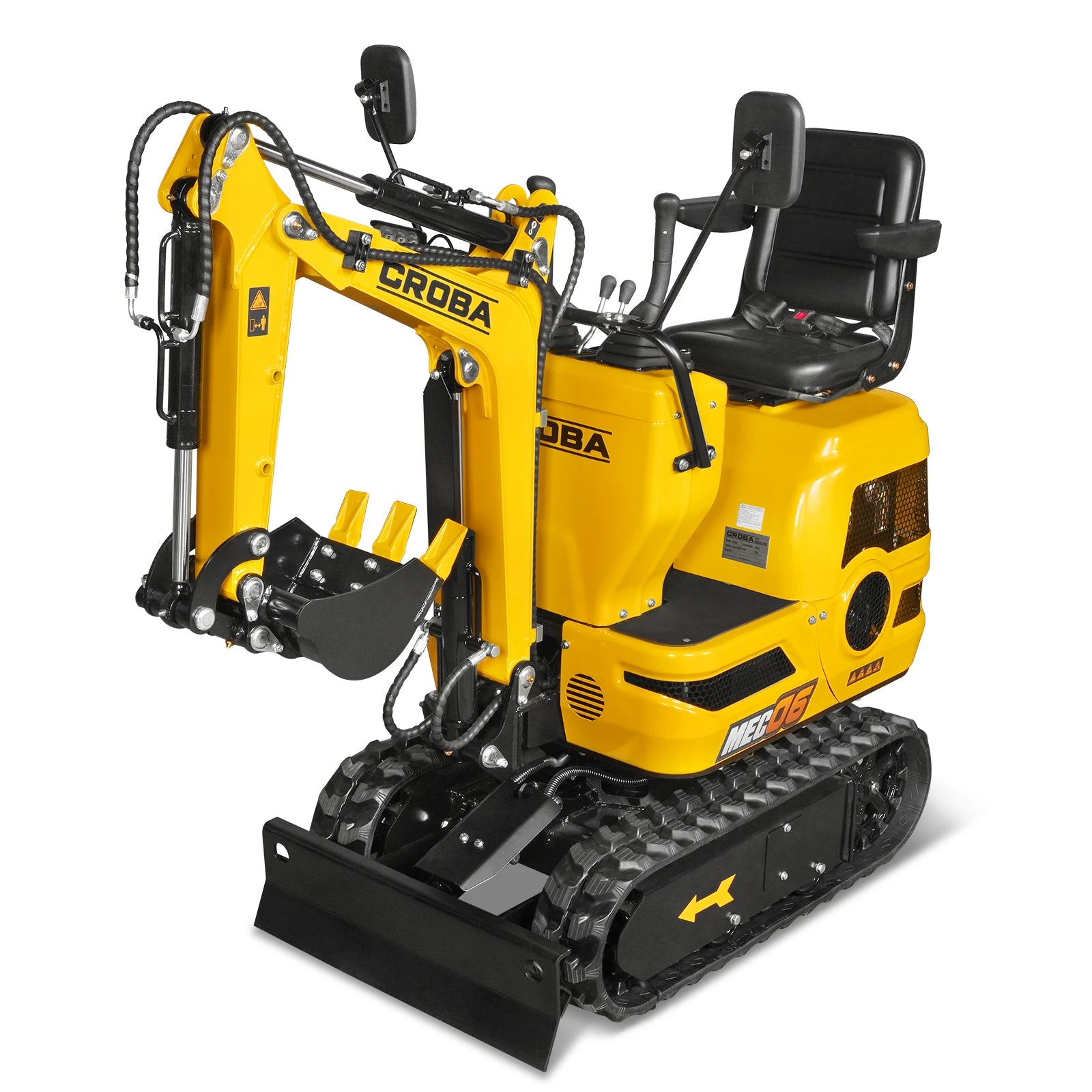

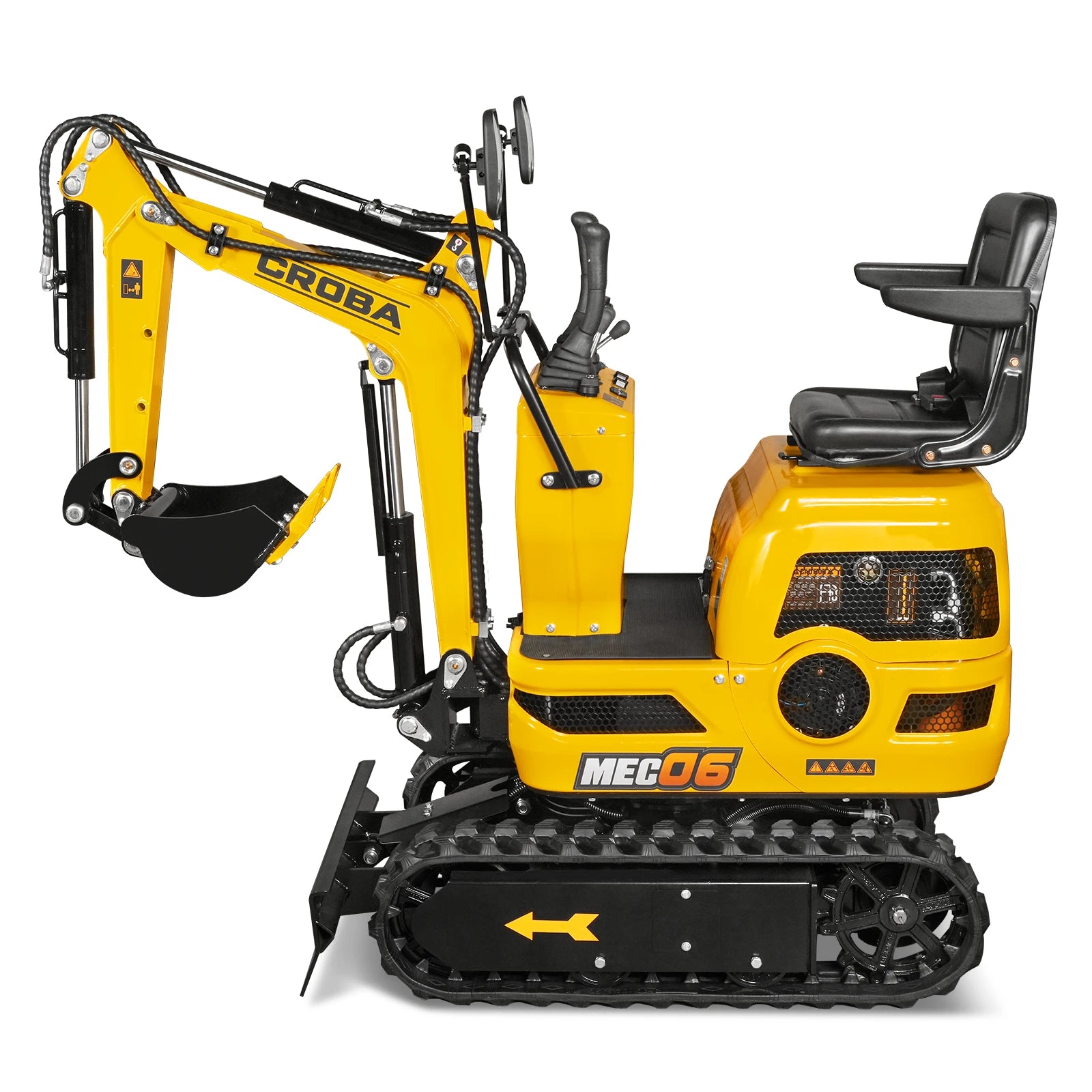

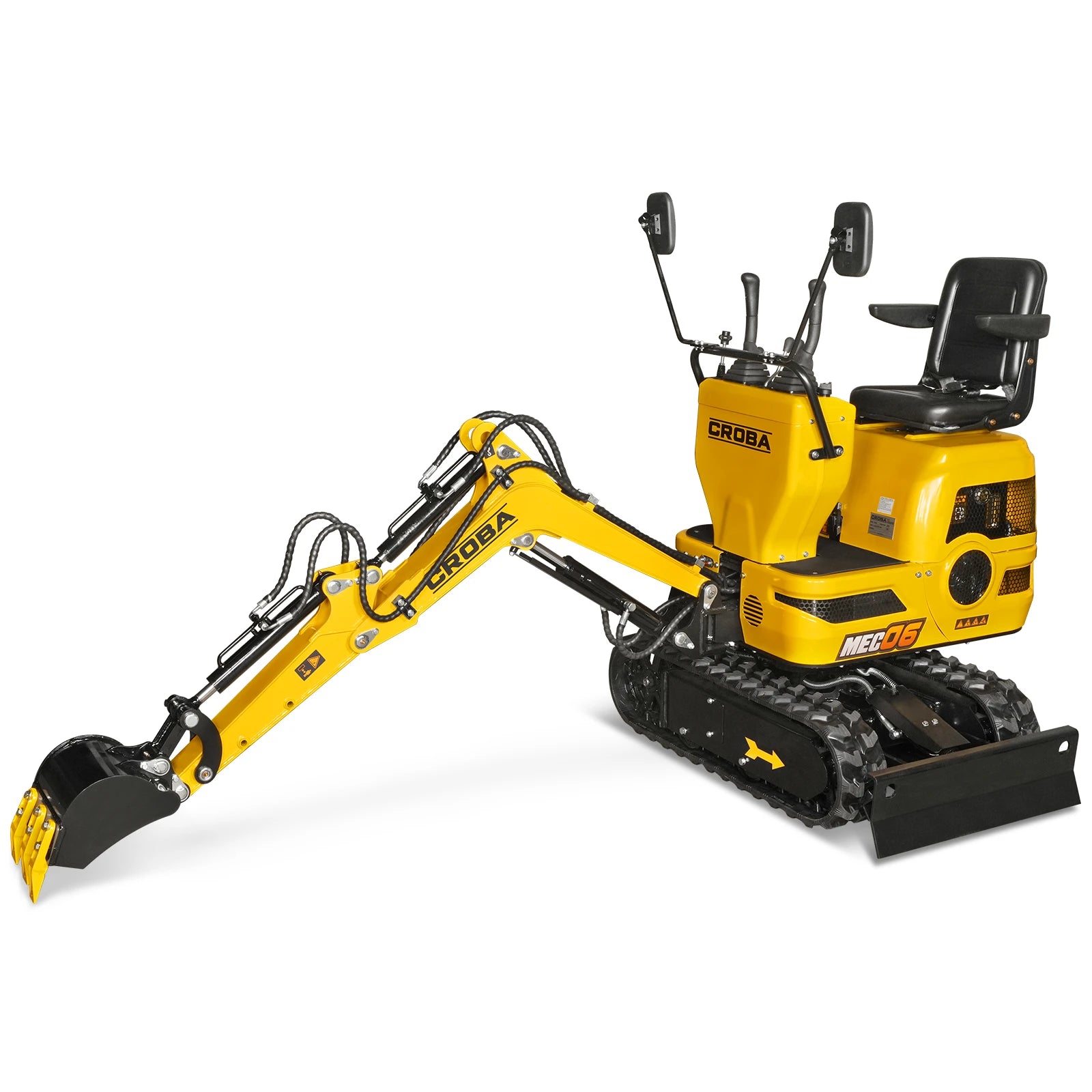

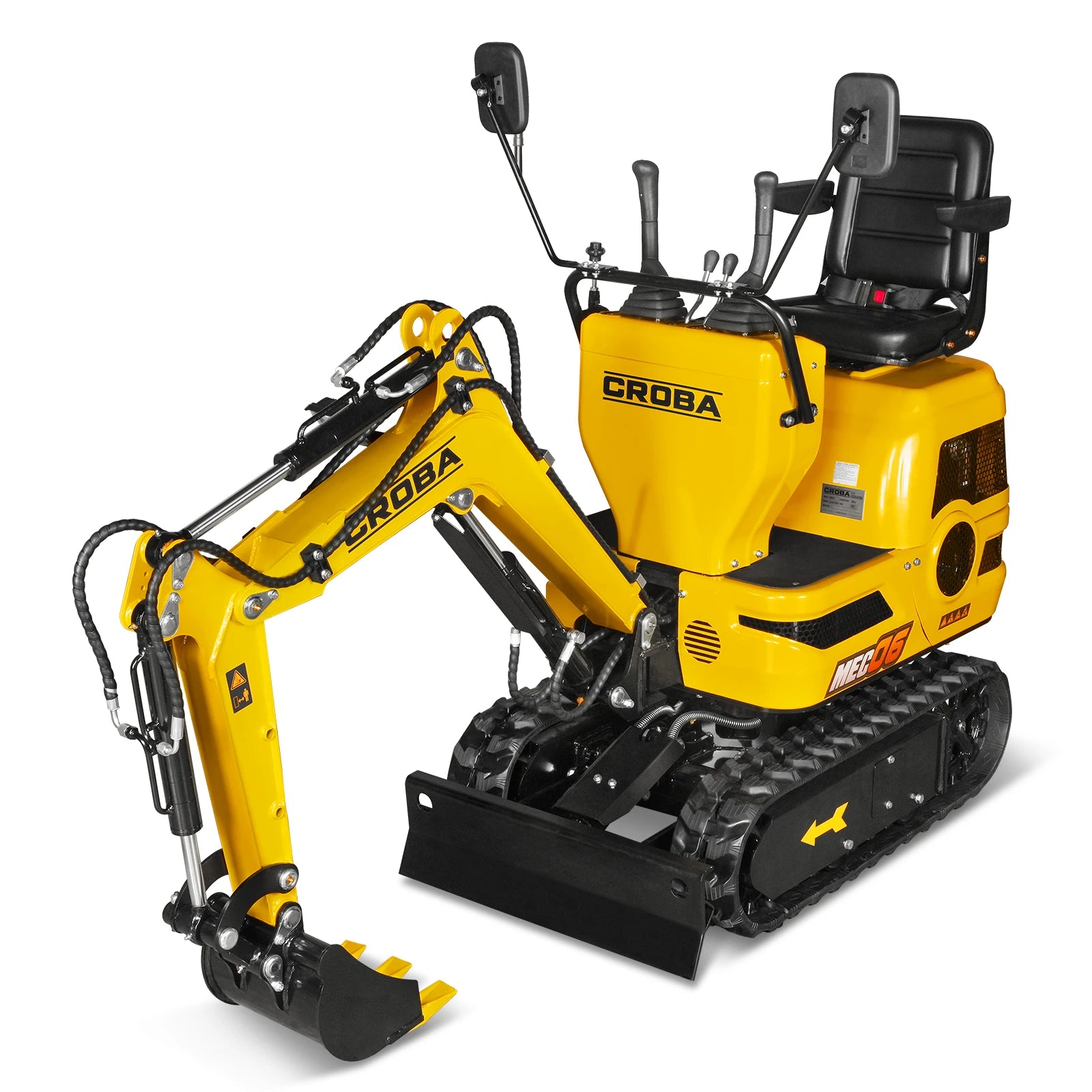

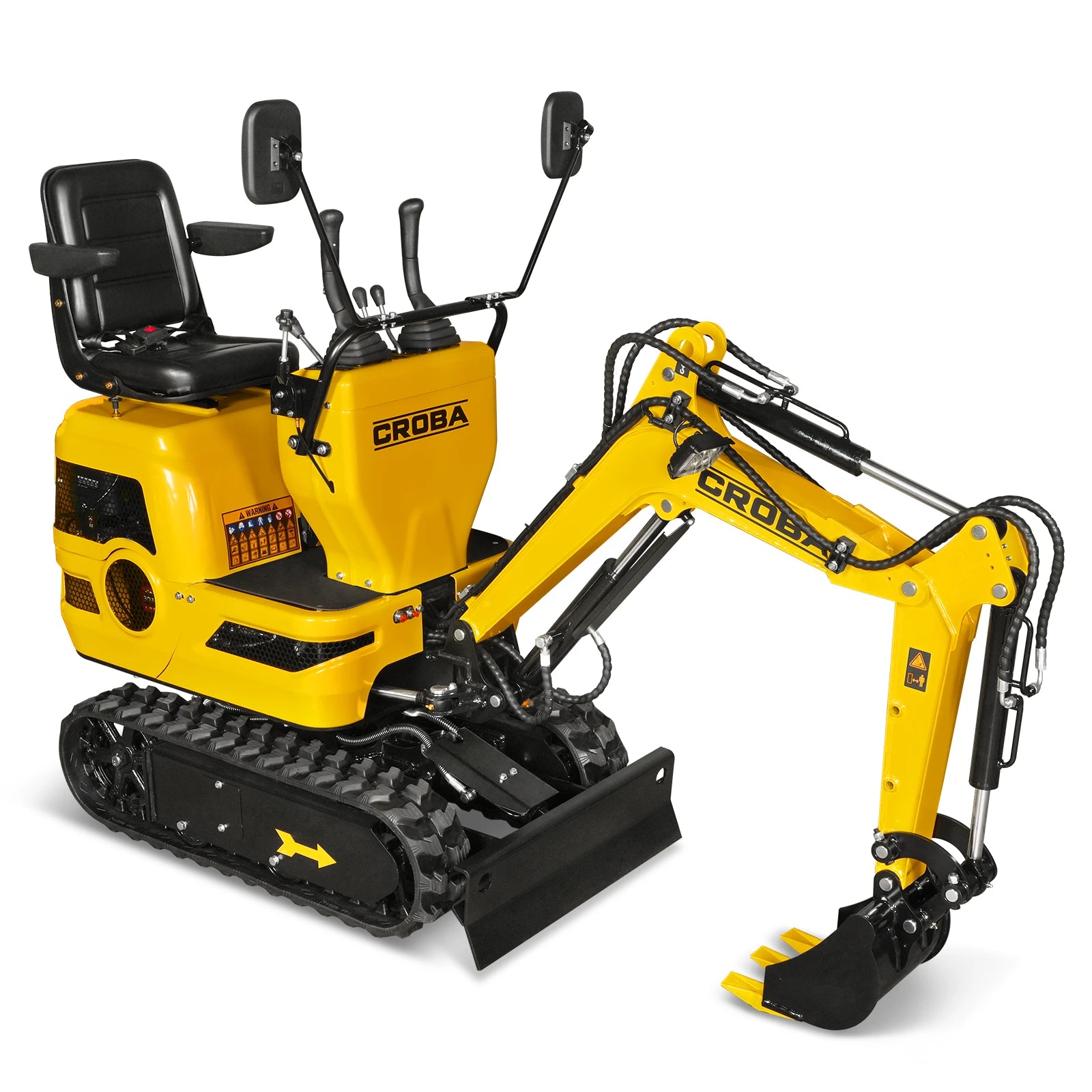

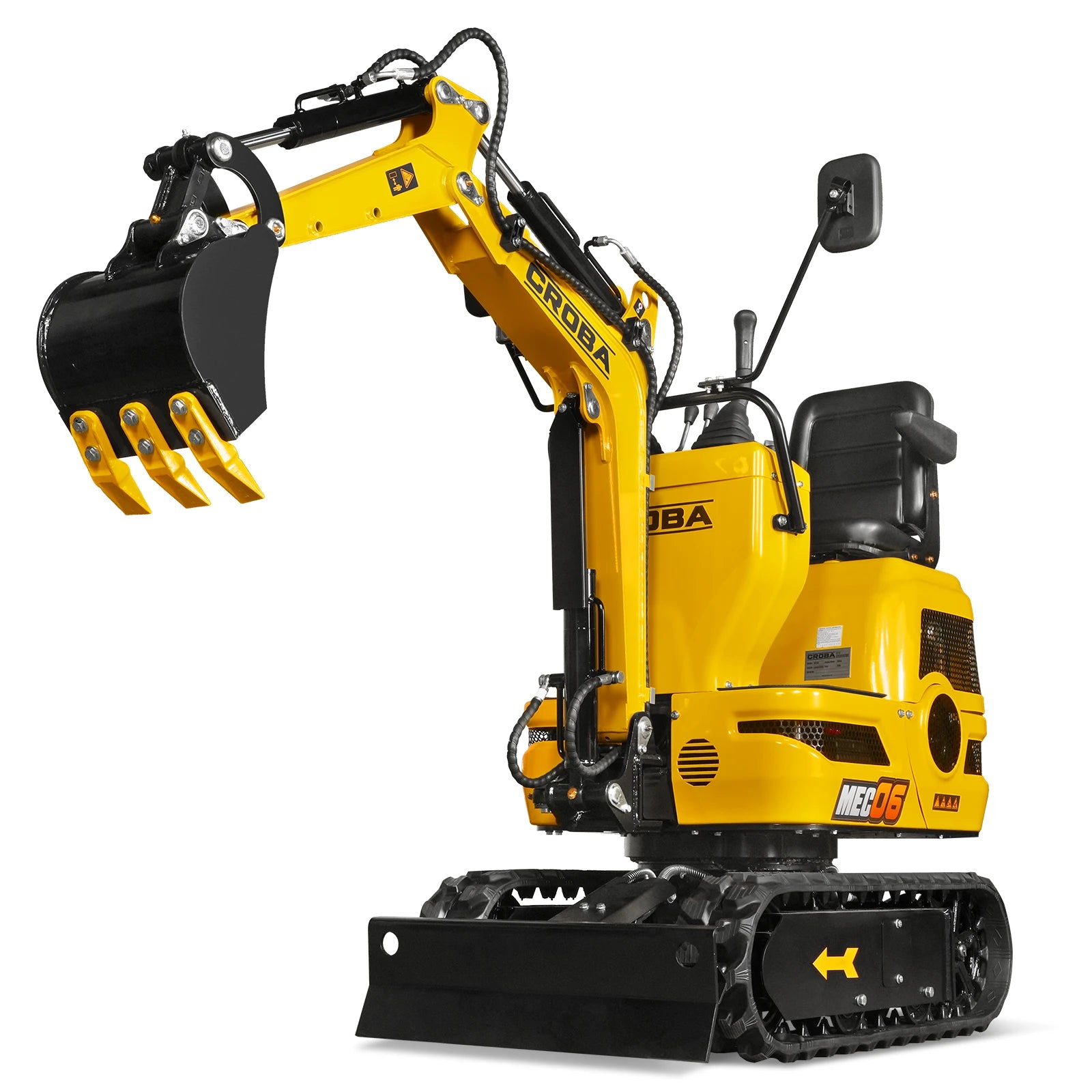

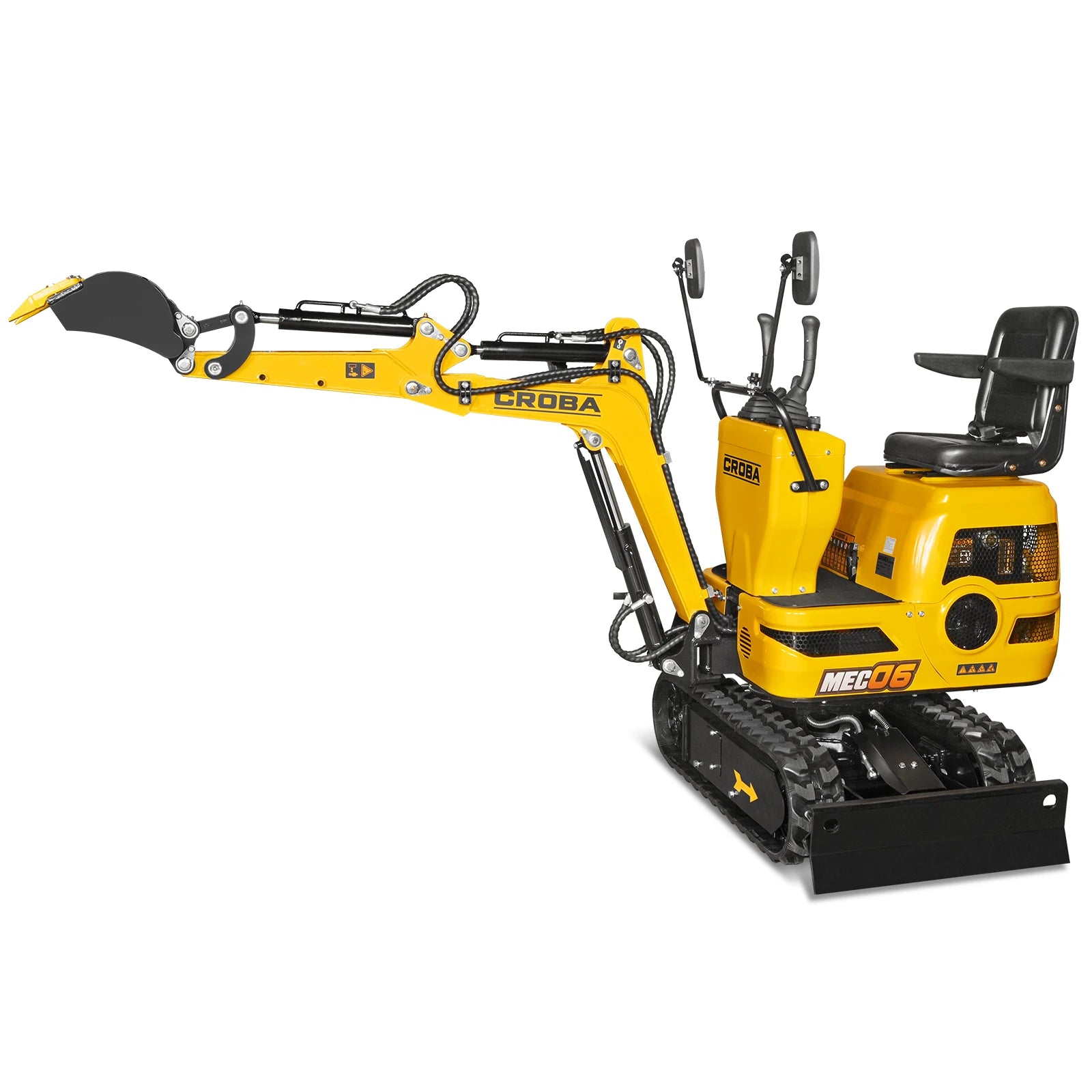

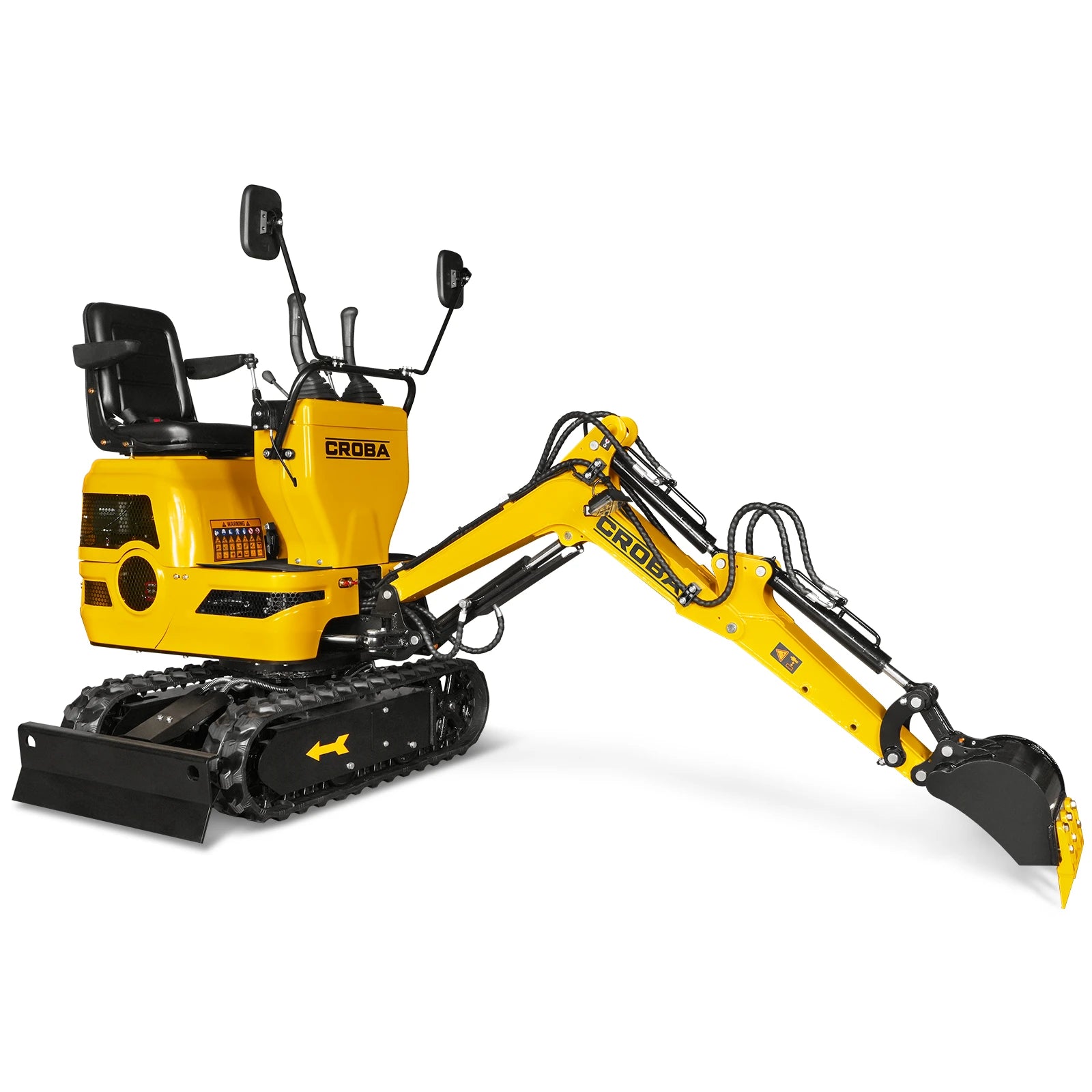

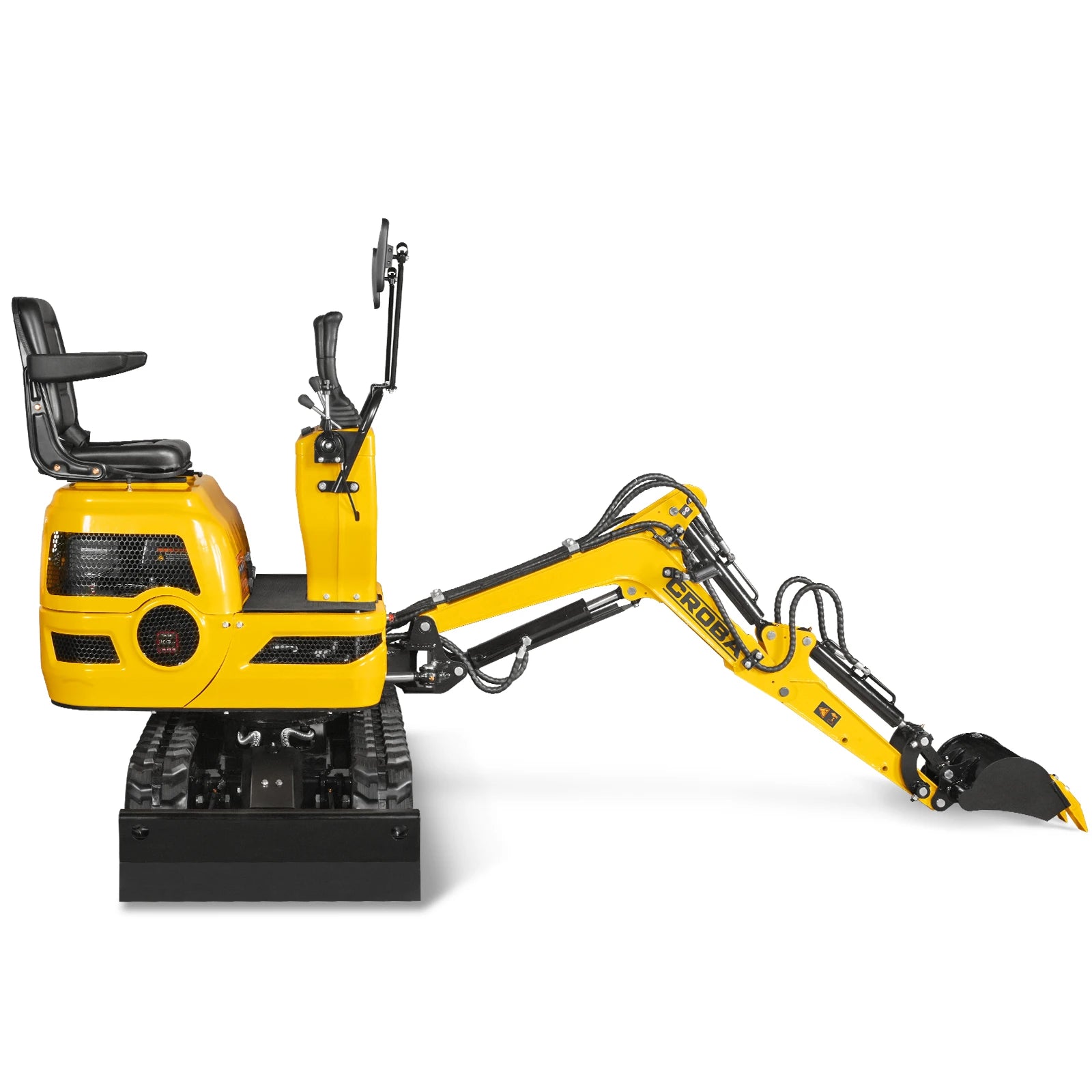

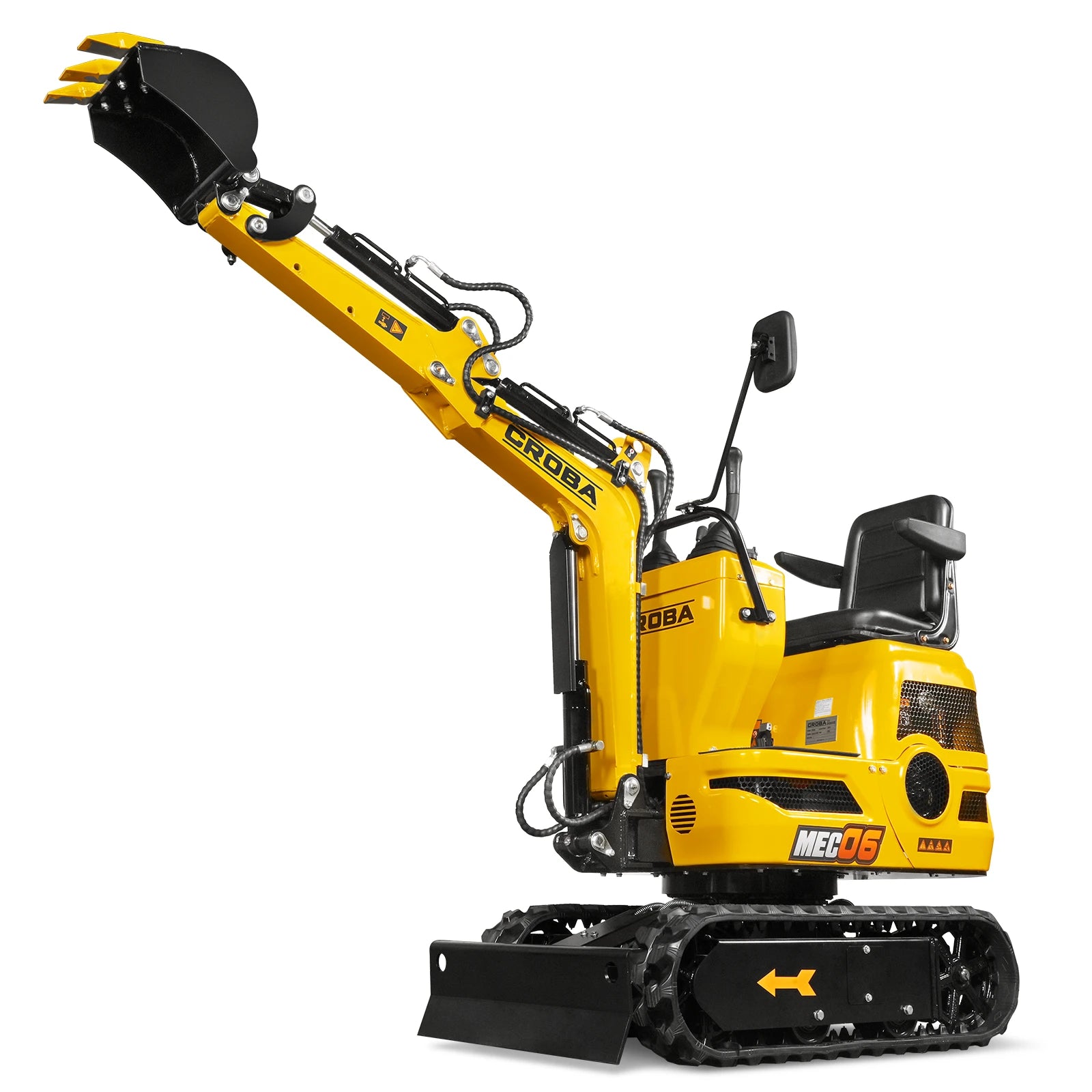

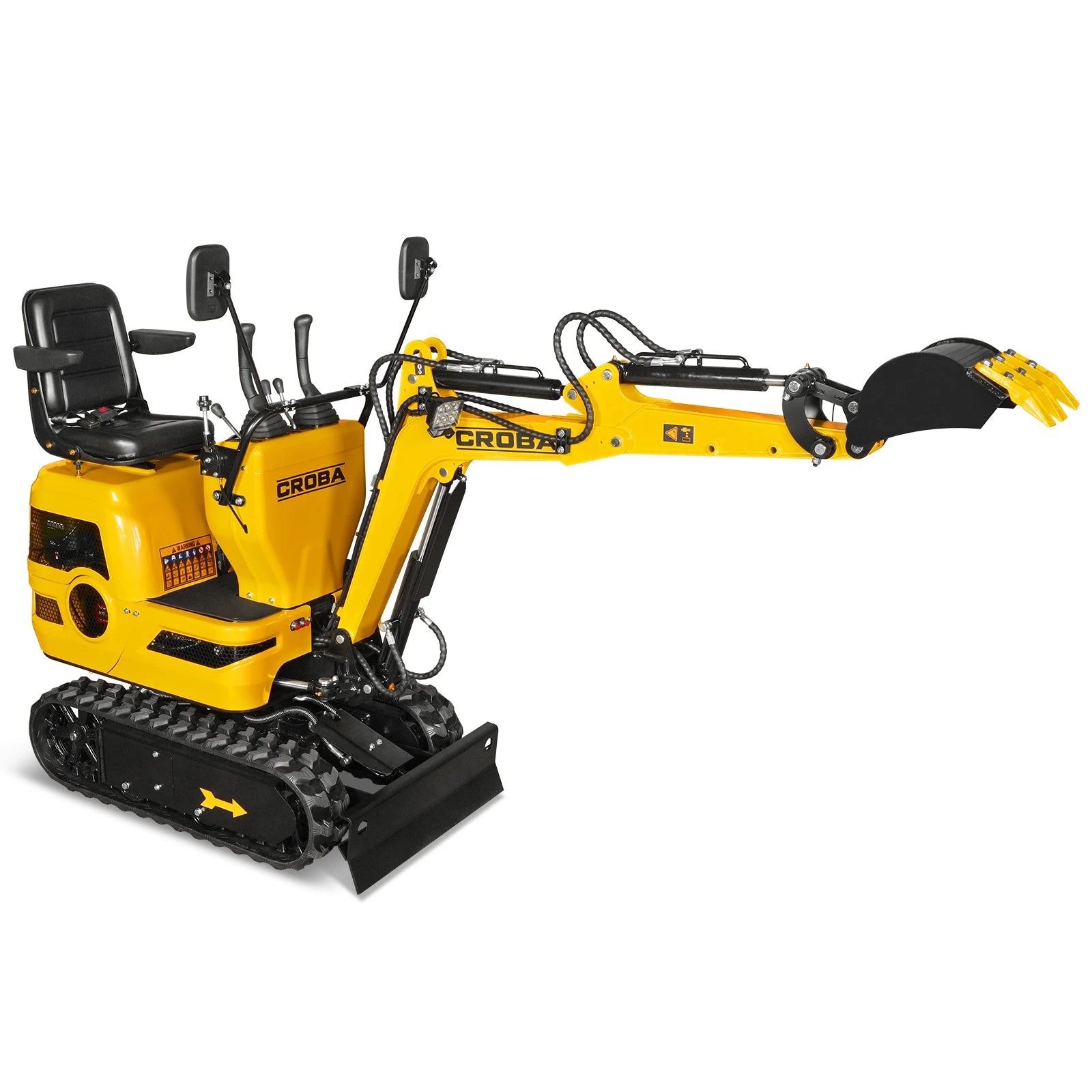

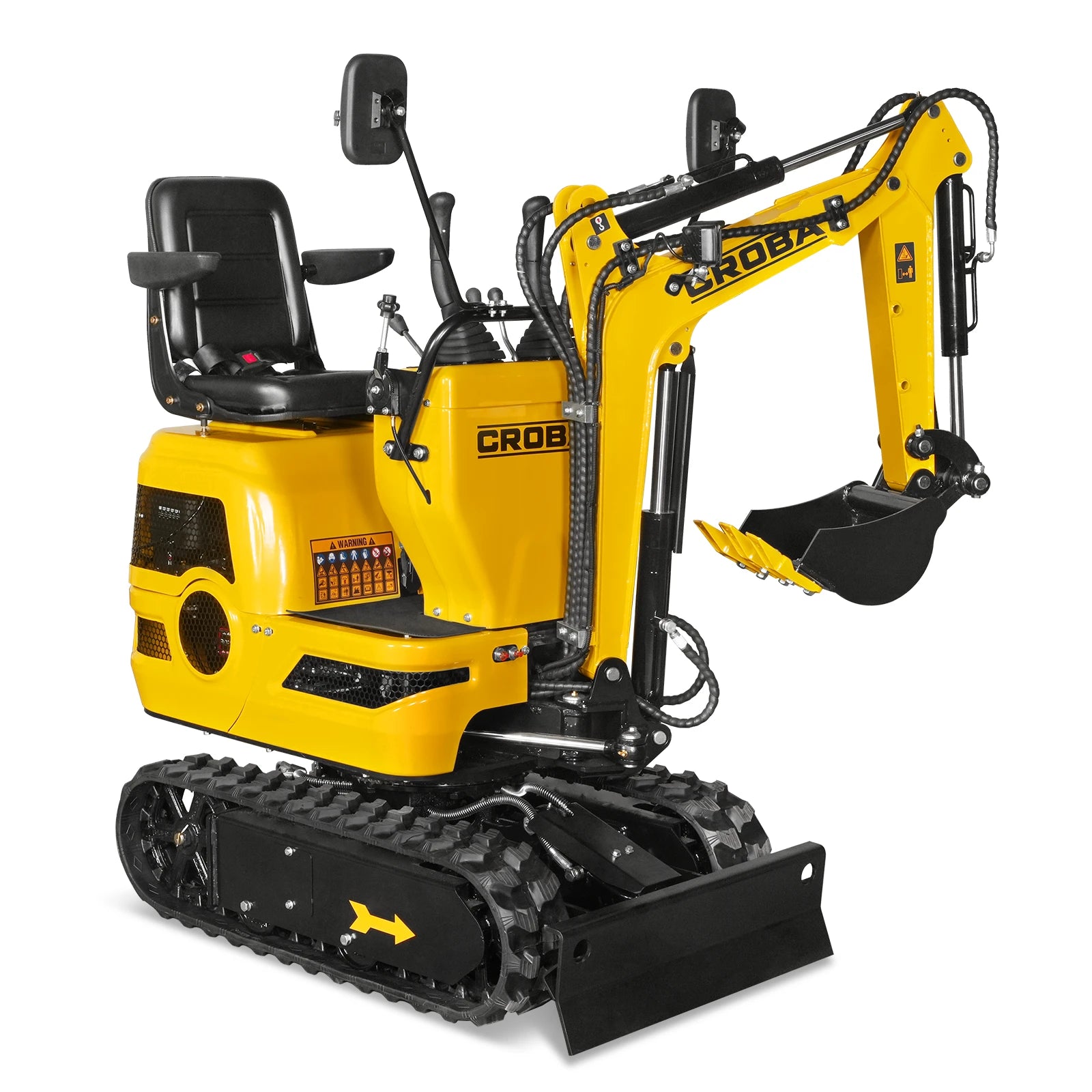

Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3″ Max. Digging Depth, 0.6Ton, 1345 LBS Operating Weight, MEC06
€3,999.20
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €4,148.20 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

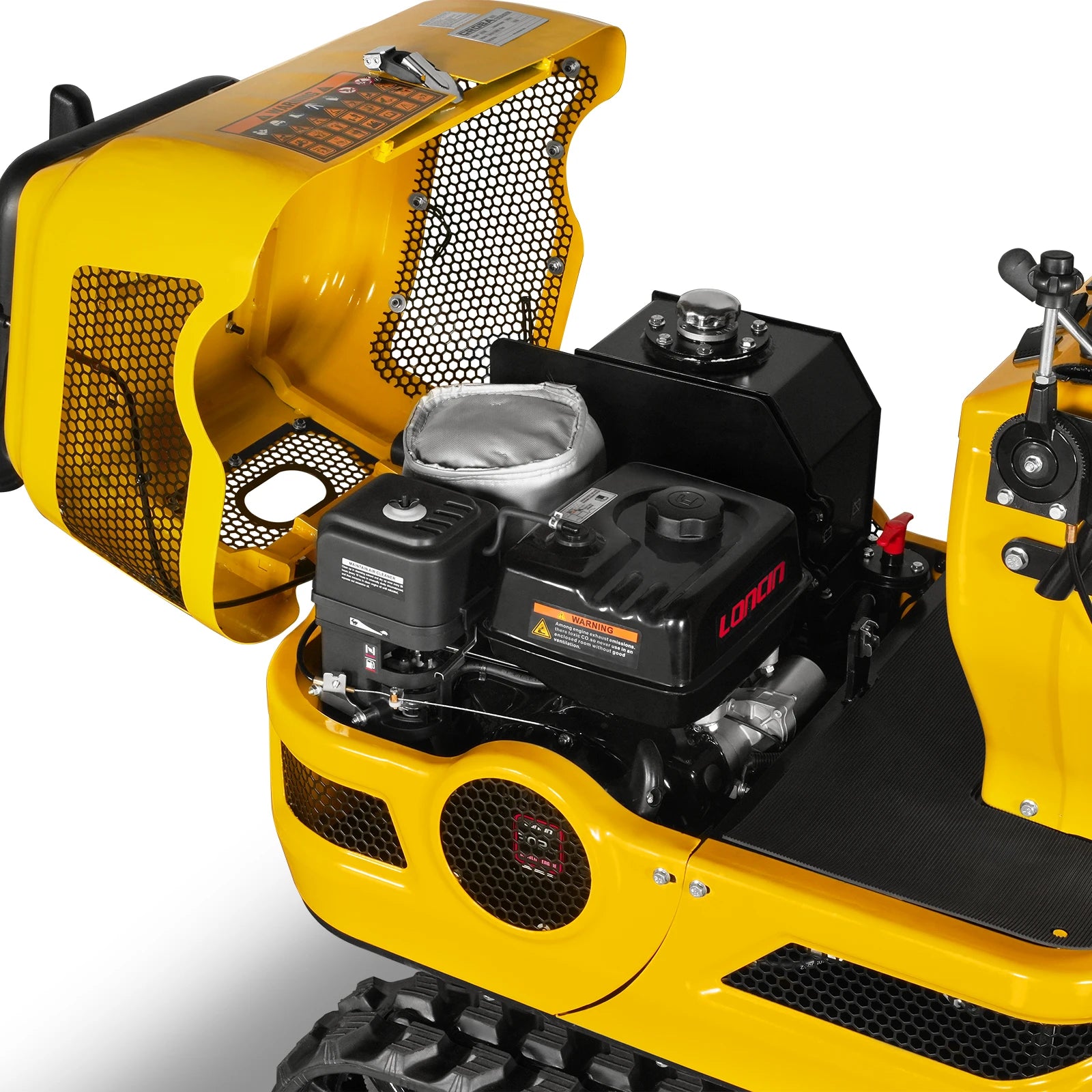

This mini excavator runs a 300cc, 9-horsepower Loncin G300FDA engine with electric start, built at a 0.6-ton class and 1345 pounds operating weight, with a maximum digging depth of 43.3 inches.
Scaled for its class
An 11.4-inch bucket with 0.53-cubic-foot capacity and a rated lift capacity of 330 pounds are both sized to match this engine's output rather than overloading it, and a slewing speed of 9.5 rpm lets the house rotate for side-dumping. Maximum gradeability is rated at 15 degrees, and a track ground pressure of 3.84 psi is meant to help the machine stay on top of soft ground rather than sinking in.
What to check before buying
Top travel speed is 1.12 mph, so this is a dig-in-place machine rather than one meant to cover ground quickly, and a lift radius of 78.7 inches sets how far from the machine you can safely lift a load. Electric start means keeping its battery charged between jobs rather than pulling a cord.
What engine does it use? A 300cc, 9-horsepower Loncin G300FDA engine with electric start.
How deep can it dig? Up to 43.3 inches at maximum digging depth.
New condition, with a 1-year warranty covering both the machine and engine as a single unit. This engine's exhaust is covered by California's Proposition 65 rule requiring disclosure of cancer and reproductive-harm risk for equipment like it.
Specifications
| Operating Weight | 1345 lb | Hydraulic Oil Tank Capacity | 2.64 gal |
| Standard Bucket Capacity | 0.53 ft³ | Auxiliary Std Flow | 4.76 gal/min |
| Standard Bucket Width | 11.4 in | Max. Tractive Force | 742 lbf |
| Max. Travel Speed | 1.12 mile/h | Arm Digging Force | 1012 lbf |
| Slewing Speed | 9.5 RPM | Bucket Digging Force | 1911 lbf |
| Max. Gradeability | 15° | Rated Lift Capacity | 330 lb |
| Track Ground Pressure | 3.84 psi | Lift Radius | 78.7 in |
| Operating Range | |||
| Max.Digging Radius On Ground | 82.7 in | Max. Vertical Digging Depth | 45.3 in |
| Max. Digging Depth | 43.3 in | Min. Turning Radius | 47.2 in |
| Overall Operating Height (Fully Raised) | 79.9 in | Max. Lifting Height Dozer Blade | 5.5 in |

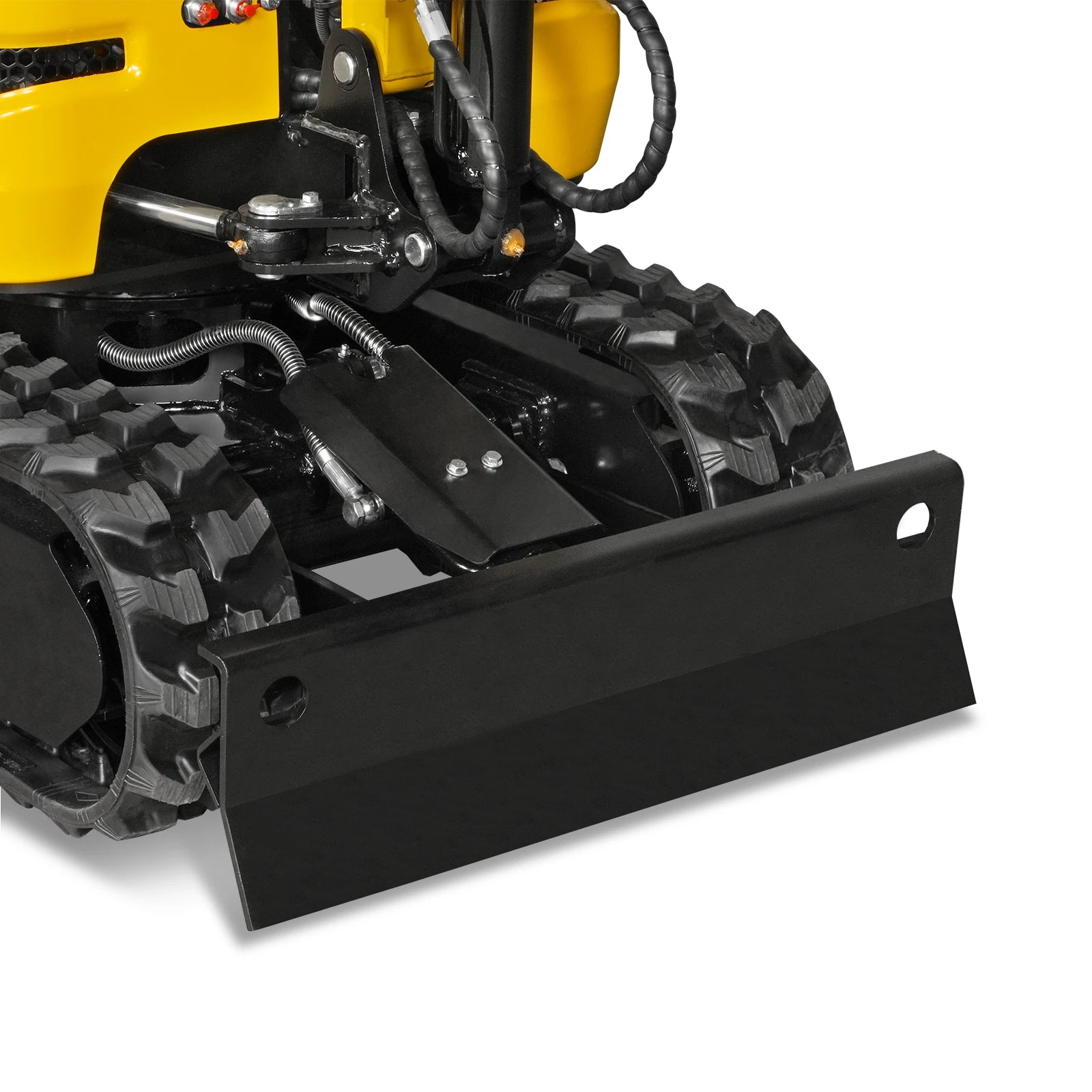

| Max. Digging Radius | 90.6 in | Max. Depth Dozer Blade | 5.5 in |
| Max. Unloading Height | 67.3 in | ||

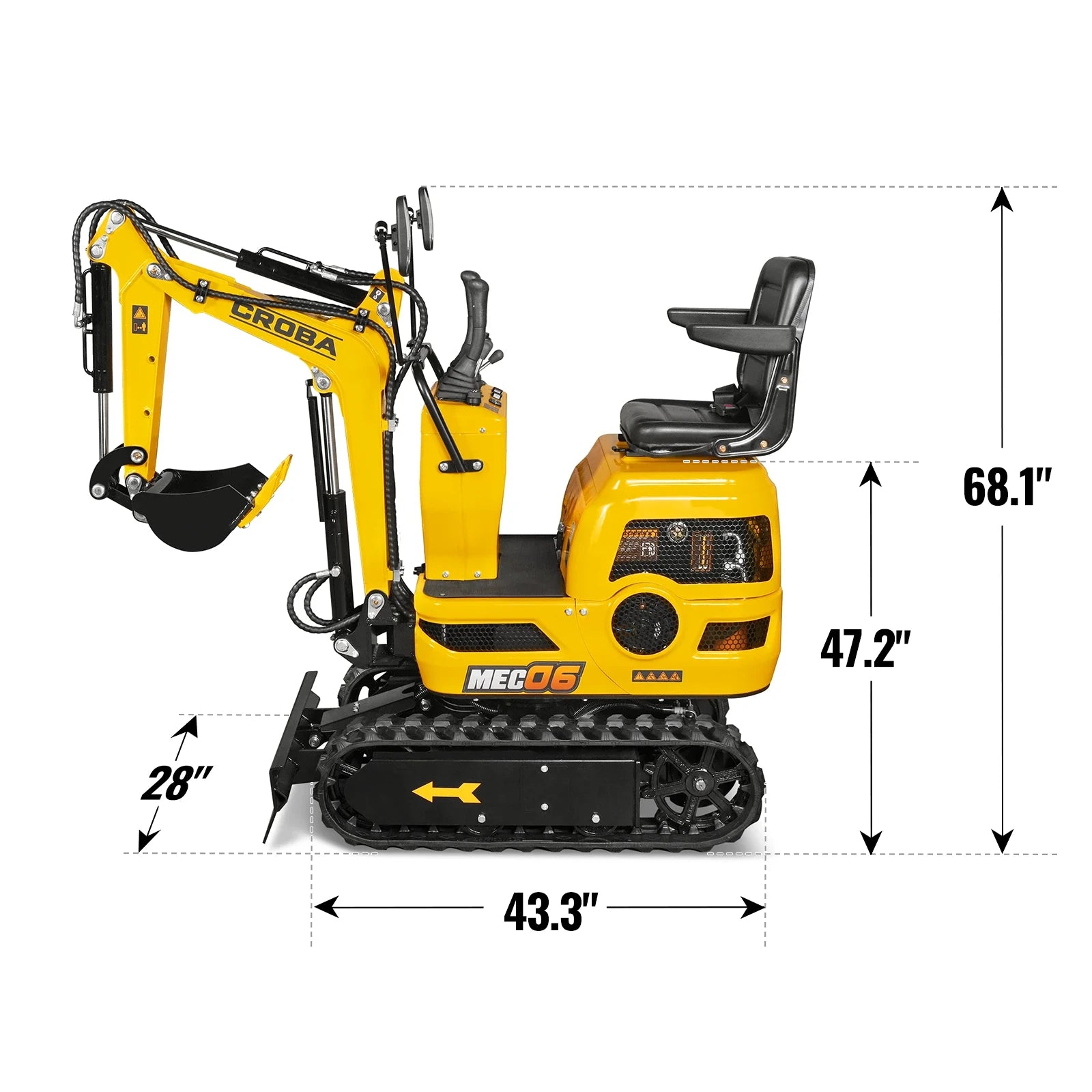

| Main Dimensions | |||
| Wheel Track | 31.5 in | Track Height | 12.6 in |
| Track Length | 43.3 in | Transportation Length | 83.4 in |
| Upper Chassis Ground Clearance | 4.5 in | Height Of Seat To Ground | 47.2 in |
| Counterweight Turning Radius | 23.6 in | Overall Height | 68.1 in |
| Chassis Width | 28 in | Boom Swing-Right | 65° |
| Track Width | 5.9 in | Boom Swing-Left | 55° |
| Engine | |||
| Model | Loncin G300FDA | Max. Net Torque | 20.3 N.m/2500 RPM |
| Displacement | 300 cc; 9 HP | Fuel Tank Capacity | 1.45 gal |
| Engine Type | 4-stroke, overhead valve, single cylinder | Engine Oil Capacity | 0.25 gal |
| Start Type | Electric start | Engine Oil Type | 10W-30 |
| Rated Power | 6.8 KW/3600 RPM | ||
| Service | |||
| Package Method | Steel Frame Packaging | Package Size | 89x29x49 in |
| Warranty for Machine/Engine | 1 Year | Weight (N.W./G.W.) | 1345/1510 lb |
Equipment Commissioning & Pre-Start Checklist
- Check engine oil, hydraulic fluid, and coolant levels to manufacturer-specified dipstick/sight-glass marks.
- Inspect fuel shut-off valve, air filter element, and hydraulic hose fittings for secure connections.
- Verify all safety pins, locks, hydraulic couplers, and guards are secured before starting.
- Allow a 3–5 minute warm-up period at low idle to circulate lubricants and hydraulic oil prior to applying load.
