Power Equipment

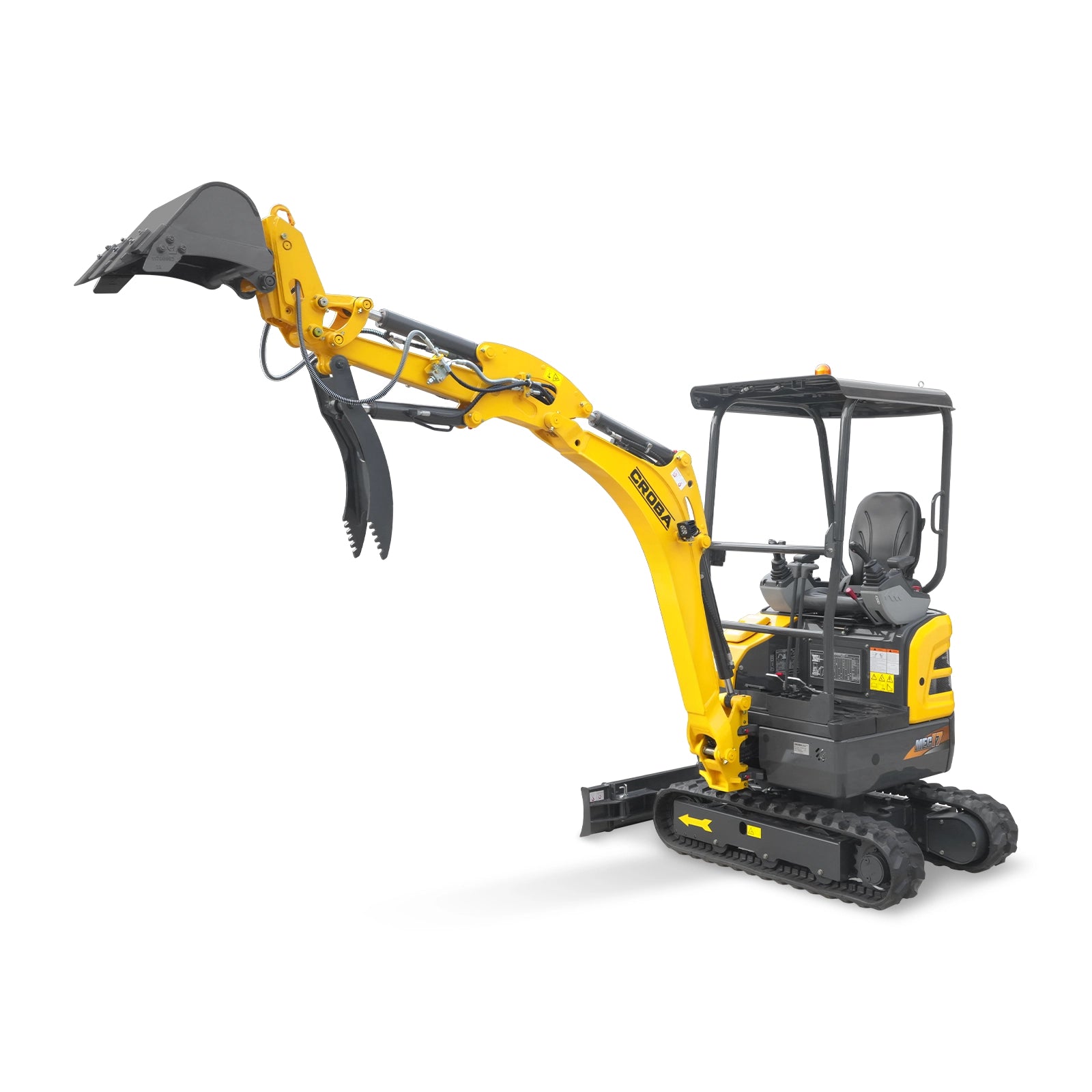

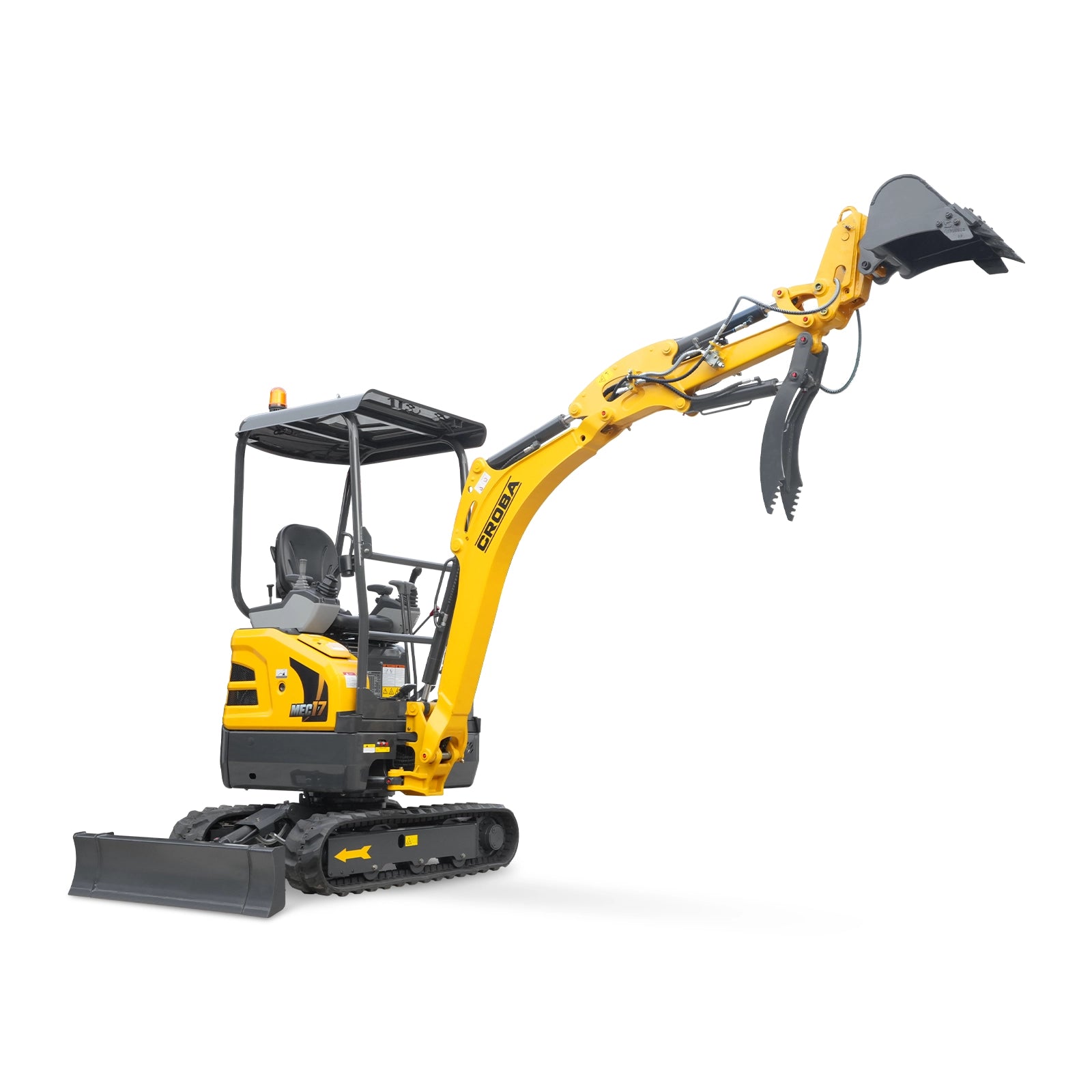

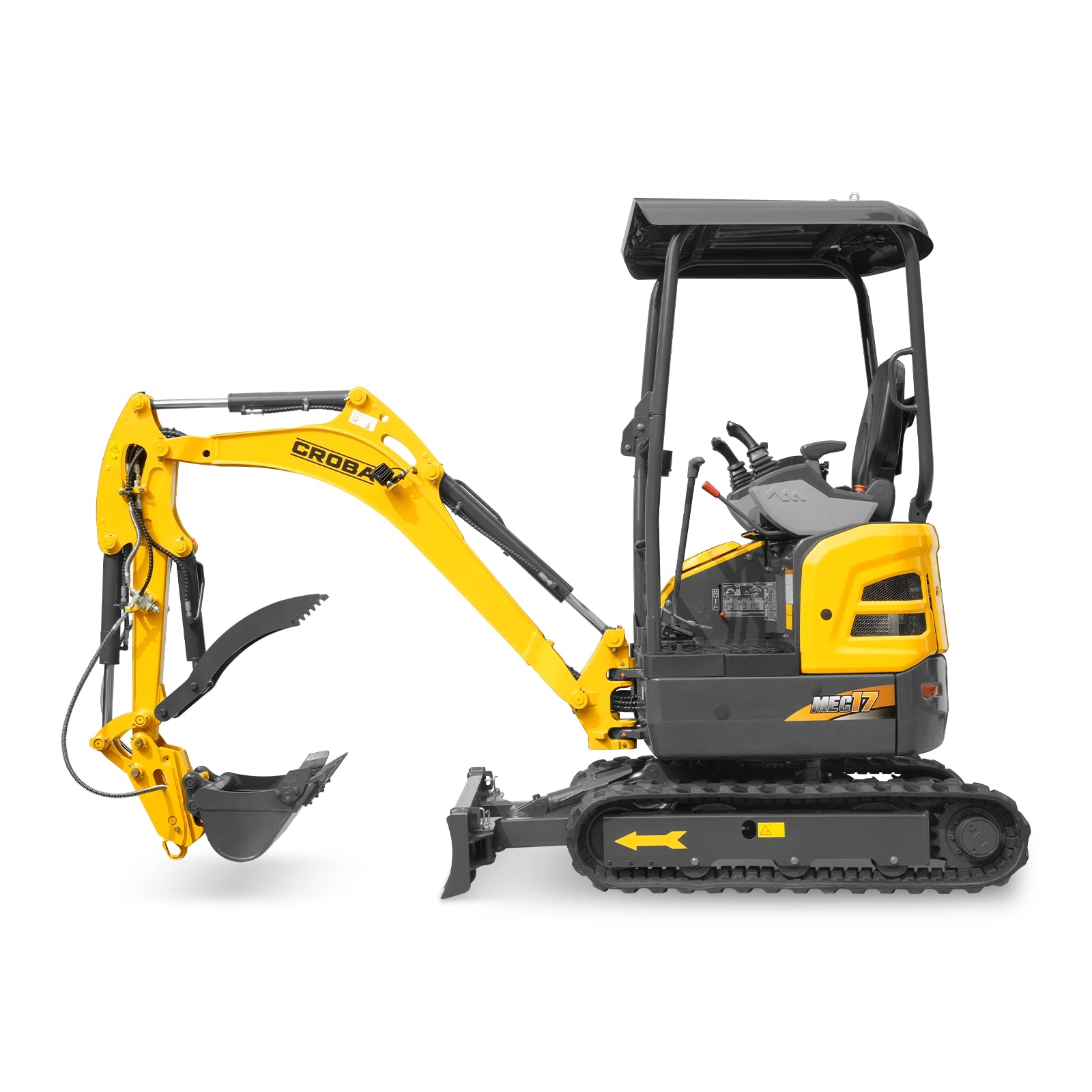

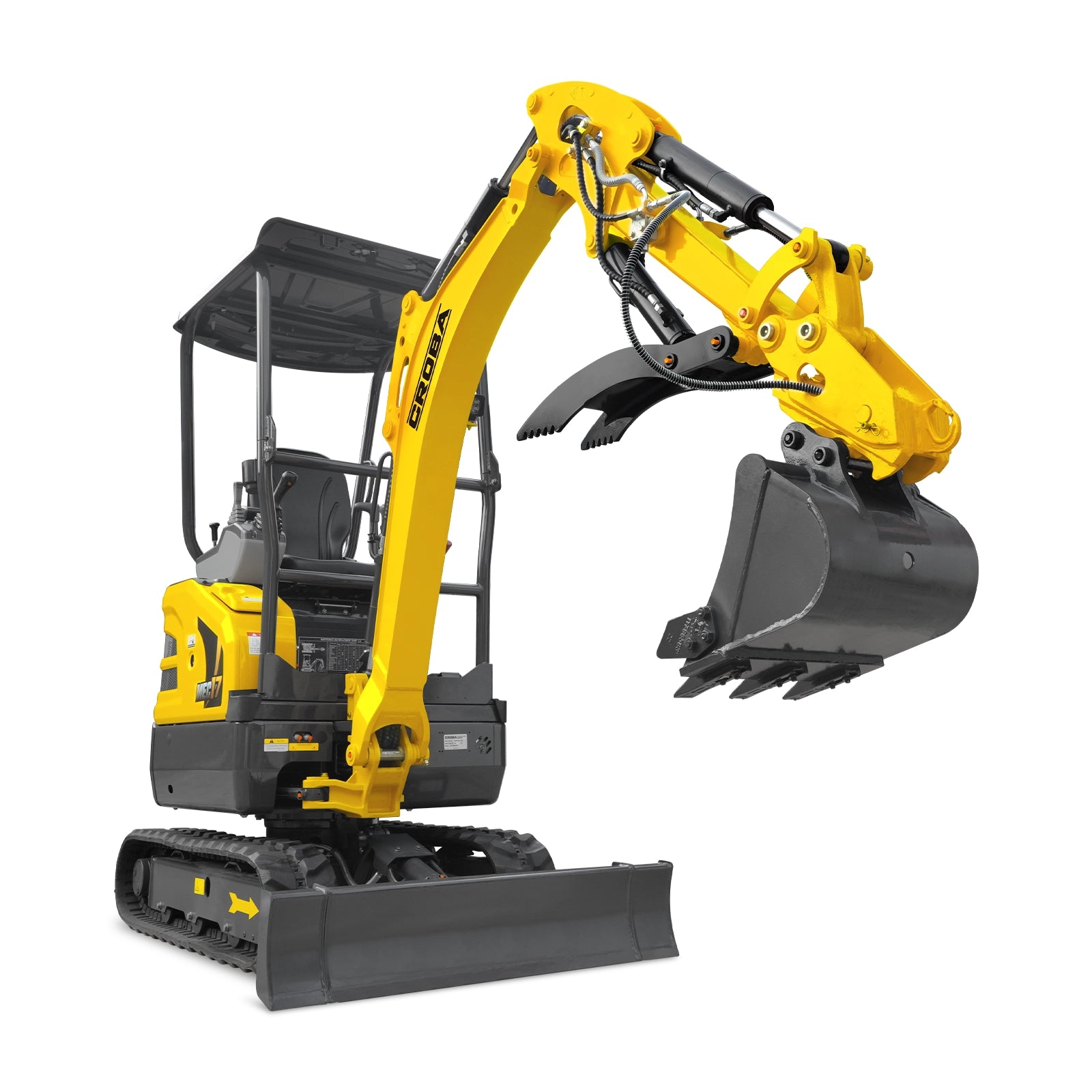

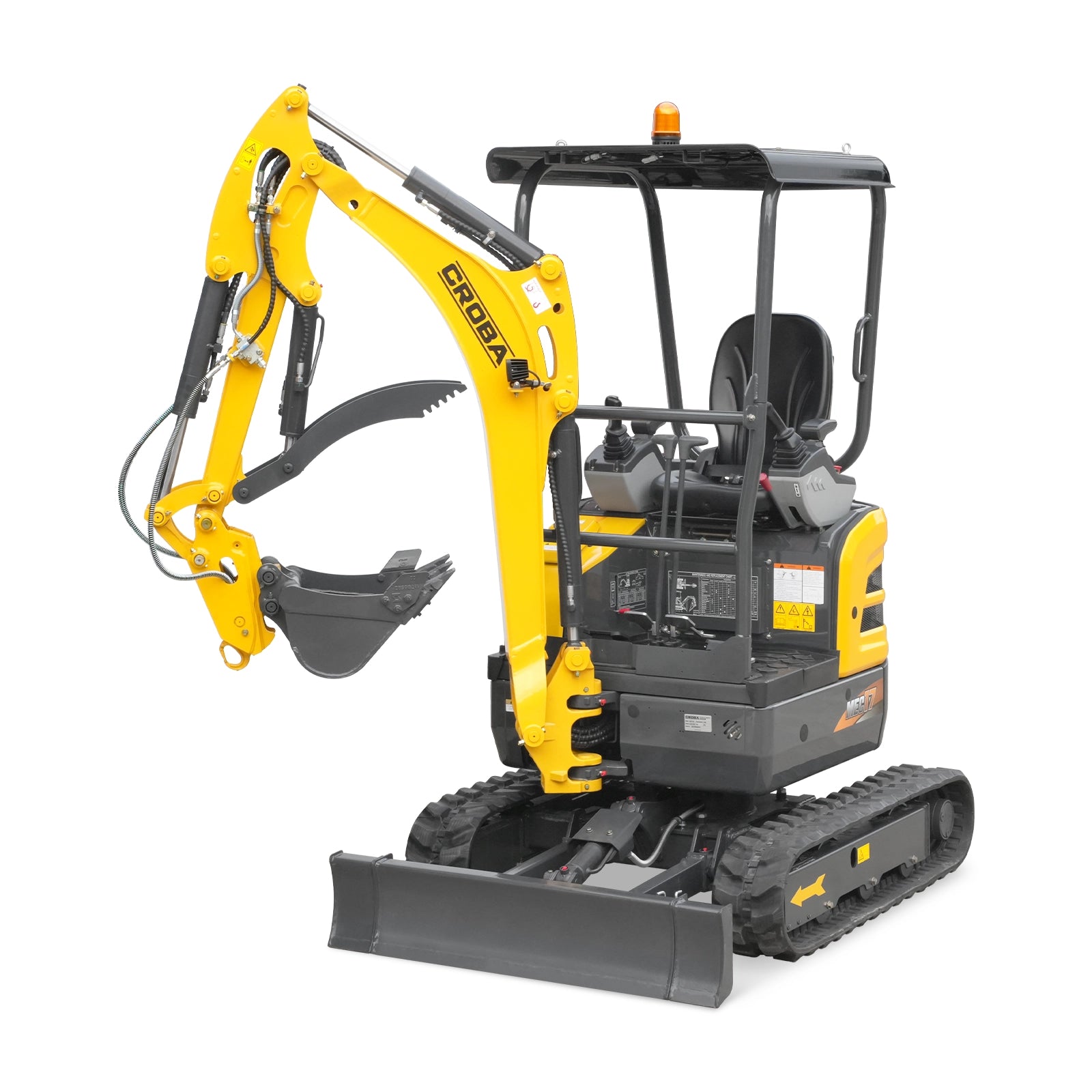

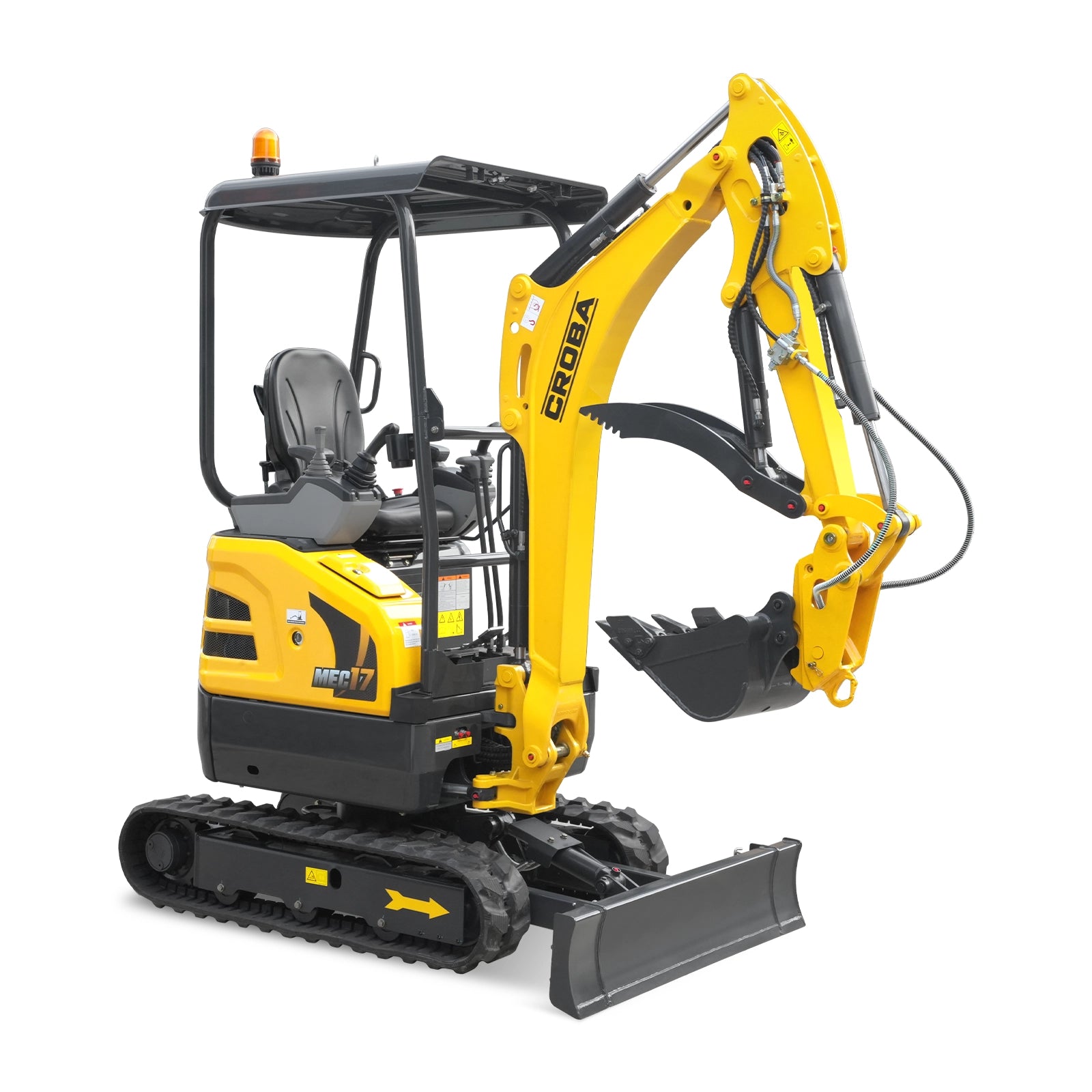

Mini Compact Excavator Kubota D902 Engine, 95″ Max. Digging Depth, 1.7 Ton, 4190 LBS Operating Weight, MEC17PRO
€23,999.20
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €24,148.20 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

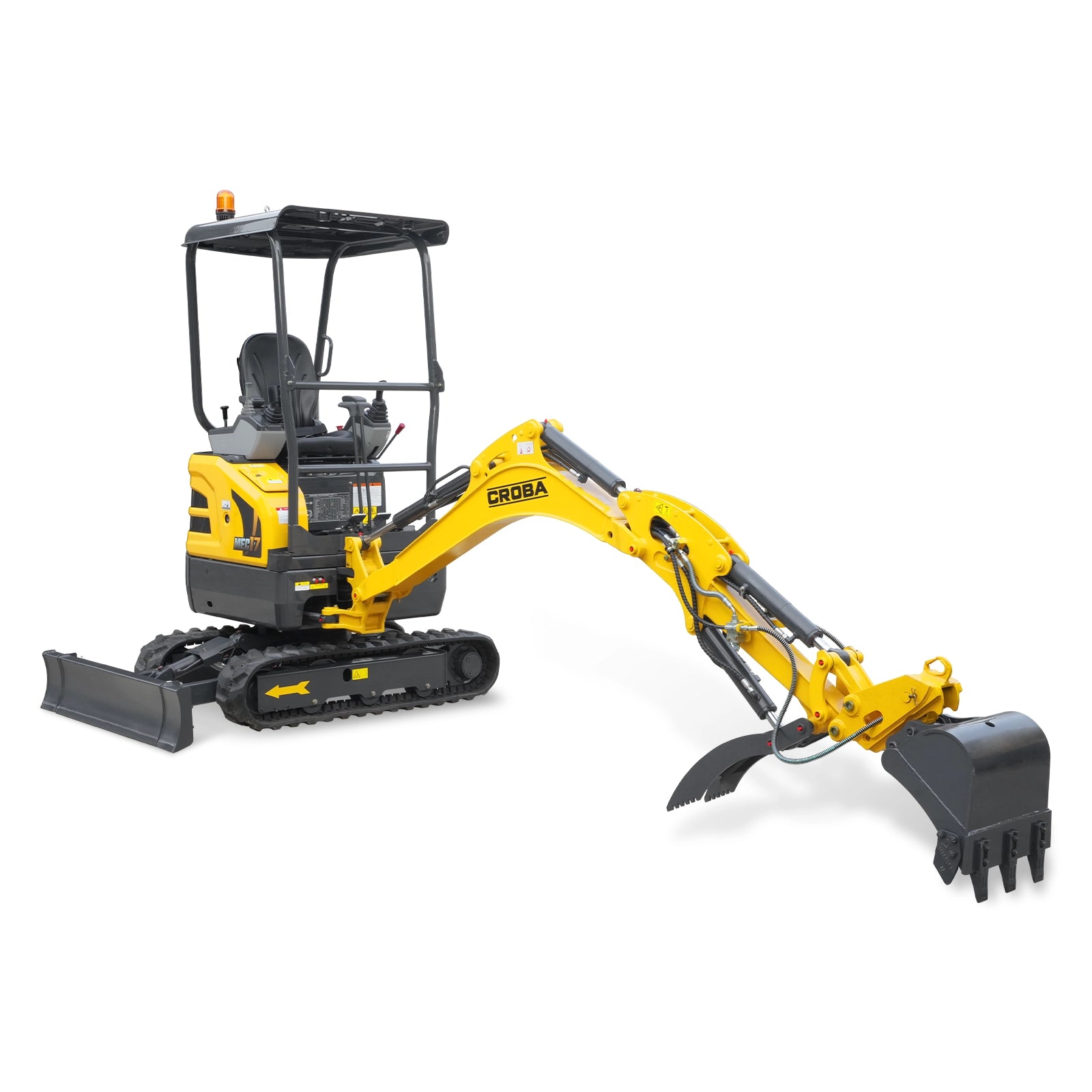

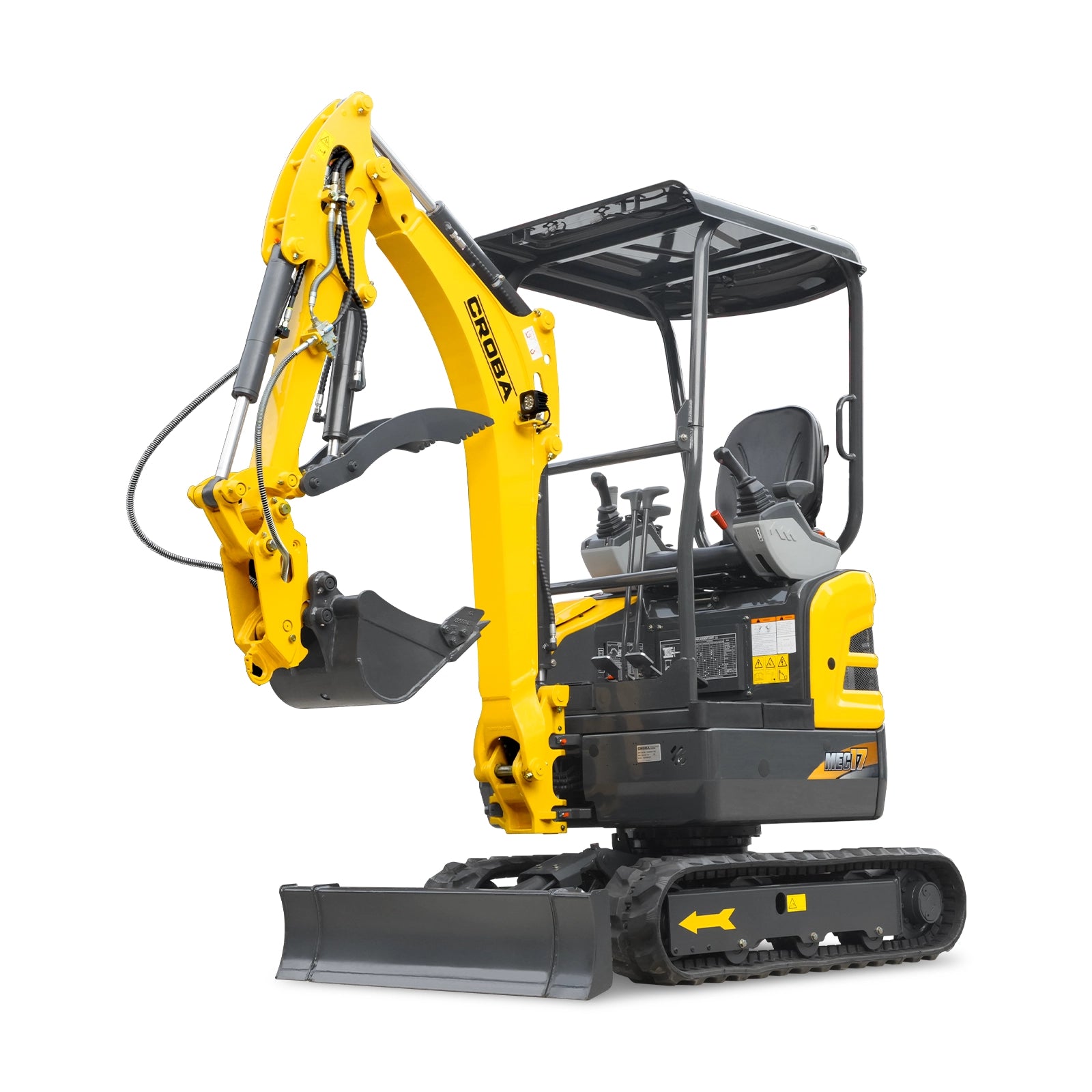

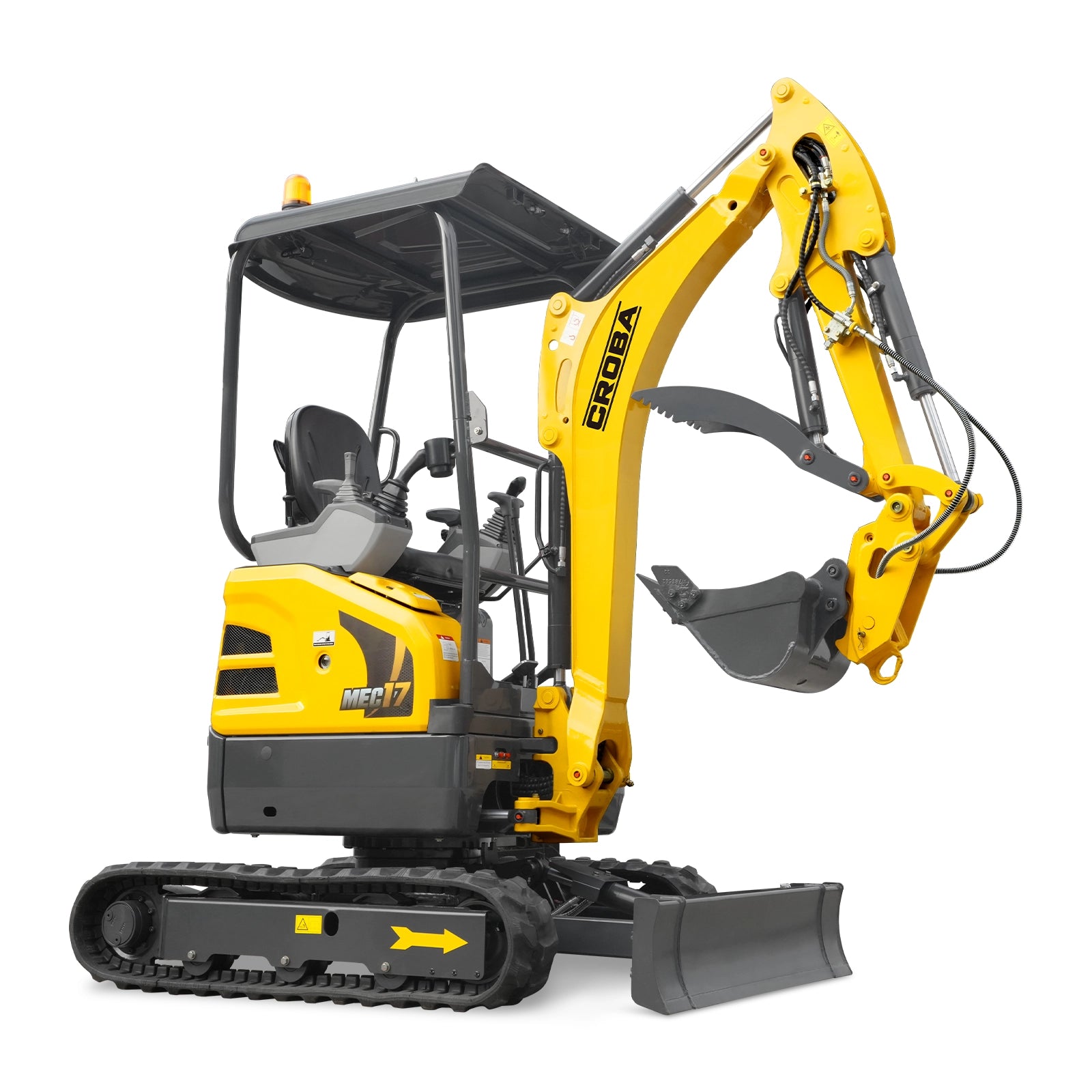

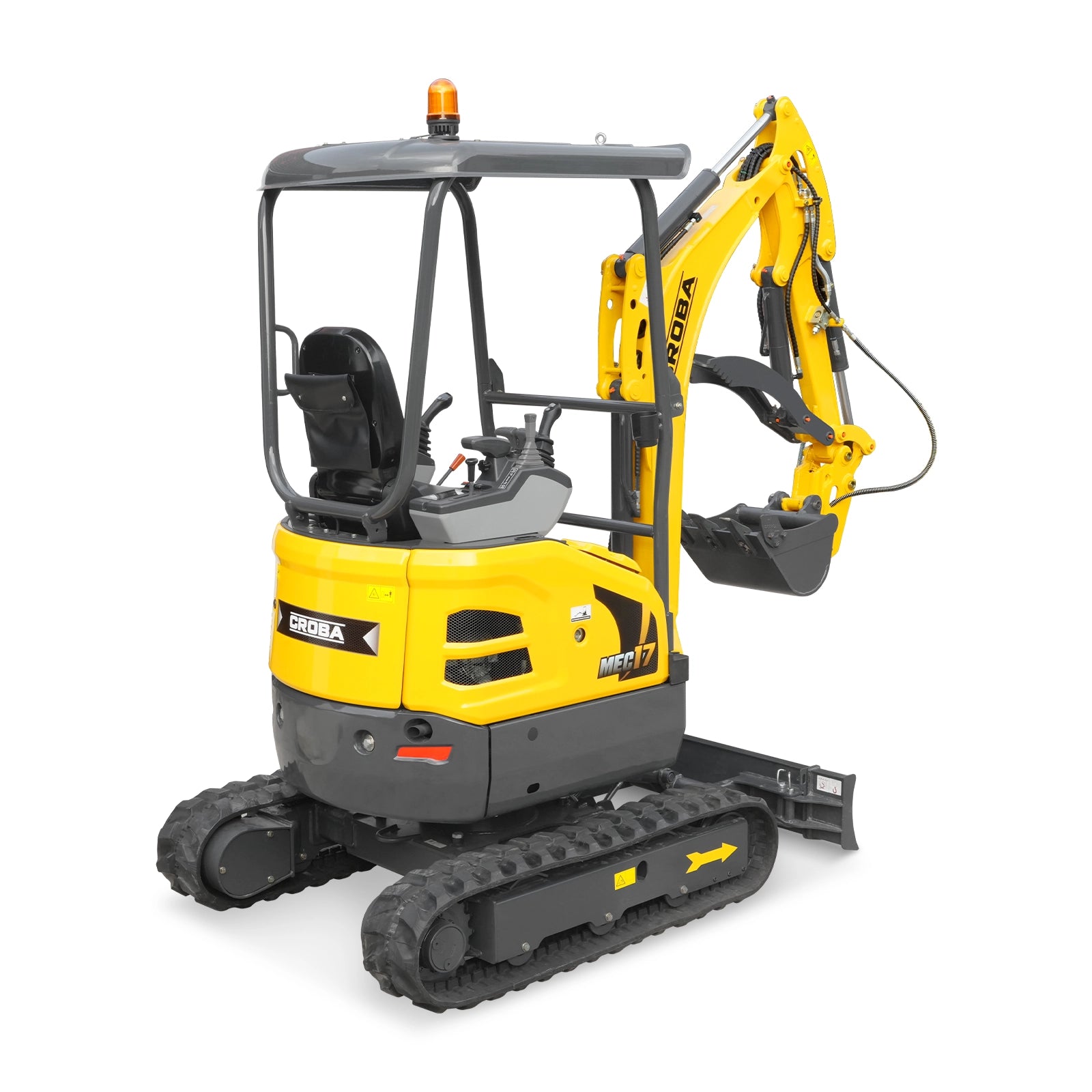

This configuration shares its 15.8-net-horsepower, 3-cylinder Kubota D902 diesel with the shorter-arm version in this lineup, but a longer 43.3-inch arm stretches maximum digging depth to 95 inches and brings operating weight to 4190 pounds.
Reach built for depth

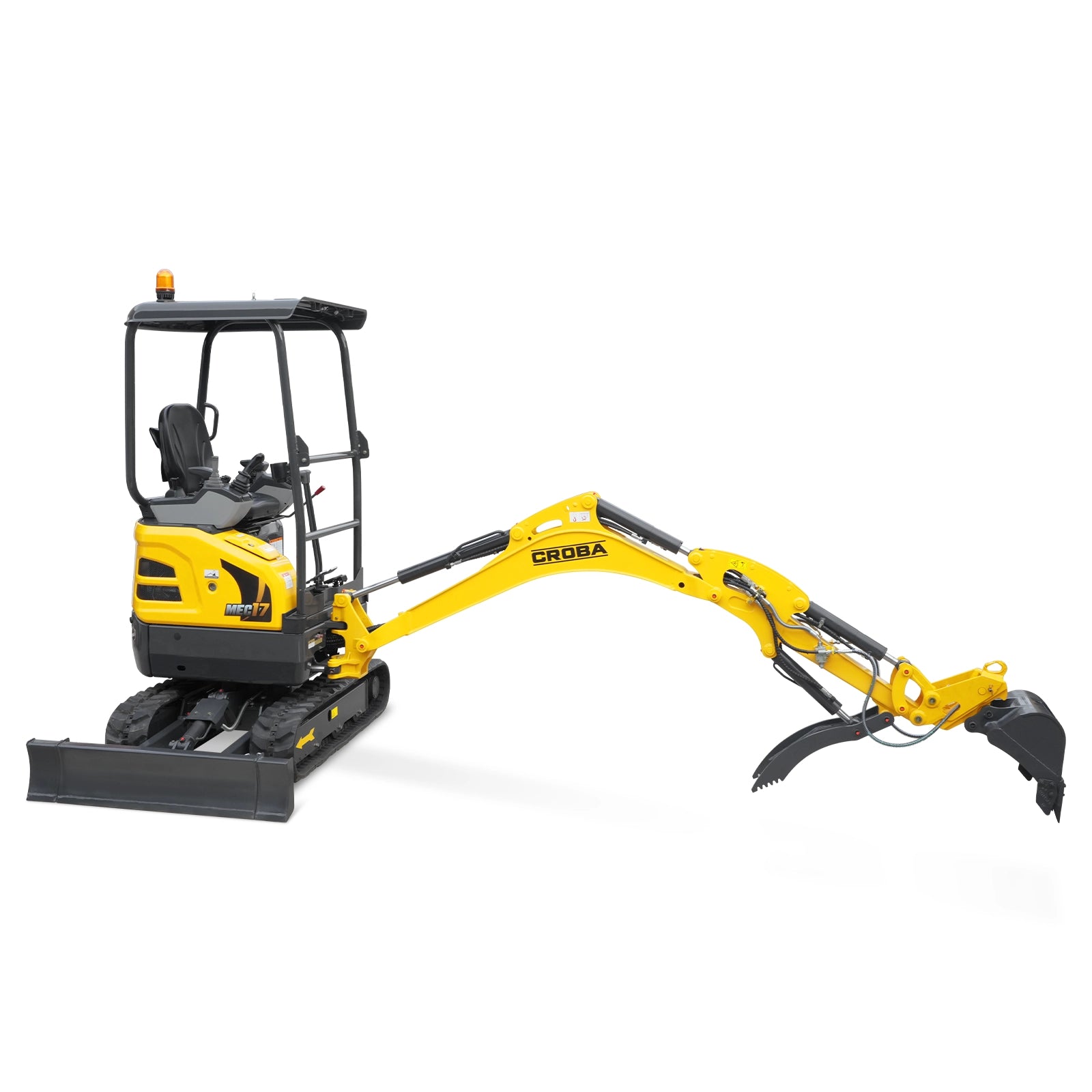

That longer arm is what pushes this machine's maximum digging depth to 95 inches, useful for foundation work, utility trenching, or any job needing more vertical reach than a standard-arm compact excavator provides without stepping up to a larger machine class entirely.
Hydraulics for attachments

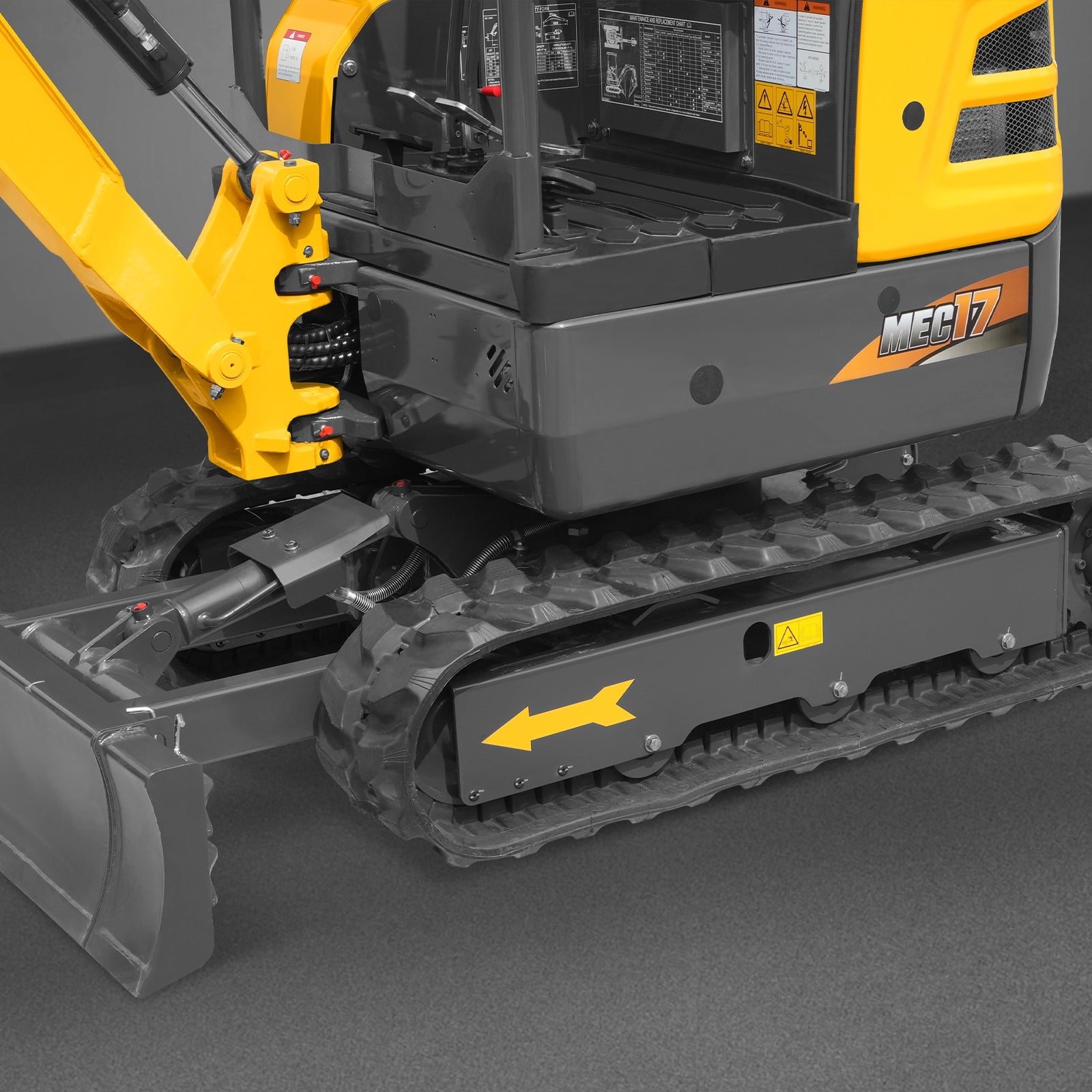

Beyond the primary hydraulic circuit that runs the digging arm and bucket, this unit adds a secondary auxiliary hydraulic circuit, which matters if you plan to run attachments that need their own independent flow rather than sharing the primary line. A Danfoss swing motor turns the house at 9.5 rpm, and six track rollers under rubber tracks keep it stable while digging.
What makes this different from the shorter-arm D902 excavator? A longer 43.3-inch arm for a 95-inch maximum digging depth, plus a second auxiliary hydraulic circuit for attachments.
What is the operating weight with the longer arm fitted? 4190 pounds.
New condition. Coverage here matches the standard D902 terms: 2 years or 2,000 hours on the engine, whichever comes first, and 1 year on the machine. As with other diesel-powered equipment, this excavator's exhaust falls under California's Proposition 65 cancer and reproductive-harm disclosure rule.
Specifications
| ENGINE | |||
| Model | Kubota D902 | Rated speed | 2300rpm |
| No.Of Cylinders | 3 | Displacement | 54.8in³ |
| Stroke | 2.9in | Engine Output, Net | 15.8hp |
| Bore | 2.83in | Warranty For Engine | 2-Year or 2,000-Hour Warranty, Whichever Comes First. |
| TRAVEL SYSTEM | |||
| Track Roller Qty | 6 | Maximum Traction Force, Low Speed | 4047lbf |
| Type of tracks | Rubber | Ground Clearance | 5.7in |
| Travel Speed, High | 2.67 mile/h | Ground Pressure | 4.2psi |
| Travel Speed, Low | 1.37 mile/h | Gradeability, Maximum | Maximum 30 degrees |
| WEIGHT | |||
| Operating Weight | 4190lb | ||
| HYDRAULIC SYSTEM | |||
| Pump Flow at 2,300 rpm | 17gpm | Auxiliary Circuit, Secondary, Flow | 2.6gpm |
| Auxiliary Circuit, Primary, Flow | 9.1gpm | ||
| SWING SYSTEM | |||
| Swing Motor | Danfoss | Swing Speed | 9.5rpm |
| Swing Motor Type | SW2.5K | Tail Swing Radius | 25.6in |
| DIGGING FORCE | |||
| Boom Length | 72in | Bucket Digging Force | 3597lbf |
| Arm length | 43.3in | Arm Digging Force | 2136lbf |
| REFILING CAPACITIES & LUBRICATIONS | |||
| Fuel Tank | 5gal | Hydraulic Oil Tank | 3.6gal |
| Engine Oil | 1gal | System Capacity | 5.7gal |
| BUCKET | |||
| Bucket Capacity | 1.4ft³ | Bucket Width | 17.7in |
| SCOPE OF WORK | |||
| Max.Digging Height | 147in | Min Turning Radius Of Working Device | 57in |
| Max.Dumping Height | 104in | Max. Lift Above Ground | 11in |
| Max.Digging Depth | 95in | Max. Drop Below Ground | 7.5in |
| Max.Vertical Digging Depth | 81in | Boom Swing, Left | 65° |
| Max Digging Radius | 160in | Boom Swing, Right | 50° |
| Max.digging Radius At Ground Level | 157in | ||
| DIMENSIONS | |||
| Overall Length | 133in | Blade Height | 11.8in |
| Ground Contact Length （Transportation） | 96in | Crawler Wheel Base | 48.4in |
| Overall Width （Retracted/Expanded) | 39/51in | Shoe Width | 9.1in |
| Overall Height（To Top Of Cab） | 94.7in | Track Length | 62.7in |
| Counter Weight Ground Clearance | 18in | Track Gauge（Retracted/Expanded) | 30/42in |
| Ground Clearance | 5.7in | Track Width（Retracted/Expanded) | 39/51in |
| Blade Width（Retracted/Expanded) | 39/51in | ||
| SERVICE | |||
| Package Method | Wood Case | Warranty For Machine | 1 Year |
| Packing Size | 112.6×43.7×99.2 in | Weight (N.W./G.W.) | 4012/4580lb |
Equipment Commissioning & Pre-Start Checklist

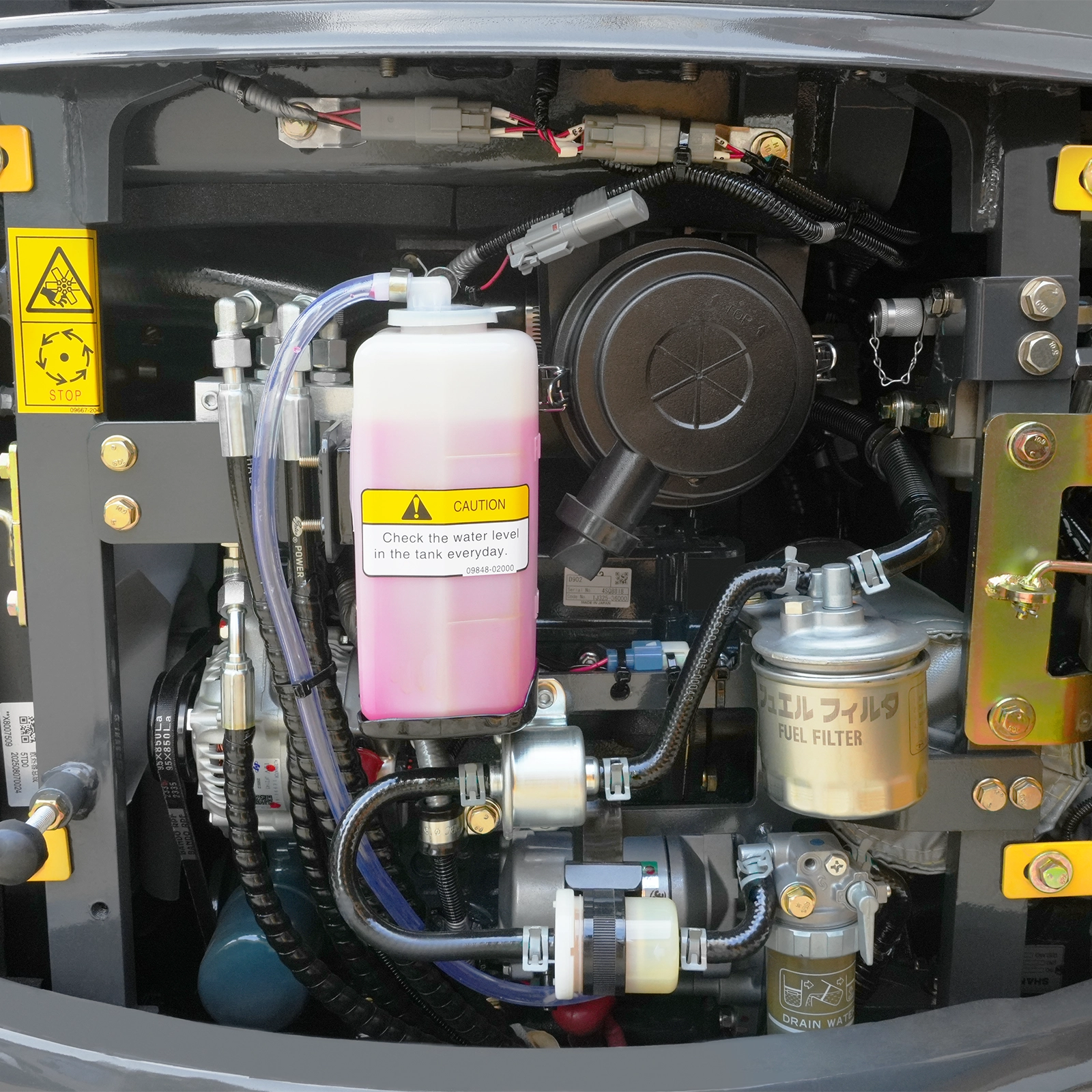

- Check engine oil, hydraulic fluid, and coolant levels to manufacturer-specified dipstick/sight-glass marks.
- Inspect fuel shut-off valve, air filter element, and hydraulic hose fittings for secure connections.
- Verify all safety pins, locks, hydraulic couplers, and guards are secured before starting.
- Allow a 3–5 minute warm-up period at low idle to circulate lubricants and hydraulic oil prior to applying load.
