In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Crate Engines
GM Performance ZZ632/1000 Deluxe 19432060 1000HP
€28,552.82
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €28,701.82 delivered

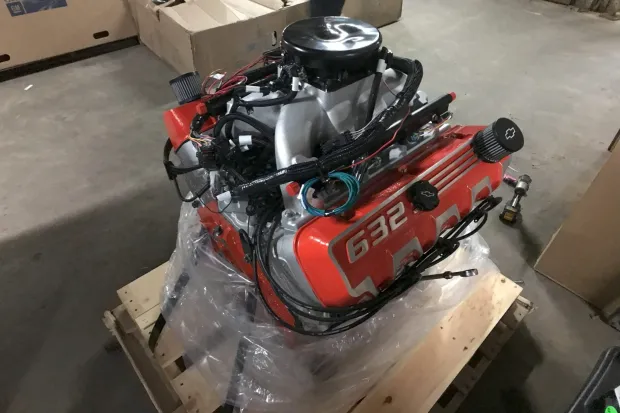

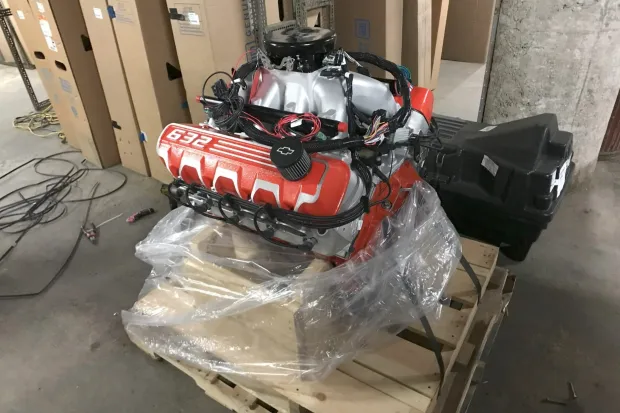

- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Chevrolet Performance's part 19432060, the ZZ632/1000 Deluxe, is a new, naturally aspirated tall-deck big-block V8 at 632 cubic inches, reaching an output near 1000 horsepower when run on premium fuel, built on a cast-iron Bowtie block with four-bolt mains and an all-forged rotating assembly.
What the build includes
- Forged 4340 steel crankshaft, forged H-beam connecting rods, and forged aluminum 2618 pistons, with a bore and stroke of 4.600 by 4.750 inches
- Aluminum spread-port cylinder heads with 70cc chambers, 2.450 inch intake and 1.800 inch titanium exhaust valves
- Billet steel hydraulic roller camshaft with 0.780 inch intake and 0.782 inch exhaust lift, 270 degrees intake and 285 degrees exhaust duration at 0.050
- Aluminum high-rise single-plane intake manifold, a 4500-style throttle body, 86 lb/hr fuel injectors, and a pre-programmed self-learning EFI control system
Installing this big-block
The 12.0:1 compression engine runs a 58X crank-triggered, coil-near-plug ignition system on a dedicated valley plate, and Chevrolet Performance caps recommended RPM at 7,000. The throttle body ships uninstalled for crate fitment, so plan to mount it yourself, and you'll still need a starter, a high-pressure EFI fuel pump, and an air cleaner sized for the 4500-series flange. The cylinder head exhaust port layout calls for a custom exhaust, and manual-transmission builds should use an internally balanced flywheel. This engine is not set up for marine use.
Specifications
| Part Number | 19432060 |
|---|---|
| Engine Type | Chevy Tall-Deck Big-Block V-8 |
| Displacement | 632 cu in |
| Bore × Stroke | 4.600 in × 4.750 in |
| Block (P/N) | Cast iron Bowtie, 4-bolt mains, tall deck (19366599) |
| Crankshaft (P/N) | Forged 4340 steel (19366600) |
| Connecting Rods (P/N) | Forged steel H-beam (19432392) |
| Pistons (P/N) | Forged aluminum 2618 (19366601) |
| Intake Manifold (P/N) | Aluminum high-rise single-plane (19366614) |
| Throttle Body (P/N) | 4500-style (19366624) |
| Fuel Injectors (P/N) | 86 lb/hr (19432057) |
| Camshaft (P/N) | Billet steel hydraulic roller (19432531) |
| Valve Lift | 0.780 in (intake) / 0.782 in (exhaust) |
| Duration @ 0.050 in | 270° intake / 285° exhaust |

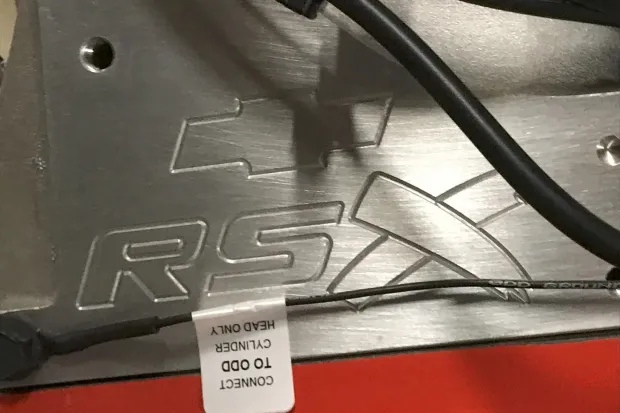

| Cylinder Heads (P/N) | Aluminum spread-port, RS-X, 70cc chambers (19431810) |
| Valve Sizes | 2.450 in intake / 1.800 in exhaust (titanium, 5/16 in stem) |
| Ignition | 58X crank-triggered, coil-near-plug |
| Compression Ratio | 12.0:1 (nominal) |
| Rocker Arms (P/N) | Forged aluminum, shaft-mount, 1.8:1 (19431272) |
| Water Pump (P/N) | Aluminum (14058915) |
| Oil Pan (P/N) | Steel, 8-quart (19366604) |
| Recommended Fuel | Premium pump, 93 octane or higher |
| Max Recommended RPM | 7,000 rpm |
| Balanced | Internal |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
Full terms: 30-day startup warranty · returns
