Crate Engines

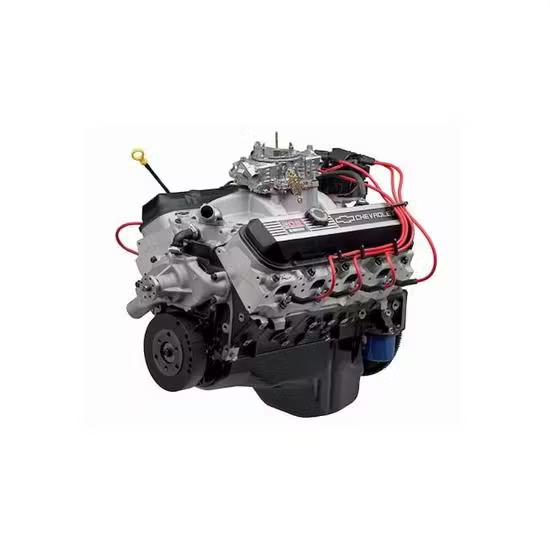

Chevrolet Performance 19433162 ZZ502/502 Deluxe B/B Crate Engine
€9,198.88
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €9,347.88 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Chevrolet Performance's ZZ502/502 Deluxe is a new 502 cubic inch big-block long block with high-flow aluminum oval-port cylinder heads and a hydraulic roller camshaft tuned for low-rpm torque, passing the 500 lb-ft mark by around 2,500 rpm. Unlike many bare long blocks in this lineup, it arrives with a carburetor already installed.
What makes this a deluxe package
Beyond the long block itself, this crate engine includes an HEI-type distributor, an 870 cfm carburetor, an aluminum short-style water pump, spark plugs and wires, a starter, and a 14-inch flexplate, which together trims the parts list you would otherwise need to assemble for a big-block build.
Bottom end and heads
Forged steel carries the load here: a forged steel crankshaft and shot-peened forged steel connecting rods work with forged aluminum pistons inside a cast-iron four-bolt-main block, externally balanced. Bore and stroke are 4.470 inches by 4.000 inches. The aluminum oval-port heads use 110cc chambers with 2.250-inch intake and 1.880-inch stainless steel exhaust valves, and intake duration runs 224 degrees against 234 degrees on the exhaust side. Compression comes in at 9.6:1.
Tuning notes
Recommended ignition timing is 32 degrees total at 4,000 rpm, and Chevrolet Performance rates maximum engine speed at 5800 rpm. Premium pump fuel is recommended, and the engine suits street and strip use rather than daily-driver economy.
Specifications
KEY SPECS | |
|---|---|
| MFG. Part # | 19331579 |
| Brand | Chevrolet Performance Parts |
| Crate Engine Type | Long Block |
| Engine Displacement | 502 cu. in. |
| Compression Ratio | 9.6:1 |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
GENERAL | |
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Sold in Quantity | Each |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
