Outboard Motors

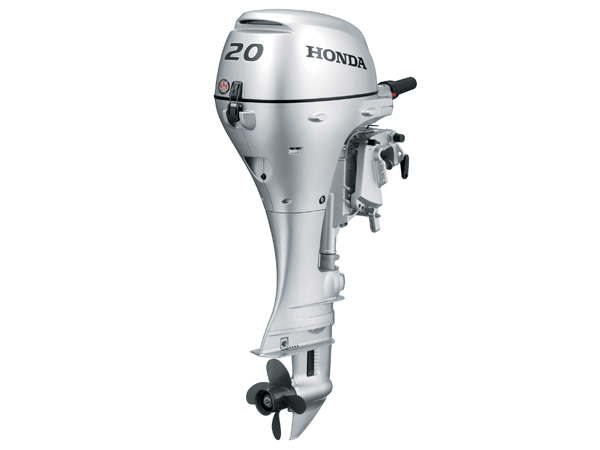

2017 Honda 20 HP BF20D3SH Outboard Motor
€1,330.13
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,419.13 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Honda's 2017 BF20D3SH is the short-shaft, manual-start build of its 20 hp outboard, 15 inches on the transom bracket, with tiller steering throughout. Water circulates through the two-cylinder, 350cc block for cooling, PGM handles ignition duties, a carburetor meters 86-octane gasoline from the 3.2-gallon tank, and the tachometer tops out near 6000 once past 5000 at full throttle.
Fitment to check
Fifteen inches suits a shallower transom than the other, long-shaft build of this same engine; confirm which length your boat calls for before ordering so the propeller sits at the correct depth. Trim and tilt are both hand-operated here, and starting is by pull cord with no battery anywhere in the system.
Features built into this engine
An integrated carrying handle makes the motor easier to move on and off a boat, this engine carries Honda's 4-Front corrosion protection to help fight off salt and spray, and its wet-sump system is filled with FC-W 10W-30 oil. A 6-amp alternator will charge a battery for accessories while the engine runs, and each cylinder uses two valves in its SOHC head.
Common questions
Does this motor have power tilt? No, tilt is manual here. Is it saltwater rated? Yes. What warranty comes with it? Five years, Honda's coverage on this new engine. What's the gear ratio? 2.08:1, with forward, neutral, and reverse.
Specifications
| Model | BF20D3SH |
| Model Year | 2017 |
| SKU | BF20D3SH-17 |
| Weight | 114.0000 |
| Manufacturer | Honda |
| Country of Manufacture | Japan |
| Horsepower | 20hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 350 cc (21.5 cubic inches) |
| Bore and Stroke | 59 mm x 64 mm (2.3 x 2.5 inches) |
| Full Throttle RPM Range | 5,000-6,000 RPM |
| Ignition System | PGM-IG |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (86 octane) |
| Fuel Tank / Fuel Line | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | FC-W 10W-30 |
| Oil Capacity | Please Inquire. |
| Lubrication | Wet Sump |
| Alternator | 6-Amp (76 watt) |
| Cooling System | Water Cooled |
| Saltwater Rated | Yes |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Propeller | 9¼ x 10 inch 4-Blade Aluminum |
| Internal Battery | NO |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
Full terms: 30-day startup warranty · returns
