Outboard Motors

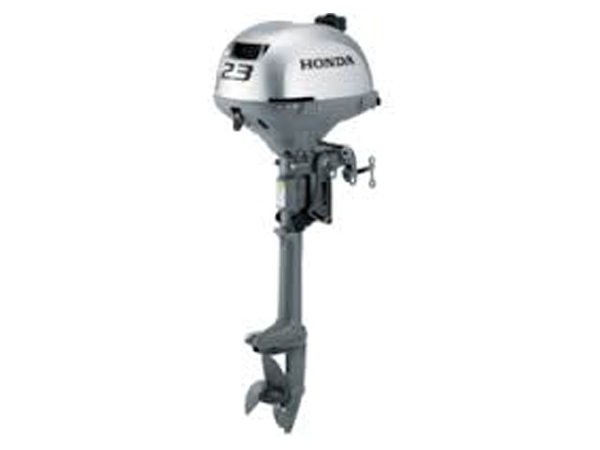

2017 Honda 2.3 HP BF2.3DHSCH Outboard Motor
€423.13
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €512.13 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Honda's 2017 BF2.3DHSCH pairs a 15-inch short shaft with the same 2.3 hp, forced-air-cooled, single-cylinder, 57.2cc engine sold under this family's longer-shaft DHLCH badge, aimed at small tenders, jon boats, and canoes rather than a deep-transom boat. Everything runs manually here, from starting to trim and tilt, through tiller steering, and the carbureted engine peaks close to 6000 rpm once past 5000 at full throttle. Built in China, it's new and rated for saltwater, with Honda's 5-year warranty.
Matching shaft to boat
Fifteen inches suits a shallow transom; Honda offers the same 2.3 hp block on a 20-inch shaft for taller boats, so confirm which length your hull calls for first. A 2.42:1 gear ratio drives a 3-blade polypropylene propeller, and steering swings a full 360 degrees for close-quarters handling.
What to expect from a motor this small
No water pump to flush or clog is the upside of forced-air cooling, though a motor this size trades outright speed for light weight and easy carrying. Transistor ignition and a centrifugal clutch keep pull-starts simple, provided the fuel stays fresh and the oil mix is correct at each fill.
Common questions
Does starting require a battery? No. Is it rated for saltwater? Yes. What comes in the box? Propeller, manual, and tool kit.
Specifications
| MODEL | BF2.3DHSCH |
| MODEL YEAR | 2017 |
| SKU | BF2.3DHSCH-17 |
| WEIGHT | 29.5000 |
| MANUFACTURER | Honda |
| COUNTRY OF MANUFACTURE | China |
| HORSEPOWER | 2.3hp |
| SHAFT LENGTH | 15″ (Short) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | External |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 57.2 cc (3.49 cubic in) |
| BORE AND STROKE | 45 x 36 mm (1.8 x 1.4 inches) |
| FULL THROTTLE RPM RANGE | 5,000-6,000 RPM |
| IGNITION SYSTEM | Transitorized Pointless |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (86 octane) |
| FUEL TANK / FUEL LINE | .29 US gal (1.1L) |
| OIL TYPE | FC-W 10W-30 |
| OIL CAPACITY | Please inquire. |
| LUBRICATION | Oil Slinger System |
| ALTERNATOR | N/A |
| COOLING SYSTEM | Forced Air |
| SALTWATER RATED | YES |
| GEAR RATIO | 2.42:1 |
| GEAR SHIFT | 360 Degree Pivot |
| PROPELLER | 7-1/4″ Dia. x 4-3/4″ Pitch 3-Blade Polypropylene |
| INTERNAL BATTERY | NO |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
Full terms: 30-day startup warranty · returns
