In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Outboard Motors

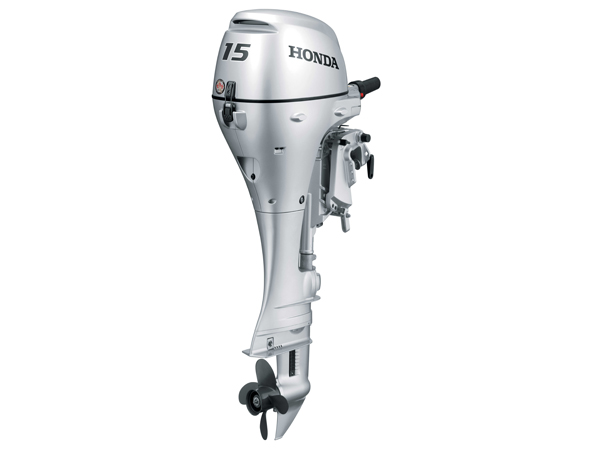

2017 Honda 15 HP BF15D3SHT Outboard Motor
€1,486.75
+ freight from €89.00, insured road freight, priced by delivery region
(rates)
From €1,575.75 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
The 2017 BF15D3SHT is Honda's power-tilt, electric-start, short-shaft 15 hp outboard, carrying the same listed weight as the following year's version and the heaviest among the tiller-steered models in this family.
Specifications
Per Honda's figures, full throttle on this engine runs 4,500 to 5,500 rpm, and the 2.08:1 gearcase covers forward, neutral, and reverse. Count on water cooling plus a saltwater rating for the block, a wet-sump lubrication circuit on FC-W 10W-30 oil, a 12-amp charging alternator, and a factory-mounted propeller with four aluminum blades sized 9¼ by 10 inches.
Power tilt
Power tilt here means raising and lowering the motor at the touch of a switch rather than by hand, paired with electric starting on the shorter of Honda's two shaft options for this engine, built for a lower transom than the long-shaft version. The 350cc, two-cylinder powerhead runs SOHC valve gear with PGM-IG ignition, carbureted from an externally mounted tank that holds 3.2 gallons of fuel. Everything about the powerhead is shared with the rest of this short-shaft family; only the starting method and tilt hardware set the variants apart.
Common questions
What's different from the BF15D3SHS? This model adds power tilt; the SHS version has manual trim and tilt instead.
What propeller is fitted? A four-blade aluminum unit, 9¼ by 10 inches, mounted from the factory.
Specifications
| Model | BF15D3SHT |
| Model Year | 2017 |
| SKU | BF15D3SHT-17 |
| Weight | 130.0000 |
| Manufacturer | Honda |
| Country of Manufacture | Japan |
| Horsepower | 15hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Power Tilt |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 350 cc (21.4 cubic inches) |
| Bore and Stroke | 59 mm x 64 mm (2.3 x 2.5 inches) |
| Full Throttle RPM Range | 4,500-5,500 RPM |
| Ignition System | PGM-IG |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (86 octane) |
| Fuel Tank / Fuel Line | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | FC-W 10W-30 |
| Oil Capacity | Please inquire. |
| Lubrication | Wet Sump |
| Alternator | 12-Amp (148 watt) |
| Cooling System | Water Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Propeller | 9¼ x 10 in 4-Blade Aluminum |
| Internal Battery | NO |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
