In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
JDM Engines
JDM Honda S2000 f20c Engine
€4,024.58
+ freight from €149.00, insured road freight, priced by delivery region
(rates)
From €4,173.58 delivered
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

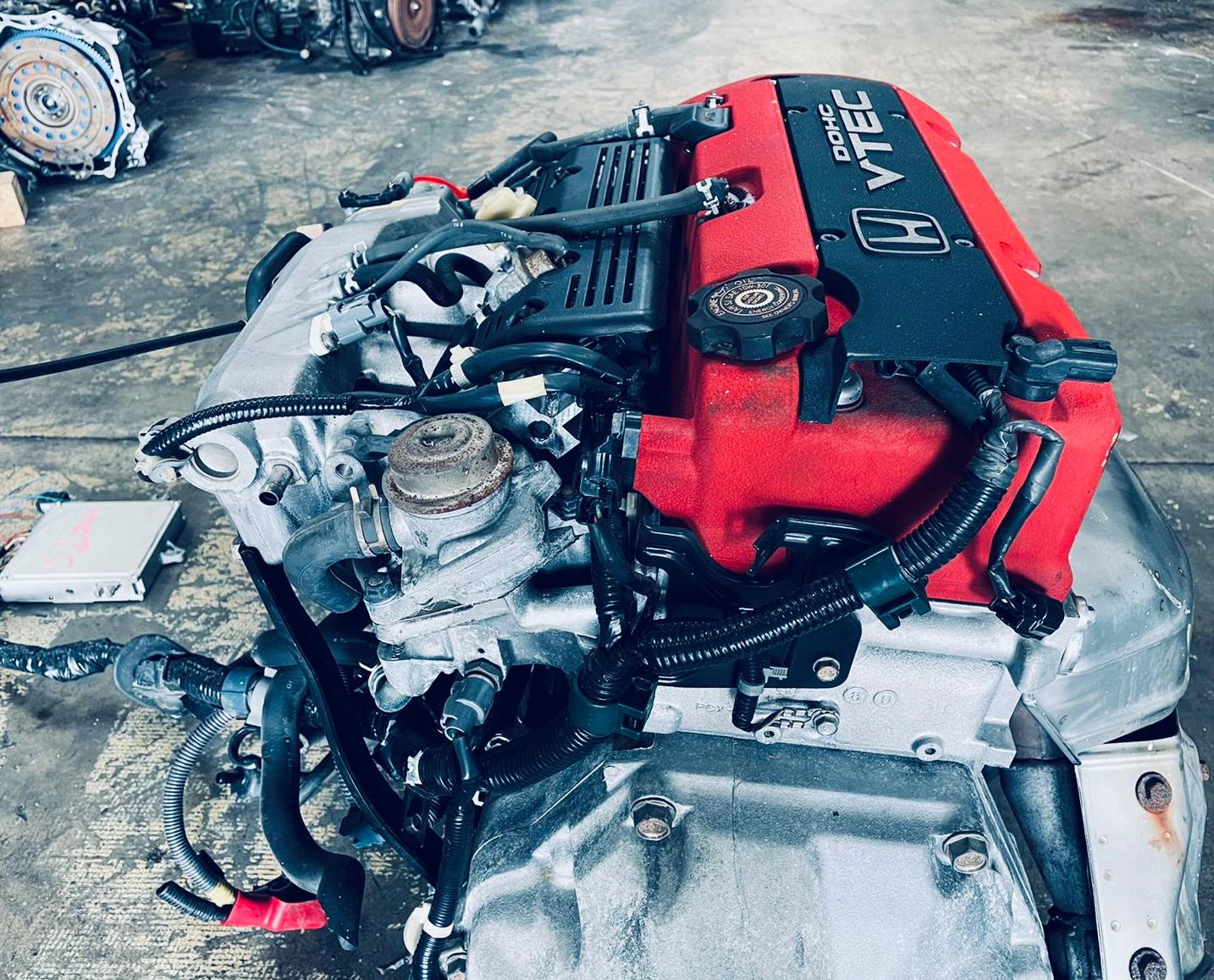

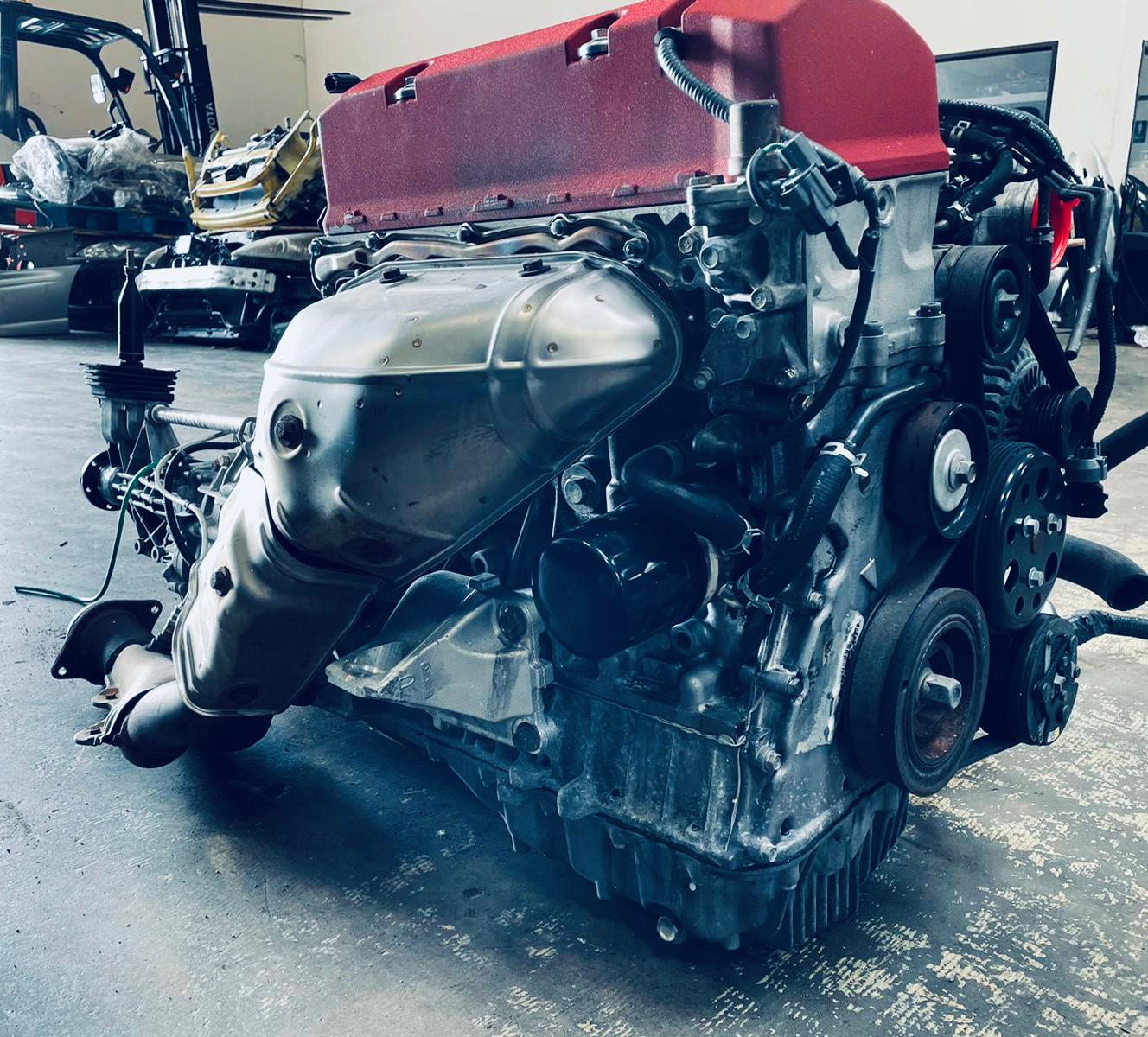

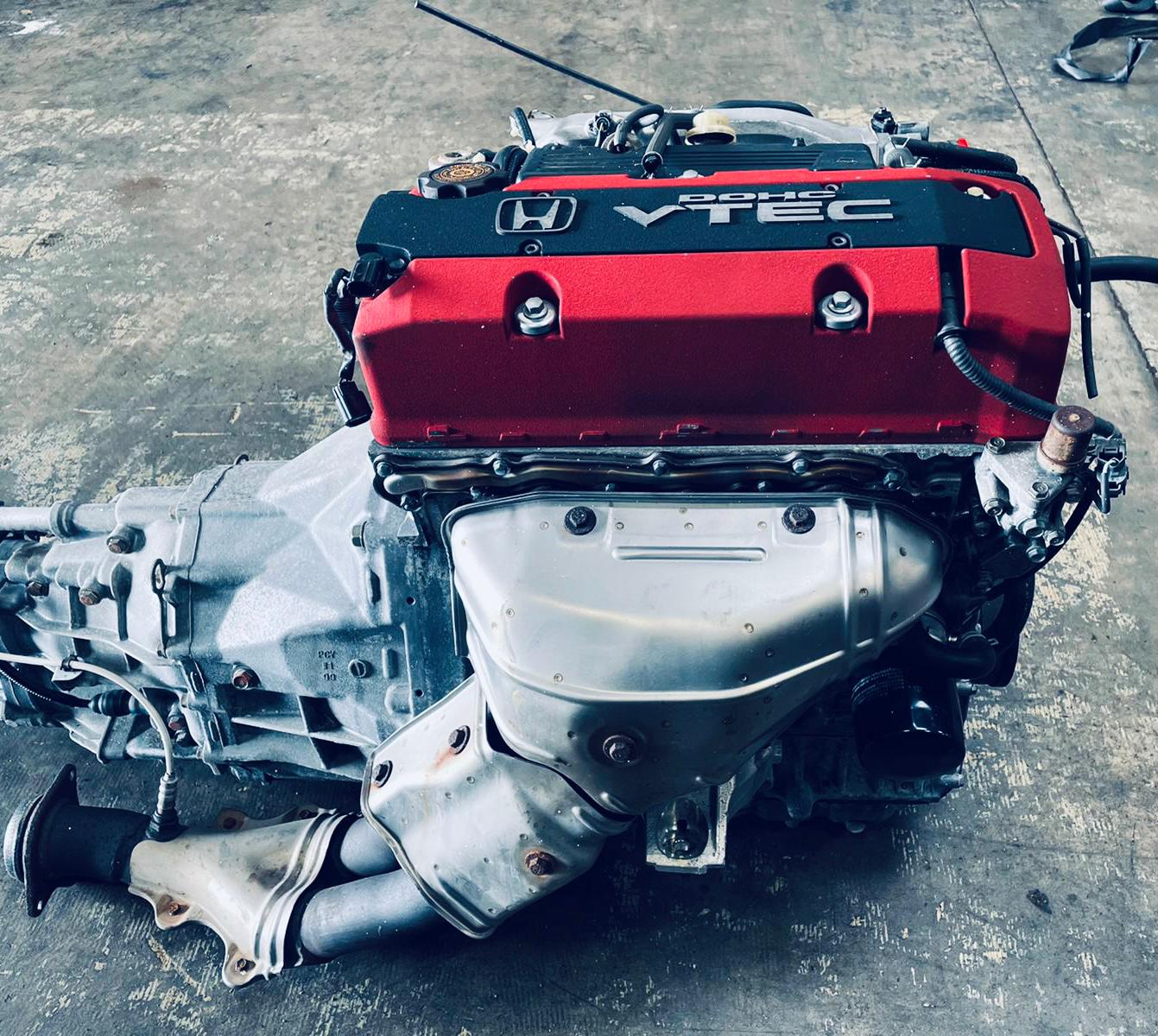

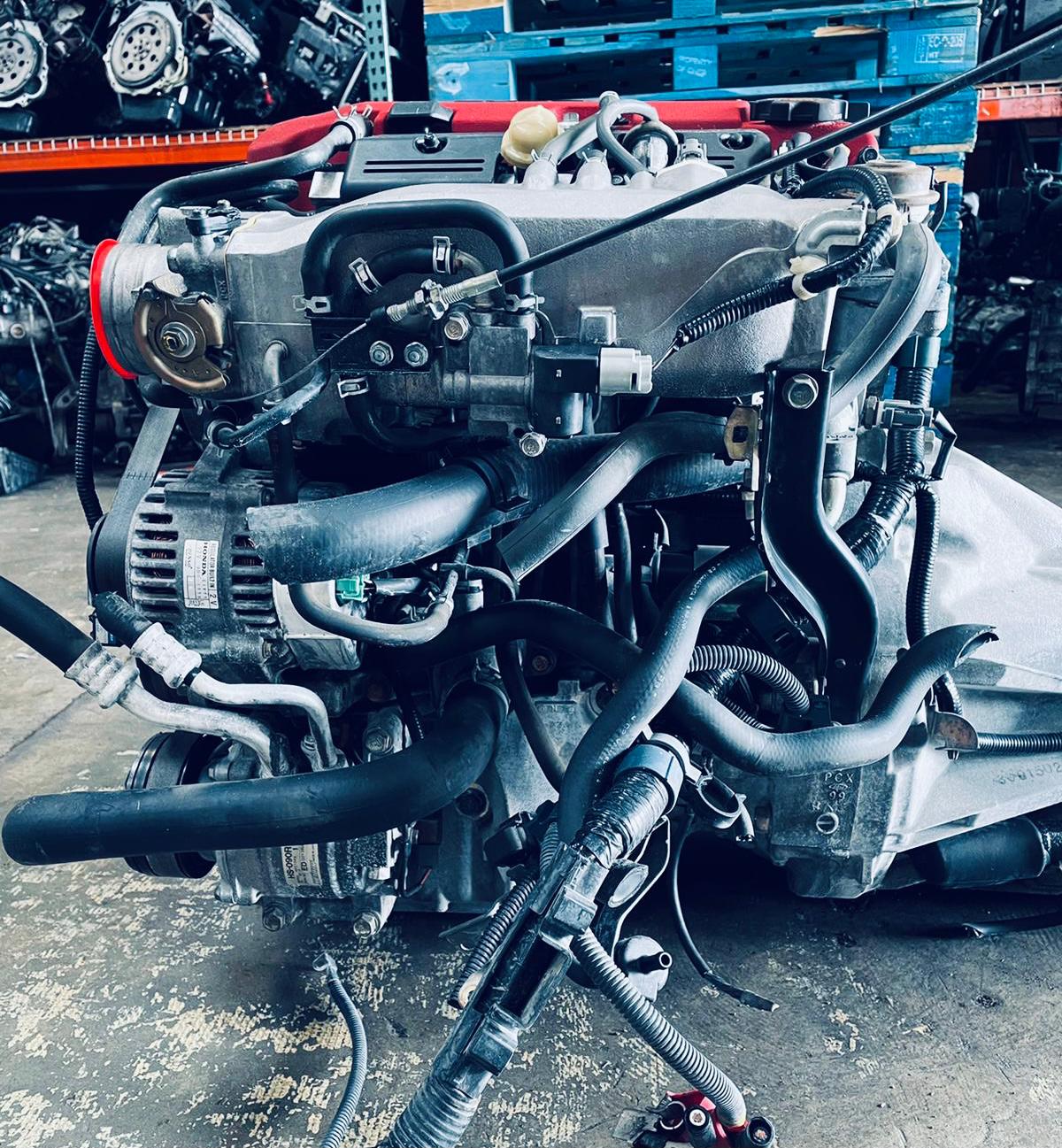

This is a JDM Honda S2000 F20C engine, the inline-4 built specifically for the S2000 when it launched in late 1999, running a compact aluminum block roughly 224 mm tall with an 84 mm piston stroke and FRM-lined cylinder walls.
What's included
This unit comes as a matched engine-out set: the complete head and block, the ECU, the 6-speed transmission with its shifter cables and shifter box, and the intake and exhaust manifolds. Rounding out the accessories pictured with it are the ignition coils, the alternator, the power steering pump, the fuel injectors, the AC compressor and the fuel rail.
What makes this engine distinct
The F20C is known for an unusually high 8,900 RPM redline for a production engine, the main reason it's sought out over other naturally aspirated four-cylinders of similar displacement; factory output, torque and compression figures vary by model year across this engine's production run.
Who it suits
Because the ECU, 6-speed transmission and shifter assembly are included as a matched set, it suits an S2000 engine-out rebuild or a swap project where keeping the factory drivetrain together matters more than sourcing a transmission separately.
Common questions
Does it include the transmission? Yes, the 6-speed manual transmission, shifter cables and shifter box are included.
What's the redline on this engine? 8,900 RPM, unusually high for a naturally aspirated production four-cylinder.
Specifications
| Manufacturer | Honda Motor Company |
| Also called | Honda F20 |
| Production | 1999-2009 |
| Cylinder block alloy | Aluminum |
| Configuration | Inline-4 |
| Valvetrain | DOHC 4 valves per cylinder |
| Piston stroke, mm (inch) | 84 (3.31) |
| Cylinder bore, mm (inch) | 87 (3.43) |
| Compression ratio | 11.0 11.7 |
| Displacement | 1998 cc (121.9 cu in) |
| Power output | 176 kW (240 HP) at 8,300 rpm 183 kW (250 HP) at 8,300 rpm |
| Torque output | 208 Nm (153 lb·ft) at 7,500 rpm 218 Nm (161 lb·ft) at 7,500 rpm |
| Redline | 8,900 |
| HP per liter | 120 125 |
| Fuel type | Gasoline |
| Weight, kg (lbs) | – |
| Fuel consumption, L/100 km (mpg) -City -Highway -Combined | Honda S2k 13.9 (17) 7.8 (30) 10.0 (23.5) |
| Turbocharger | Naturally aspirated |
| Oil consumption, L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 0W-40 5W-30 5W-40 5W-50 10W-30 10W-40 |
| Engine oil capacity, L (qt.) | 4.8 (5.1) |
| Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
| Normal engine operating temperature, °C (F) | – |
| Engine lifespan, km (miles) -Official information -Real | – 300,000+ (180,000) |
| Tuning, HP -Max HP -No life span loss | 600+ – |
| The engine is installed in | Honda S2000 |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
Full terms: 30-day startup warranty · returns
