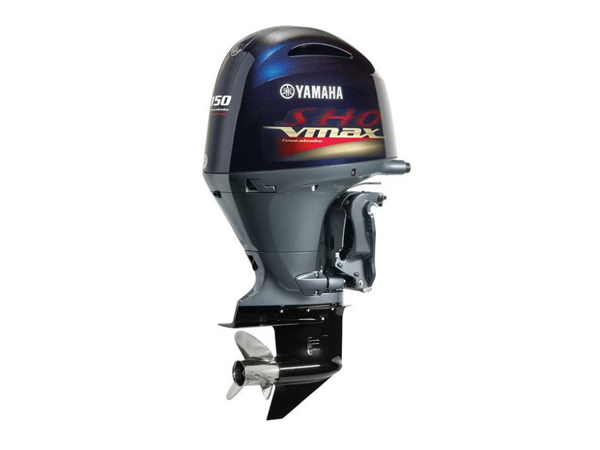

2017 Yamaha VF150X VMAX SHO Outboard Motor

This 2017 Yamaha VF150X is the base trim of Yamaha's in-line four V MAX SHO, new, rated 150 HP at 5,500 RPM from a 2.8-liter four-cylinder. Where the XA trim adds certain convenience features, this base build keeps the same core engine at a simpler spec level.

Engine architecture

Double overhead camshafts work four large-radius valves per cylinder, and variable camshaft timing shifts the intake-cam angle to help response across everyday RPM rather than only at full throttle. A long-track induction system paired with four injectors keeps breathing efficient across the 16-valve head.

Specs to match to your boat

Shaft length is 20 inches and dry weight is 489 lbs, so check transom height and rigging capacity against those figures before ordering. Gear ratio is 2.0:1 and compression sits at 10.3:1; the alternator puts out 50 amps.

Does it have electric start? Electric start with power trim and tilt.

What fuel does it need? Regular unleaded, rated for up to a 10 percent ethanol blend.

What is the degree of tilt and trim? Tilt reaches 70 degrees, trim adjusts from -4 to +16 degrees.

Lubrication is wet-sump, cooling is thermostatically controlled, and the motor carries a C.A.R.B. three-star rating. Coverage is three years pleasure, three years government, one year commercial, matching Yamaha's standard outboard terms.
