In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Outboard Motors

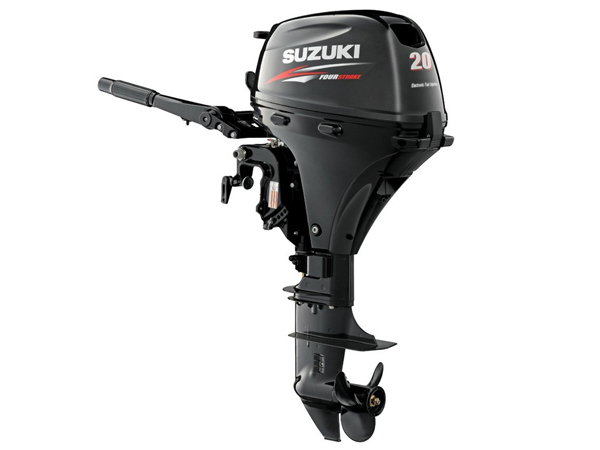

Suzuki 20 HP DF20ATHL2 Outboard Motor
€1,640.26
Freight included, insured road freight within the UK & Europe
(rates)
€1,640.26 delivered across UK & Europe
- ISPM 15 heat-treated Euro palletized & weatherproof shrink-wrapped
- Insured European road freight delivery with hydraulic tail-lift service
- Dispatches in 1–2 business days from our UK & European Logistics Centre
- Transit typically 1–3 business days (UK) / 3–6 business days (Continental Europe)
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
The DF20ATHL2 brings power tilt to Suzuki's 20 HP engine, trading the manual trim lever for a powered switch, matched to large or heavy jon boats and skiffs that need the extra reach of a long shaft.
What makes this version different
A powered tilt mechanism, adjustable through locking pin positions, helps most on heavier hulls where the motor needs raising and lowering often, which is the main thing separating this from the base 20 HP models. Standard tiller steering and electric starting carry over unchanged, and the propeller keeps a 3-blade design, cut to 10.25 inches in diameter with a 9.0-inch pitch.
Under the cowling
Digital CDI handles ignition timing, with a 145-watt alternator wired in to support the electric starter and a 3.1-gallon tank feeding fuel through its own hose.
Common questions
How does the tilt switch help day to day? It saves cranking a lever by hand every time the motor needs raising for shallow water or trailering.
What boats suit this motor? Larger or heavier jon boats and skiffs, along with sailboat auxiliary and trolling duty.
A manual, tool kit, and Suzuki's 3-year warranty round out the package, matching the coverage on the rest of this engine's lineup. Owners who tilt the motor up for beaching or trailering several times a trip tend to notice the switch's convenience fastest.
Specifications
| Model | DF20ATHL2 |
| Model Year | No |
| SKU | DF20ATHL2-17 |
| Weight | 123.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 20hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Power Tilt |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 327 cc (20.0 cubic inches) |
| Bore and Stroke | 60.4 x 57 mm (2.38 x 2.24 inches) |
| Full Throttle RPM Range | 5000-6000 RPM |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| Oil Type | SAE 10W-30 or SAE 10W-40 |
| Oil Capacity | 33.8 fl oz. (1000 mL) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | 12V 145W 10A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
| Propeller | 3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch |
| Internal Battery | No |
Startup & Installation Checklist
- Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
- Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
- Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
- Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.
Full terms: 30-day startup warranty · returns
