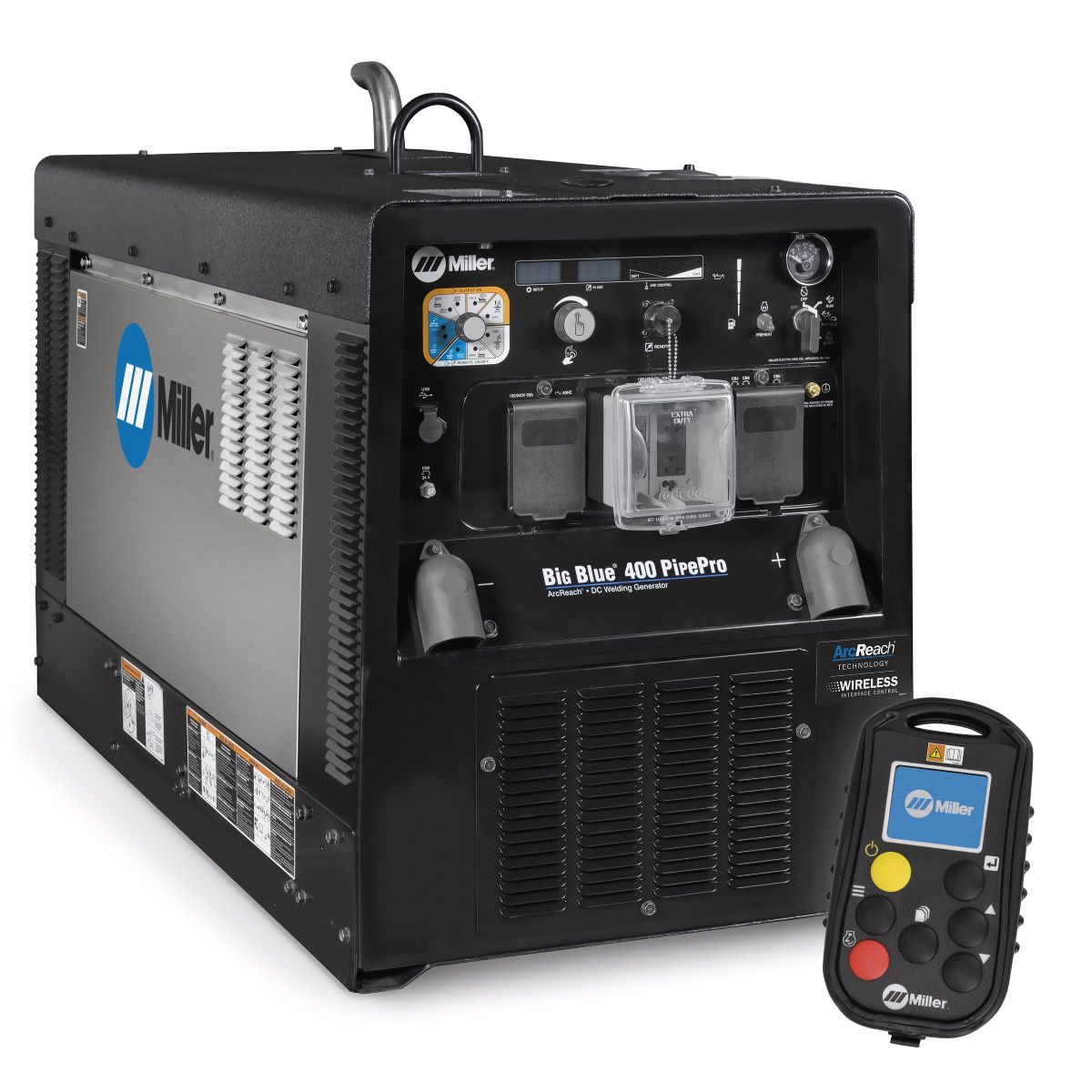

Miller Big Blue 400 Pipepro Mitsubishi Stainless Welder/Generator W/Wic (907805)

This Big Blue 400 PipePro configuration pairs a Mitsubishi diesel engine with a stainless build, aimed at pipe crews who need 400 amps of clean DC output and a machine that can take weather and road grime without panels rusting through. Dynamic DIG technology sets it apart from a conventional DIG circuit: instead of a fixed short-clearing current, a time-based algorithm adjusts the current needed to clear a short as the arc changes, which smooths out the bead on pipe root passes.

Control without a trip to the machine

Pairing it with an ArcReach feeder or Stick/TIG remote lets the operator change weld settings from that remote point, using the existing weld cable to carry the control signal instead of running a separate control cord. That removes a cable, along with the cost and failure points that come with it, from the setup.

On the control panel

SunVision-readable digital meters sit next to an industrial USB port, with adjustable hot start and automatic engine idle handling cold starts and idle fuel use on their own. A 120V block heater, a low open-circuit-voltage Stick setting, and thermal overload protection round out the safeguards, and a 14-pin receptacle plus a rust-resistant HD powder coat finish cover the connections and the cabinet itself.

Miller rates the duty cycle at 100% at 400 amps, suited to Career Welder-level heavy industrial work, and at 1,000 lbs it is built to mount on a truck bed or trailer rather than move by hand. A manufacturer's warranty is included.

Why the stainless build on this configuration? It is built to resist corrosion on jobs where the machine stays outdoors through weather. Does it need a special remote to use ArcReach? Pairing with an ArcReach feeder or Stick/TIG remote unlocks the feature; it still runs as a standard power source without one.

Specifications
