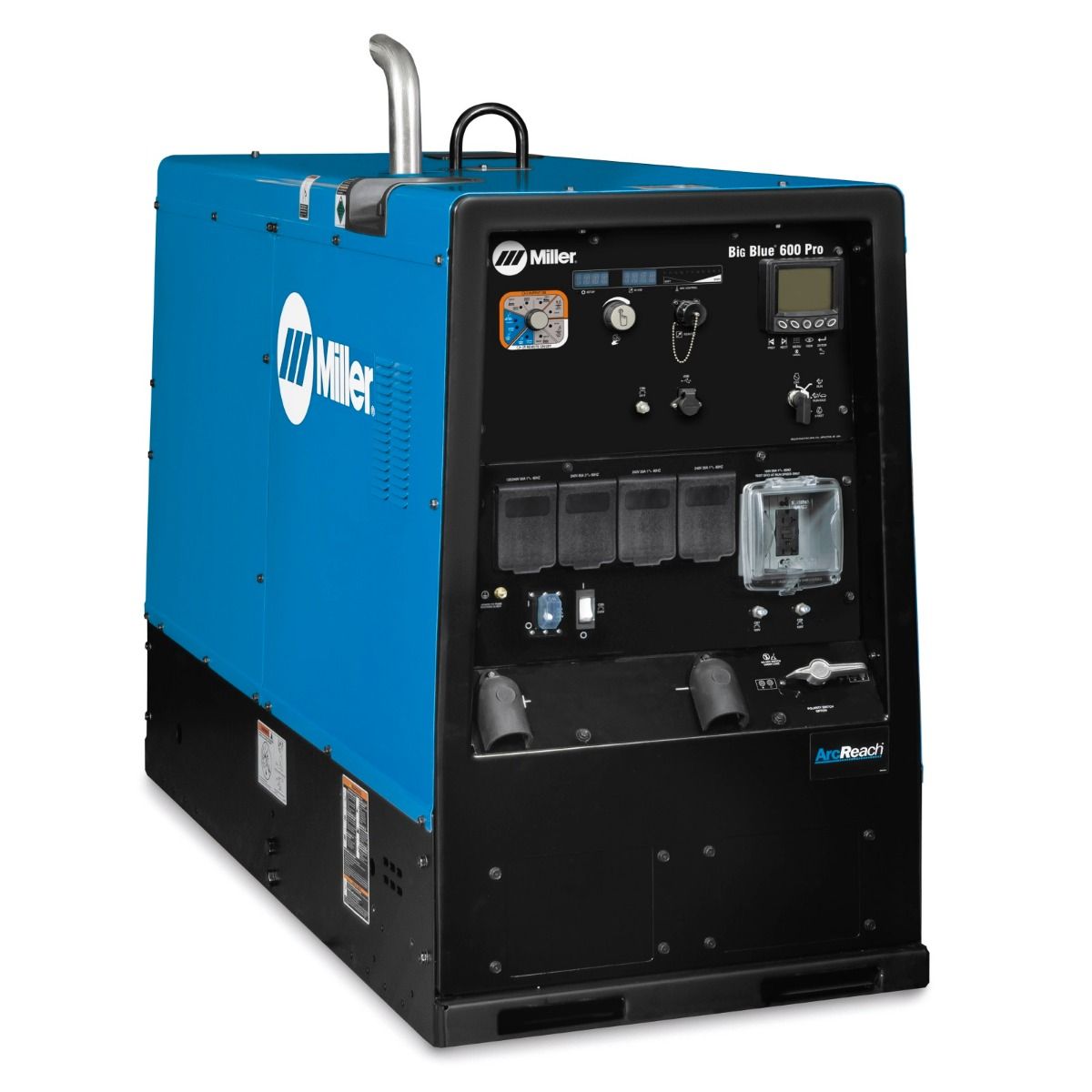

Big Blue 600 Pro Kubota Deluxe W

This is the deluxe build of the 600-amp Kubota diesel welder/generator in this lineup, pairing the same 600-amp DC output and duty cycle rating with three extras the plain version skips: ArcReach remote control, a switch to reverse polarity, and a lockout kit against vandalism.

Deluxe features explained

With ArcReach, weld settings can be changed from the feeder instead of requiring a trip back to the power source, which is most useful on a large site where the machine sits well away from the arc. The lockout kit is meant to protect a machine left unattended on an open jobsite, and the polarity-reversing switch adds process flexibility the base model does not have.

Engine and build specification

• The Kubota diesel is Tier 4 compliant using a catalyst-based exhaust system that does not require separate servicing
• At 500 amps duty cycle holds at 100 percent; push to the full 600-amp rating and it drops to 40 percent
• Single-phase output is rated 15,000 watts, with three-phase service raising that to 27,000 watts peak
• Shipping weight is 1,750 pounds, and this new unit carries Miller's 3-year coverage

A combined gauge display handles engine monitoring and service-interval tracking on one screen, the same setup used across this diesel lineup.

Does the deluxe version weigh more than the base model? No, both are listed at the same 1,750-pound shipping weight.

Can I run this on single-phase power alone? Yes, generator output is rated to 15,000 watts on single phase.
